Cisco IE 3010 User Manual

35
Switch Installation
Installing and Removing SFP Modules

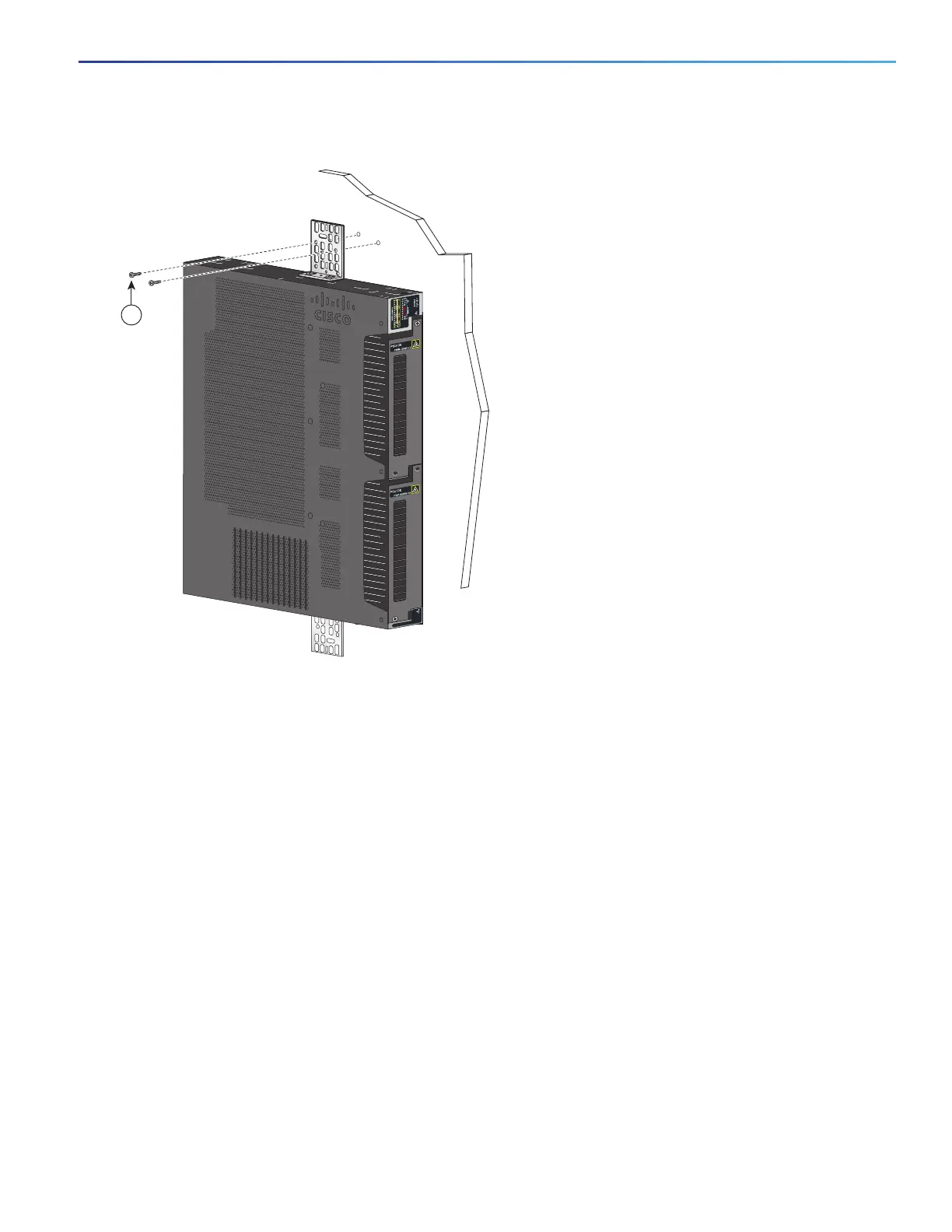

Figure 24 Wall-Mounting the Cisco IE-3010-16S-8PC
After the switch is mounted on the wall:
 Wire the switch to a power source. See Power Supply Installation, page 47
 For configuration instructions about using the CLI setup program, go to Configuring the Switch with the CLI Setup
Program, page 81
 Connect the switch ports. See the Connecting Devices to the Ethernet Ports, page 44.
Installing and Removing SFP Modules
This section presents procedures to install and remove fiber-optic and 1000BASE-T SFP transceiver modules.
Installing SFP Modules
These sections describe how to install and remove SFP modules. SFP modules are inserted into SFP module slots on the
front of the switch. Field-replaceable SFP modules provide the uplink interfaces, send (TX) and receive (RX).
You can use any combination of rugged SFP modules. See Table 2 on page 8 for a list of supported modules. Each SFP
module must be of the same type as the SFP module on the other end of the cable, and the cable must not exceed the
stipulated cable length for reliable communications. See Table 20 on page 74 for cable stipulations for SFP module
connections.
Cisco
Switch 2500 Series
Connected Grid
207557
1
