52
Power Supply Installation
Power-Supply Module Installation

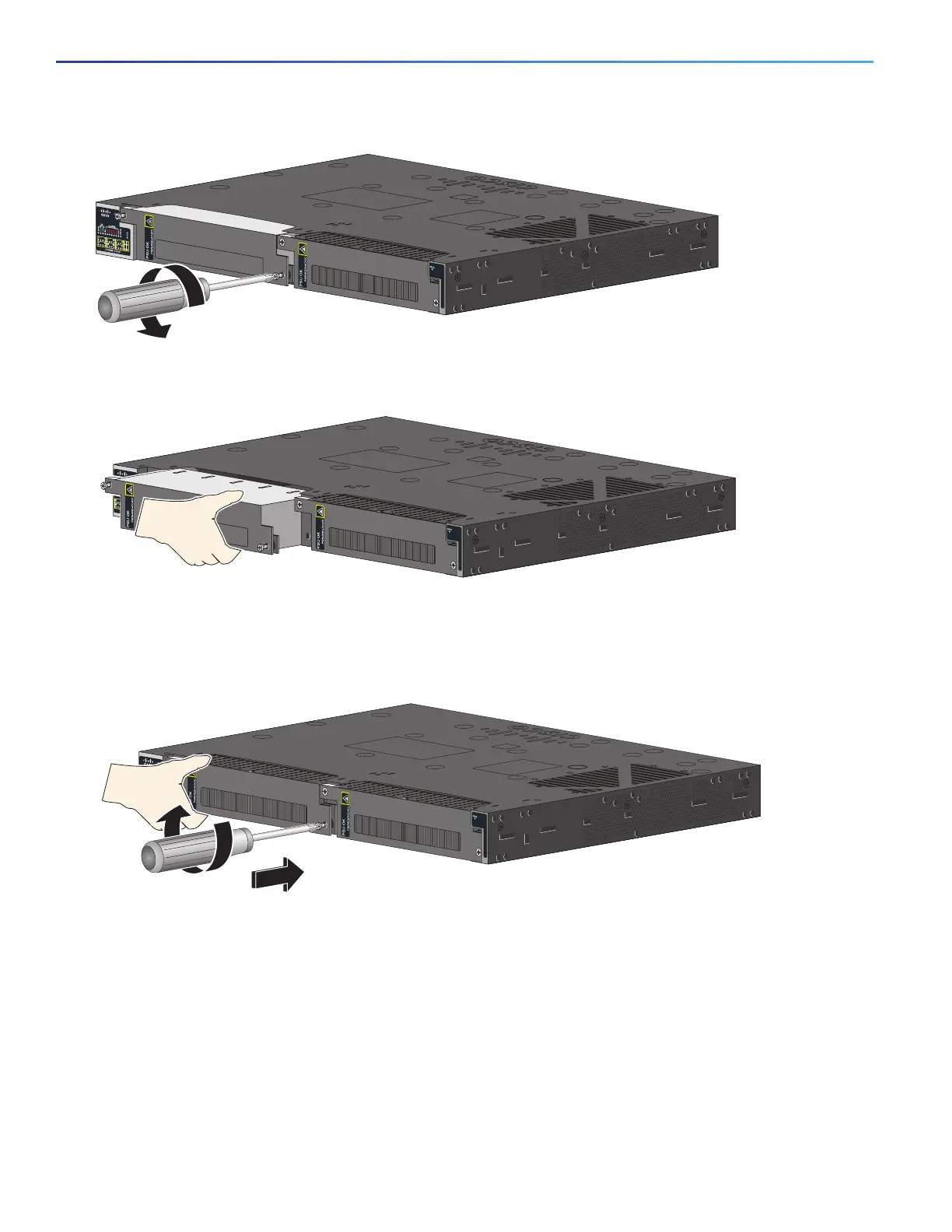

Figure 41 Loosen the Screws on the Power Supply Blank
Figure 42 Remove the Power Supply Blank
3. Insert the power-supply module into the slot, and gently push it in. See Figure 43 on page 52.
Note: Ensure that the power supply module is flush with the switch.
Figure 43 Insert the Power-Supply Module
4. Use a ratcheting torque screwdriver to torque each screw to 8–10 in-lb.
Wiring the Power Source
Before you wire the power source, review these warnings:
Warning: This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than:
 AC: 5 A, DC: 15 A Statement 1005
Warning: A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Cisco IE 3010
Sw itch Series
208382
Cisc o Connected Grid
Sw itc h 2500 Series
208383
208377
