Power Supply Installation
Power-Supply Module Installation
For power source connections, use wires rated for at least 194°F (90°C).
UL- and CSA-rated style 1007 or 1569 twisted-pair copper wire (such as Belden part number 9318)
Wire-stripping tools for stripping 6-, 10-, 12-, 14-, and 16-gauge wires.
Number-2 Phillips screwdriver
Flat-blade screwdriver
Grounding the Switch
Follow the grounding procedures at your site and observe these warnings:
Warning: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected
last. Statement 1046
Caution: Follow the grounding procedure instructions, and use a UL-listed lug (included with the switch) for
number-6 AWG wire and 10-32 ground-lug screws.
Note: You can use the grounding lug to attach a wrist strap for ESD protection during servicing.
Follow these steps to install a dual-hole lug on the switch. Be sure to follow any grounding requirements at your site.
1. Use a Phillips screwdriver or a ratcheting torque screwdriver with a Phillips head to remove the ground screw from
the cable side of the switch. You need the screw in Step 4.
2. Strip the 6-gauge ground wire to 0.5 inch (12.7 mm) ± 0.02 inch (0.5 mm). See Figure 38 on page 50. Stripping
more than the recommended amount of wire can leave exposed wire from the connector.

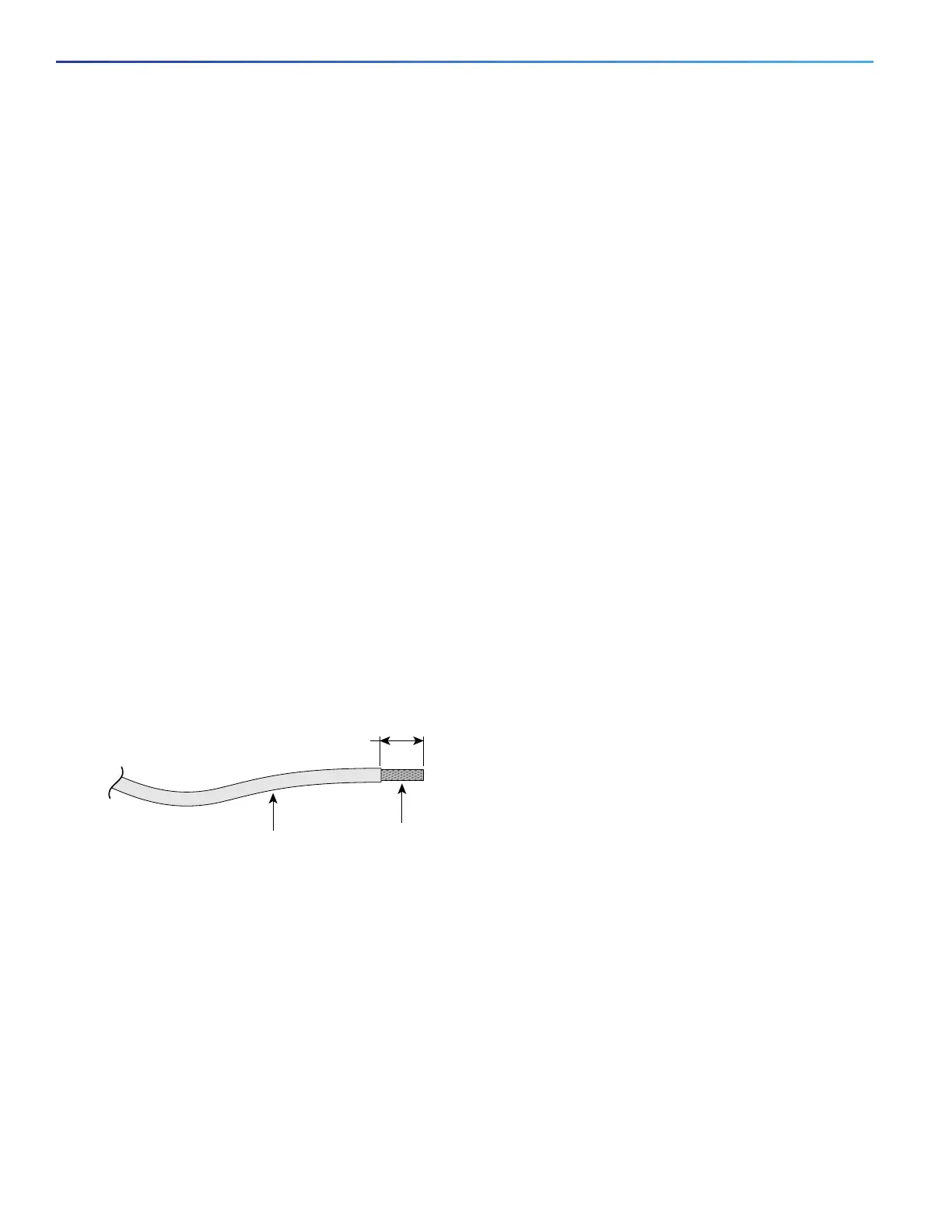

Figure 38 Stripping the Ground Wire
3. Insert the ground wire into the terminal lug, and crimp the terminal to the wire. (see Figure 39 on page 51).
Insulation
Wire lead
0.5 in. (12.7 mm)
±
0.02 in. (0.5 mm)
60528
