Product Overview
Cable Side
For minimum software requirements, refer to the Release Notes for your platform.
For the most up-to-date list of supported SFP models for Cisco Industrial Ethernet switches, see
http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6981.html#wp1
38176
For information about SFP modules, see your SFP module documentation and the Installing and Removing SFP Modules,
page 35. For cable specifications, see the SFP Module Cables, page 74.
SFP Module Patch Cable
The switch uses an SFP-module patch cable, a 0.5-meter, copper, passive cable with SFP module connectors at each
end (see Figure 3 on page 9). The patch cable connects two switches in a cascaded configuration.

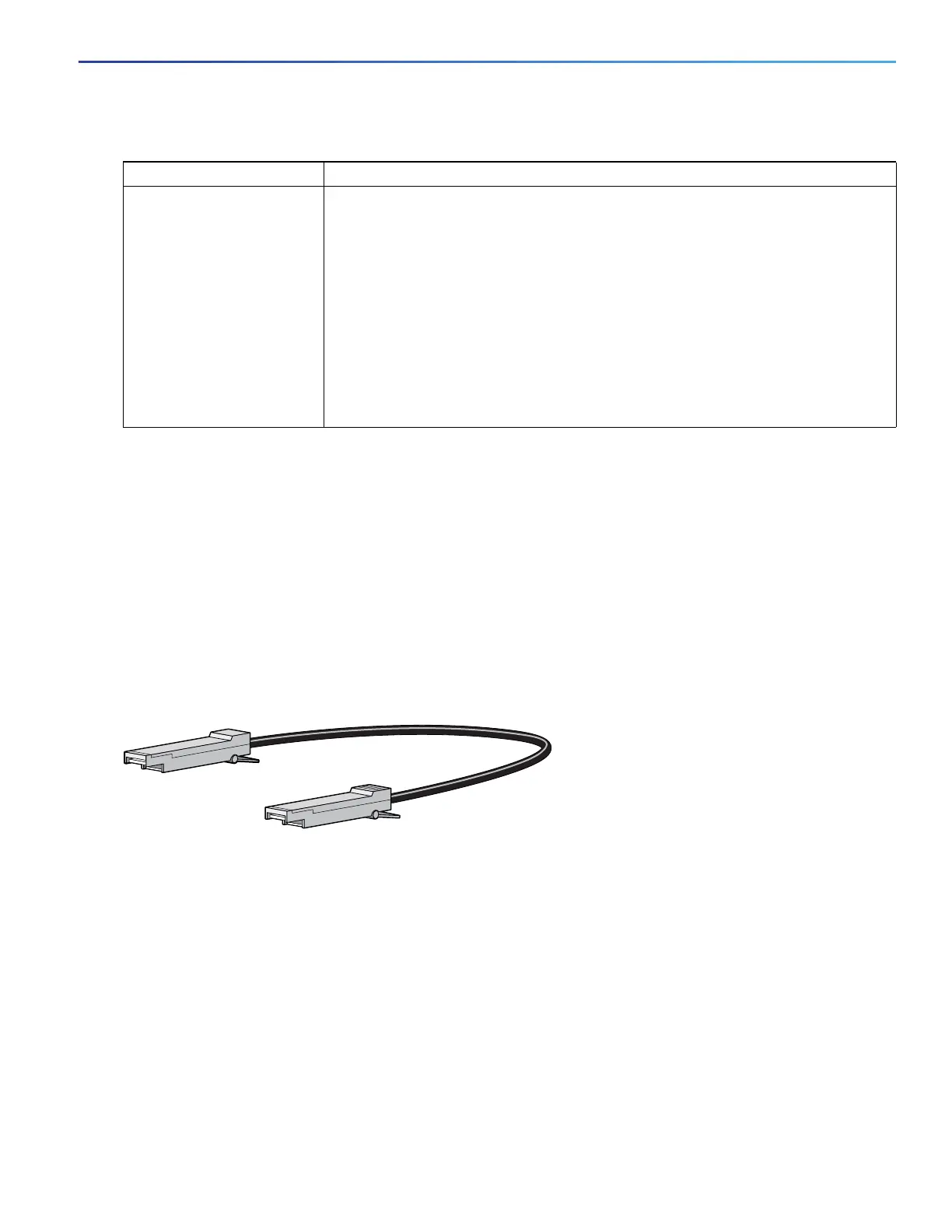

Figure 3 SFP-Module Patch Cable
See the Inserting and Removing the SFP Module Patch Cable, page 40 for information about using the SFP module
patch cable.
You can order this cable (part number CAB-SFP-50CM=).
Power-Input Terminal
The power-input terminal provides screw terminals for the AC and DC power connections. The switch can operate with
one or two power supplies. If one of the power sources fail, the other continues to power the switch. See Power Supply
Installation, page 47 for information.
Extended temperature SFPs
23 to 185°F (-5°C to 85°C)
 SFP-GE-L with DOM support
 SFP-GE-S with DOM support
 SFP-GE-T
 SFP-GE-Z with DOM support
 GLC-LH-SMD with DOM support
 GLC-EX-SMD with DOM support
 GLC-TE
 GLC-ZX-SMD with DOM support
Table 2 SFP Modules Maximum Operating Temperature (continued)
Type of SFP Module Model
126809

Cisco IE 3010 Specifications
