For NEC-compliant grounding, use size 14 AWG (1.6mm) or larger copper wire and a ring terminal
with an inner diameter of 1/4 in. (5 to 7 mm).
•
For EN/IEC 60950-compliant grounding, use size 18 AWG (1.02mm) or larger copper wire.
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning
This equipment needs to be grounded. Use a green and yellow 14 to 18 AWG ground wire to connect the
host to earth ground during normal use. Statement 242
Warning

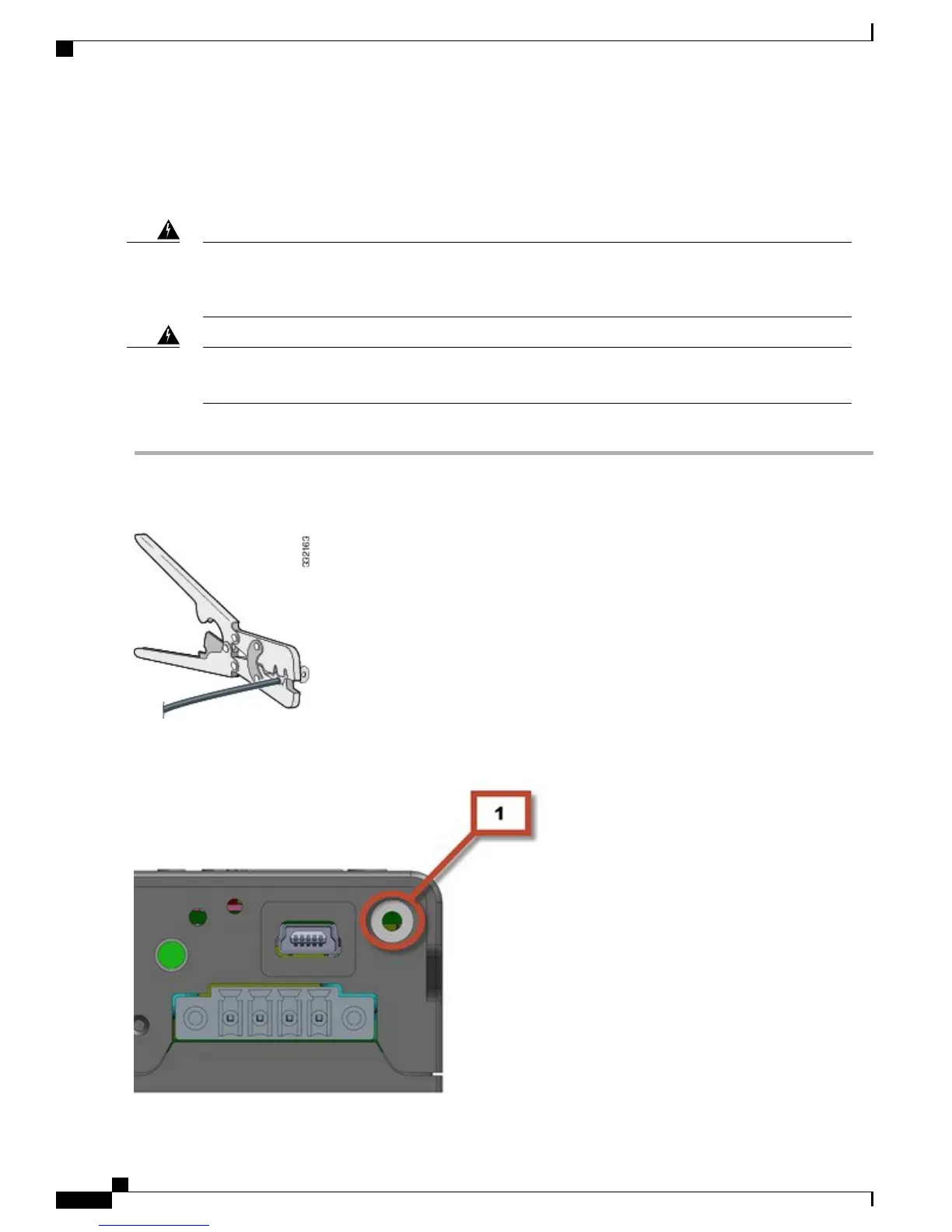

Step 1
Locate the ring terminal lug and screw in the packaging kit. Store the ground screw for later use.
Step 2
Use a wire stripping tool to strip the 14-16 AWG (1.6mm -to- 1.3mm) grounding wire to 0.22 in. (5.56 mm).
Step 3
Insert the ground wire into the ring terminal lug, and using a crimping tool, crimp the terminal to the wire.
Step 4
Slide the ground screw through the ground lug.
Step 5
Insert the ground screw into the grounding point shown in the graphic.
Cisco 809 Industrial Integrated Services Router Hardware Installation Guide
10
Installing the Router
Installing the Router Ground Connection
