Cisco IR809 Installation Instructions

Step 2

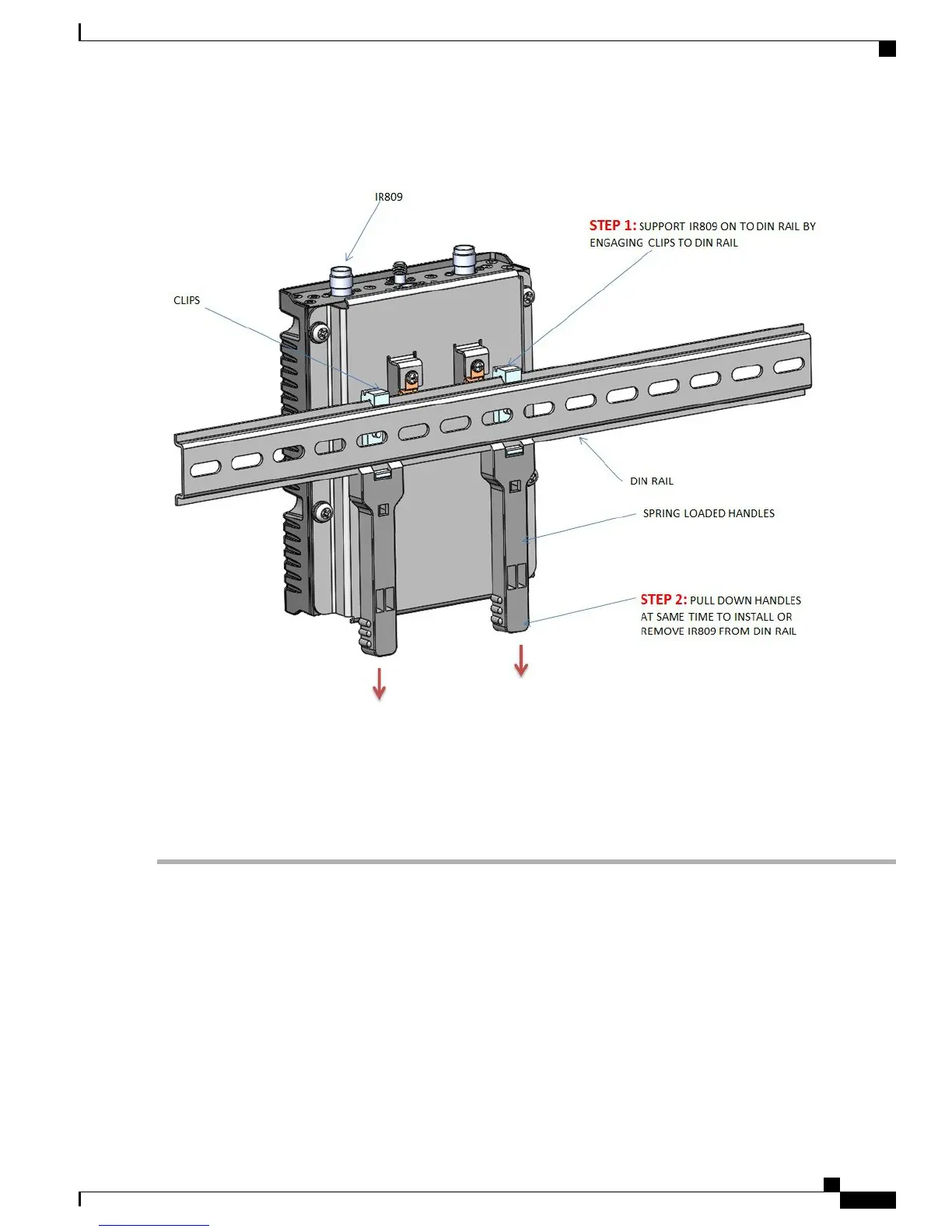

Once the bracket is attached to the router, it can be mounted onto the DIN Rail. See the following figure.
Step 3
Position the router so that the hook on the DIN rail bracket hooks onto the top edge of the DIN rail. The weight of the
product can rest on the hook temporarily while the DIN rail bracket latches are secured.
Step 4
Pull down the spring loaded handles at the same time and slide the DIN Rail bracket up and over the latches.
Step 5
Push the DIN rail bracket latch up after the router is over the DIN rail to secure it. The router is now installed in the DIN
rail.
Step 6
To remove the router from the DIN Rail, simply reverse the procedure.
Installing the Router Ground Connection
To install the ground connection, follow these steps:
Before You Begin
The router must be connected to a reliable earth ground. Install the ground wire in accordance with local
electrical safety standards.
Cisco 809 Industrial Integrated Services Router Hardware Installation Guide
9
Installing the Router
Installing the Router Ground Connection
