Cisco IR829 Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Router

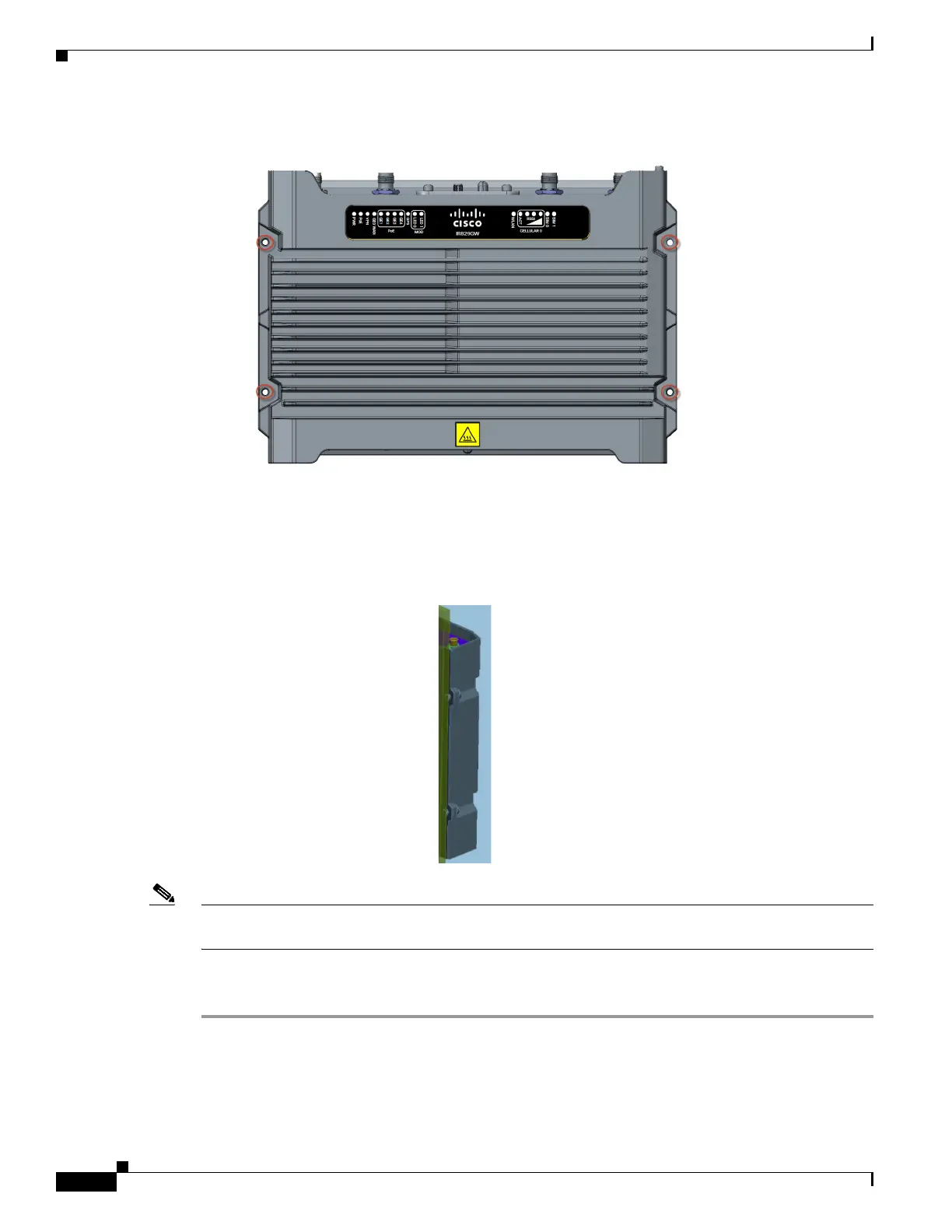

Figure 2-3 Cisco IR829 Mounting Holes
Step 2 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10
washers or two number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0
inch (25.4 mm) into the supporting wood or metal wall stud. (See
Figure 2-4.)
Figure 2-4 Mounted to wall
Note For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and
washers must be size number 10.
Step 3 Route the cables so that they do not put a strain on the connectors or mounting hardware. Cables should
be routed down relative to the router to prevent water from traveling on the cables.
