Chapter 5 Configuring Zones and Zone Sets
Configuring Zones
This chapter includes the following sections:
• Configuring Zones, page 5-2
• Creating Zone Sets, page 5-4
• What’s Next?, page 5-7
Configuring Zones
Zones are configured within VSANs. The Logical tab displays the VSANs configured in the currently
discovered fabric. Note that zone information must always be identical for all the switches in the network
fabric. You can configure up to 8K zones in a VSAN.
To configure pWWN-based zones using the Zone configuration tool, follow these steps:
Step 1 Click the Edit Local Full Zone Database icon as shown in Figure 5-2.

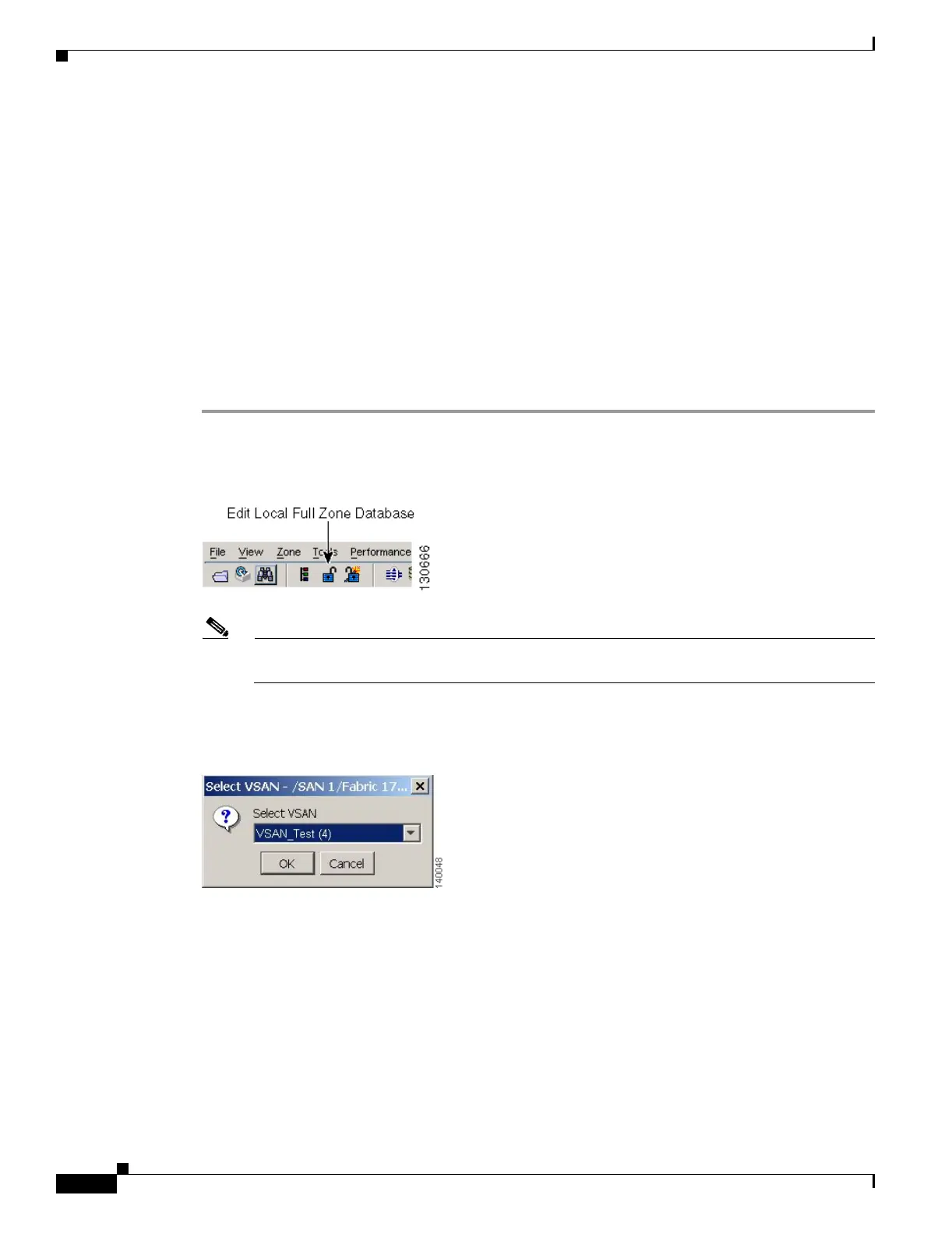

Figure 5-2 Edit Local Full Zone Database
Note For details about the icons and buttons used in Fabric Manager, see Appendix A, “Fabric
Manager Client.”
You see the Select VSAN dialog box. (See Figure 5-3.)
Figure 5-3 Select VSAN
Step 2
Select the VSAN where you want to configure zones or zone sets, or add members to a zone. (See
Figure 5-3.) Click OK.
