The information for both fabrics is displayed, with no need to select a seed switch. To see details of a
fabric, select the tab for that fabric at the bottom of the Fabric pane, or double-click the cloud icon for
the fabric in the All Fabrics tab.
Contents Panes
The following sections describe the panes in the Fabric Manager view. You can resize each pane by
dragging the boundaries between each region or by clicking the Minimize or Maximize controls.
Fabric Pane

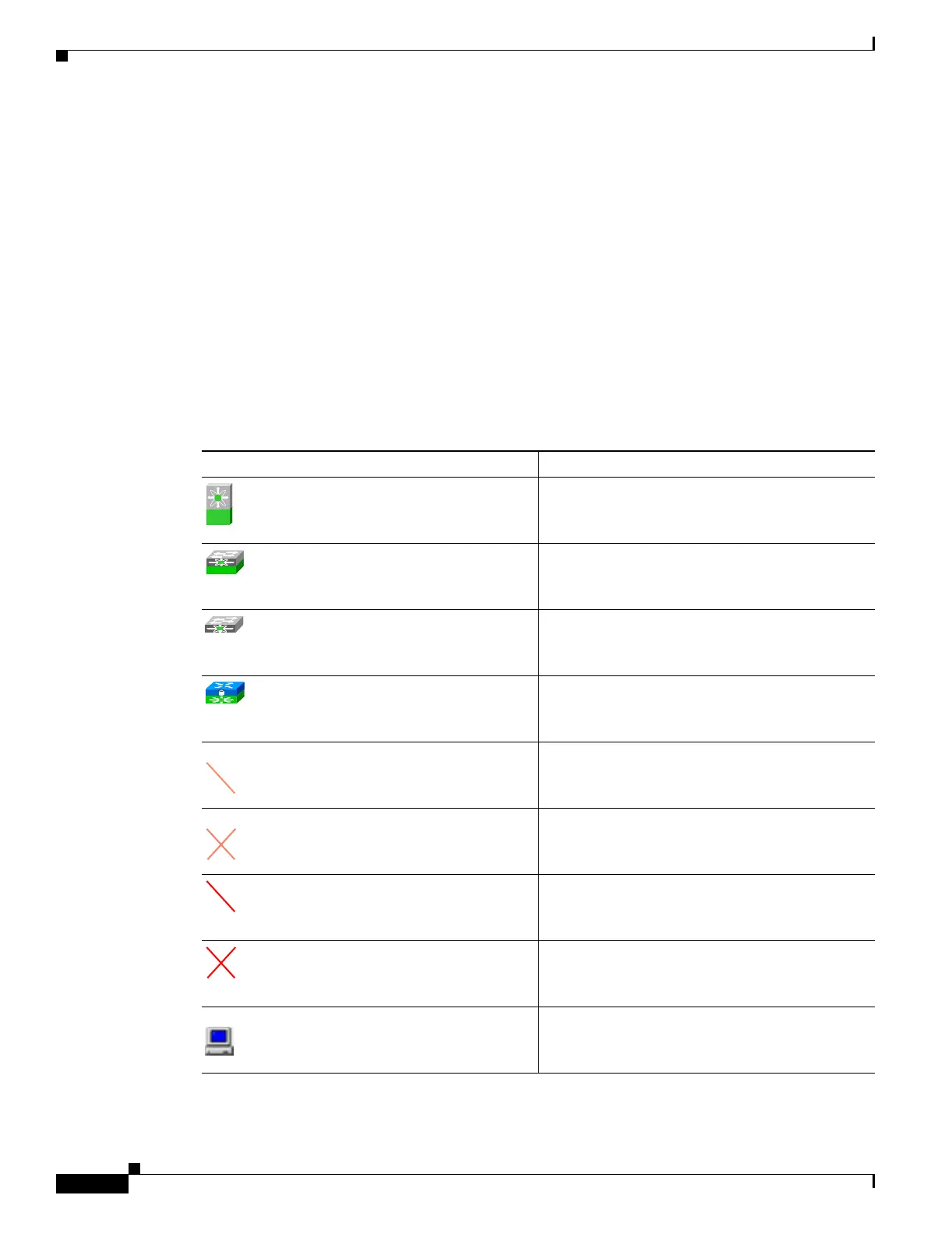

The Fabric pane shows the graphical representation of your fabric. Table A-1 explains the graphics you
may see displayed, depending on which devices you have in your fabric.
Table A-1 Fabric Manager Graphics
Icon or Graphic Description
Director class MDS 9000 switch.
Non-director class MDS 9000 switch.
Generic Fibre Channel switch.
Cisco SN5428.
An orange line through a device indicates that the
device is manageable but there are operational
problems.
An orange X through a device or link indicates
that the device or ISL is not working properly.
A red line through a device indicates that the
device is not manageable.
A red X through a device or link indicates that the
device is down or that the ISL is down.
Fibre Channel HBA (or enclosure).
iSAN
