Cisco ME 3400E Ethernet Access Switch Hardware Installation Guide
OL-16447-01
Chapter 2 Switch Installation
Installing the Switch
Cisco ME 3400EG-12CS-M

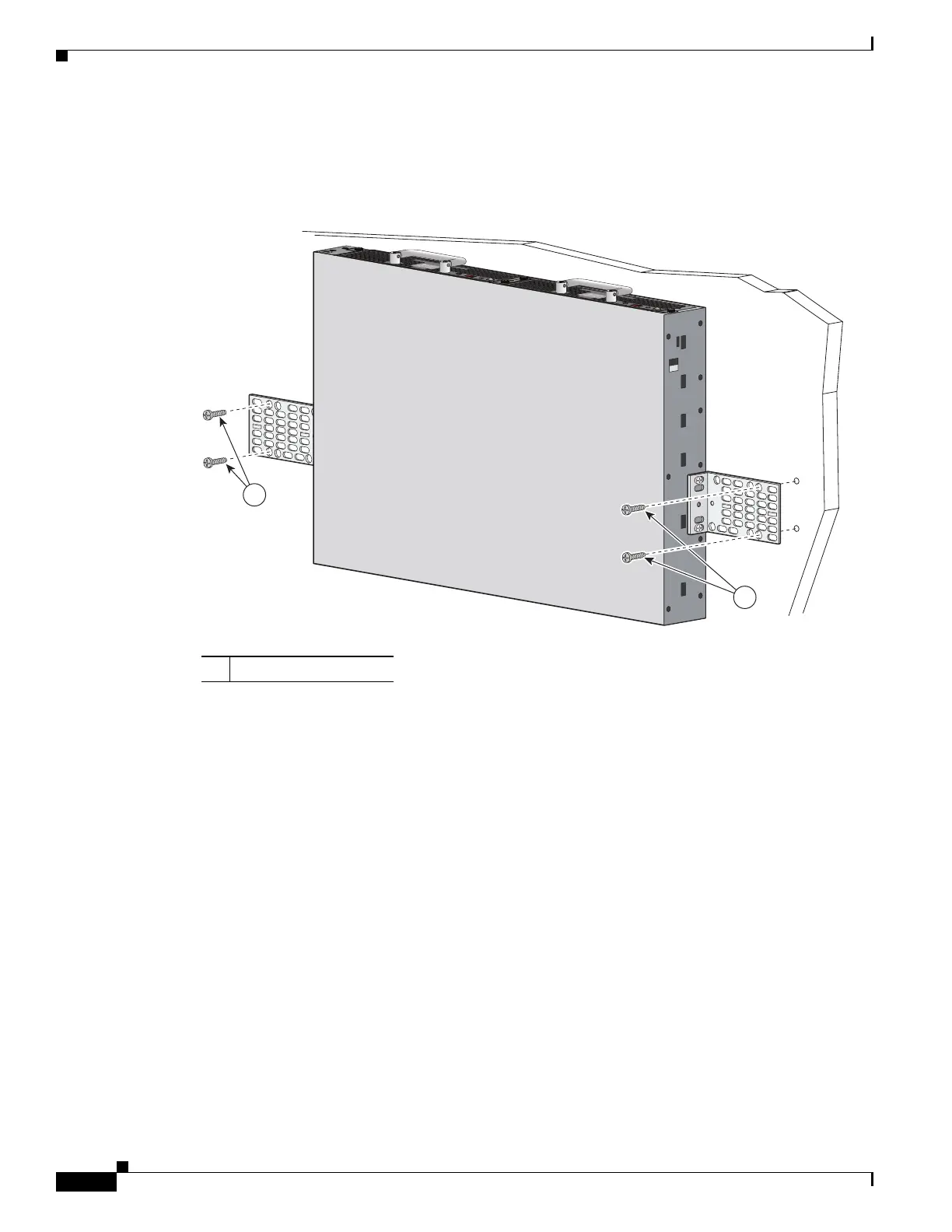

Mount the switch with the front panel facing down (Figure 2-13).
Figure 2-13 Mounting Cisco ME 3400EG-12CS-M on a Wall
1 User-supplied screws
