Chapter 2 Switch Installation
Installing the Switch
Cisco ME 3400E-24TS-M
Mount the switch with the side panel facing up (Figure 2-14).

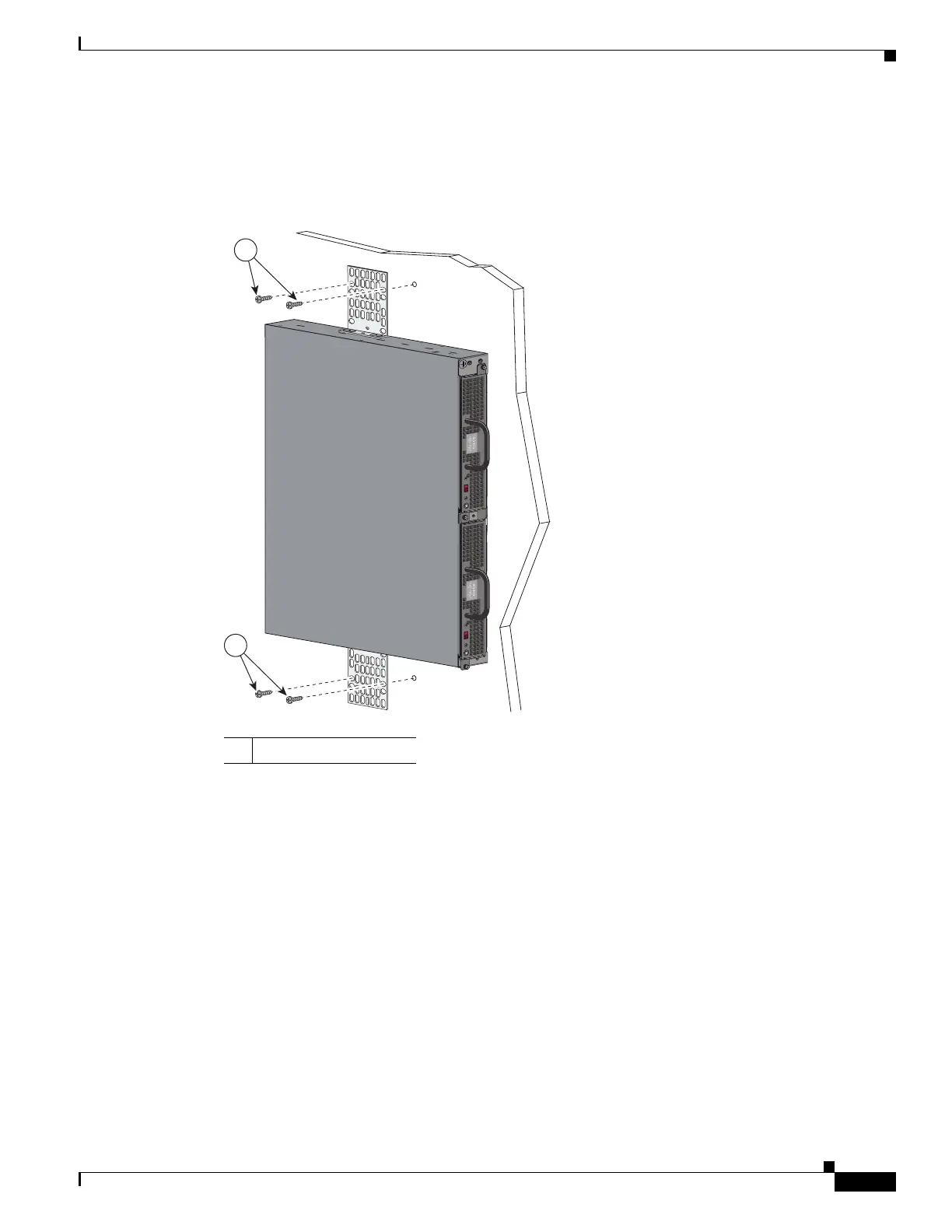

Figure 2-14 Mounting Cisco ME 3400E-24TS-M on a Wall
1 User-supplied screws
205716
PSU OK
+24V -48V
DC
PSU OK
+24V -48V
DC
