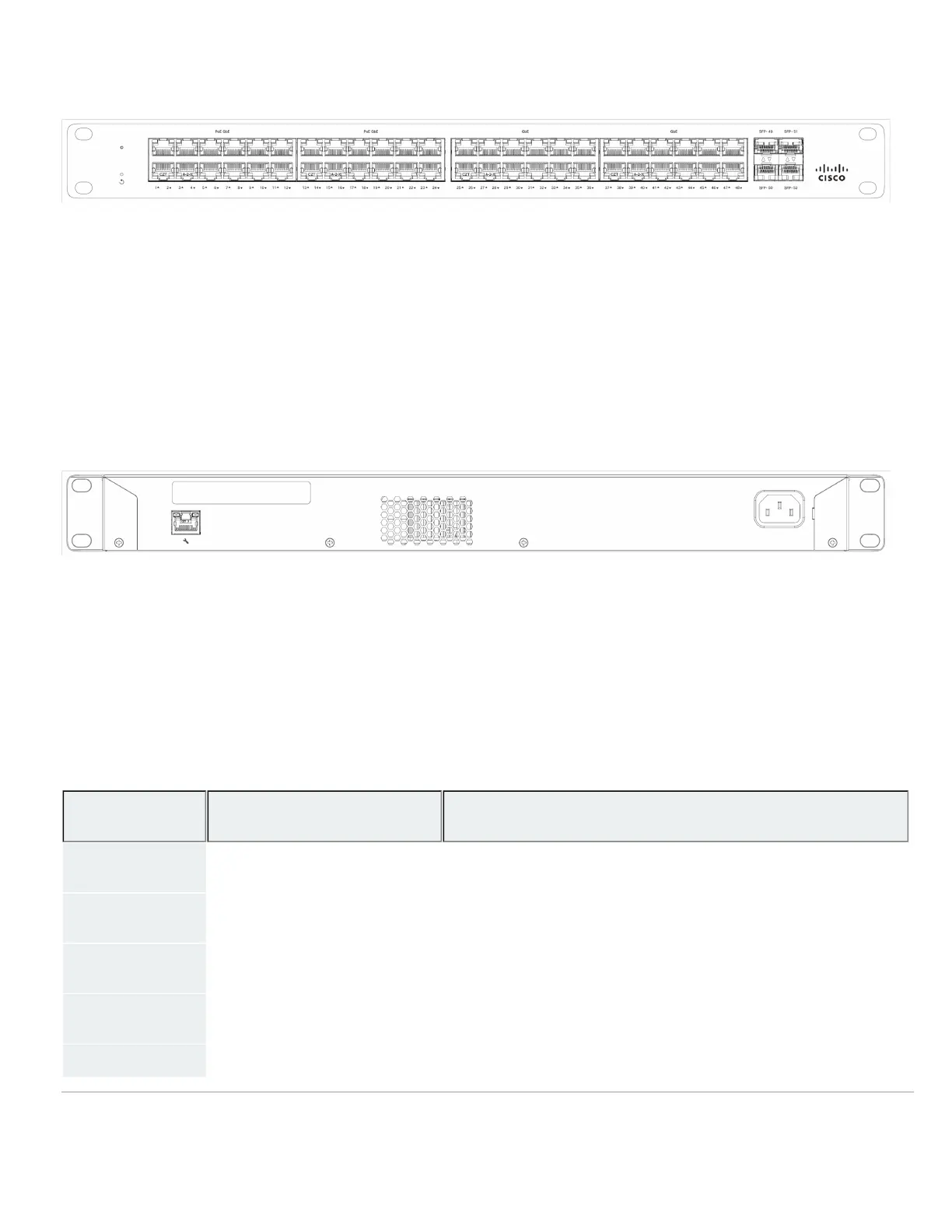

MS125-48 Series front panel
MS125-48LP/FP Series front panel
Back Panel
MS125 Series back panel
Factory Reset Button
If the button is pressed and held for at least five seconds and then released, the switch will reboot and be restored to its original factory settings by deleting all
configuration information stored on the unit.
Ports and Status Indicators
The MS uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash twice. Additional functions are described
below, from left to right.
Front Panel Components
Function LED Status Meaning
Power Solid orange Switch is unable to connect to the Meraki cloud
Flashing white Firmware upgrade in process
Solid white Switch is fully operational and connected to the Meraki cloud
Off Switch does not have power
Restore N/A Restore button to clear switch IP and local configuration settings
3
