Cisco Meraki MS225 Series Setup Instruction

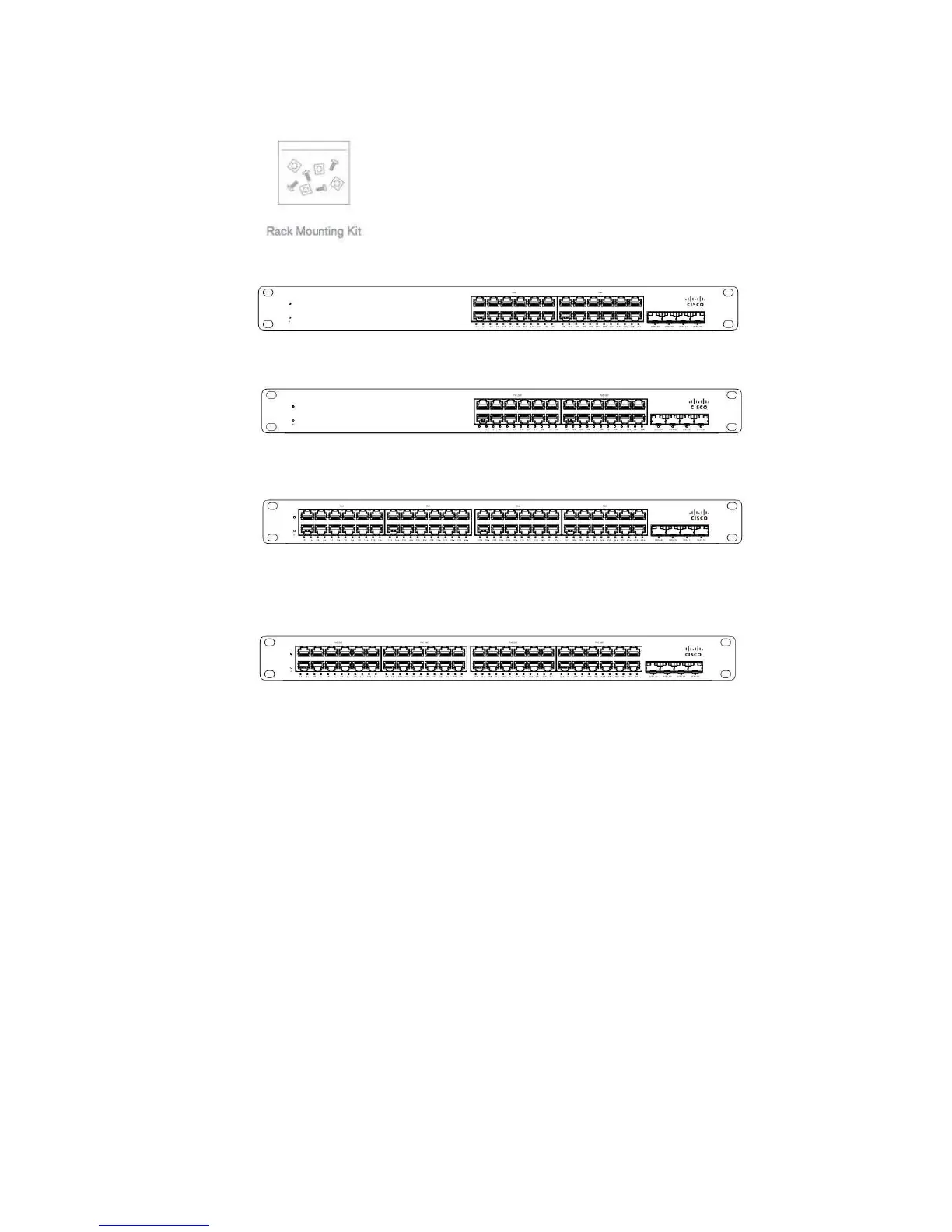

Package contents
In addition to MS switch, the following mounting kit is provided with 1Umodels only:
MS225-24-HW Front Panel
MS225-24P-HW Front Panel
MS225-48-HW Front Panel
MS225-48LP-HW Front Panel
MS225-48FP-HW Front Panel

Cisco Meraki MS225 Series Specifications

General

Model	MS225 Series
Series	MS225
Category	Switch
Stacking	Yes, via Meraki Cloud
Power Supply	Internal
Layer	Layer 2
DRAM	512 MB
Operating Temperature	0°C to 40°C
Uplink	4 x SFP+
Management	Cloud Managed
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Total PoE Budget	740W (MS225-48FP)
Dimensions (W x D x H)	17.3 x 10.2 x 1.7 in (440 x 260 x 44 mm)
Ports	24 x GbE or 48 x GbE
Power over Ethernet (PoE)	802.3af/at (PoE/PoE+)
