Rainbow Switch is booting, searching for uplink to Meraki Cloud
Off Switch does not have power
3 Switch Port LEDs Off No client connected
Solid orange 1000 Mbps (1Gbps)
Solid green 10,000 Mbps (10Gbps)
Factory Reset Button
If the button is pressed and held for at least 10 seconds and then released, the switch will reboot and be restored to its original factory settings by deleting all
configuration information stored on the unit.
Insert a paper clip if a restore is required.
• A brief, momentary press: To delete a downloaded configuration and reboot.
• Press and hold for more than 10 sec: To force the unit into a full factory restore.
Back Panel
Function LED Status Meaning
Fan Orange One or more of the system fans has malfunctioned or is missing
Power (PSU) Orange One of the system PSUs (power supplies) has malfunctioned or is missing
Management Port Green Connected, used for easy access to the local status page

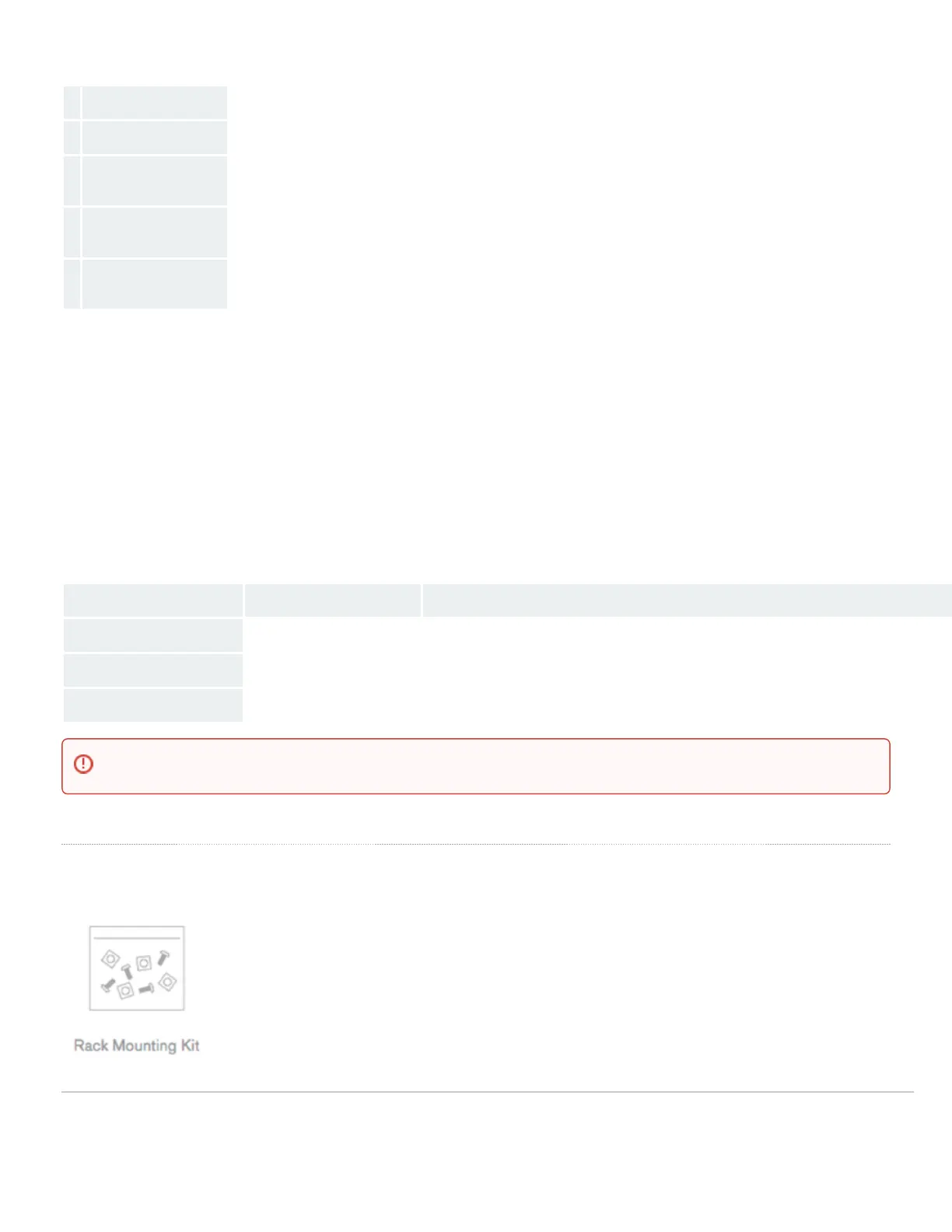

Package contents
In addition to the MS switch, the following are provided (mounting kit provided with 1U models only):
Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.
3
