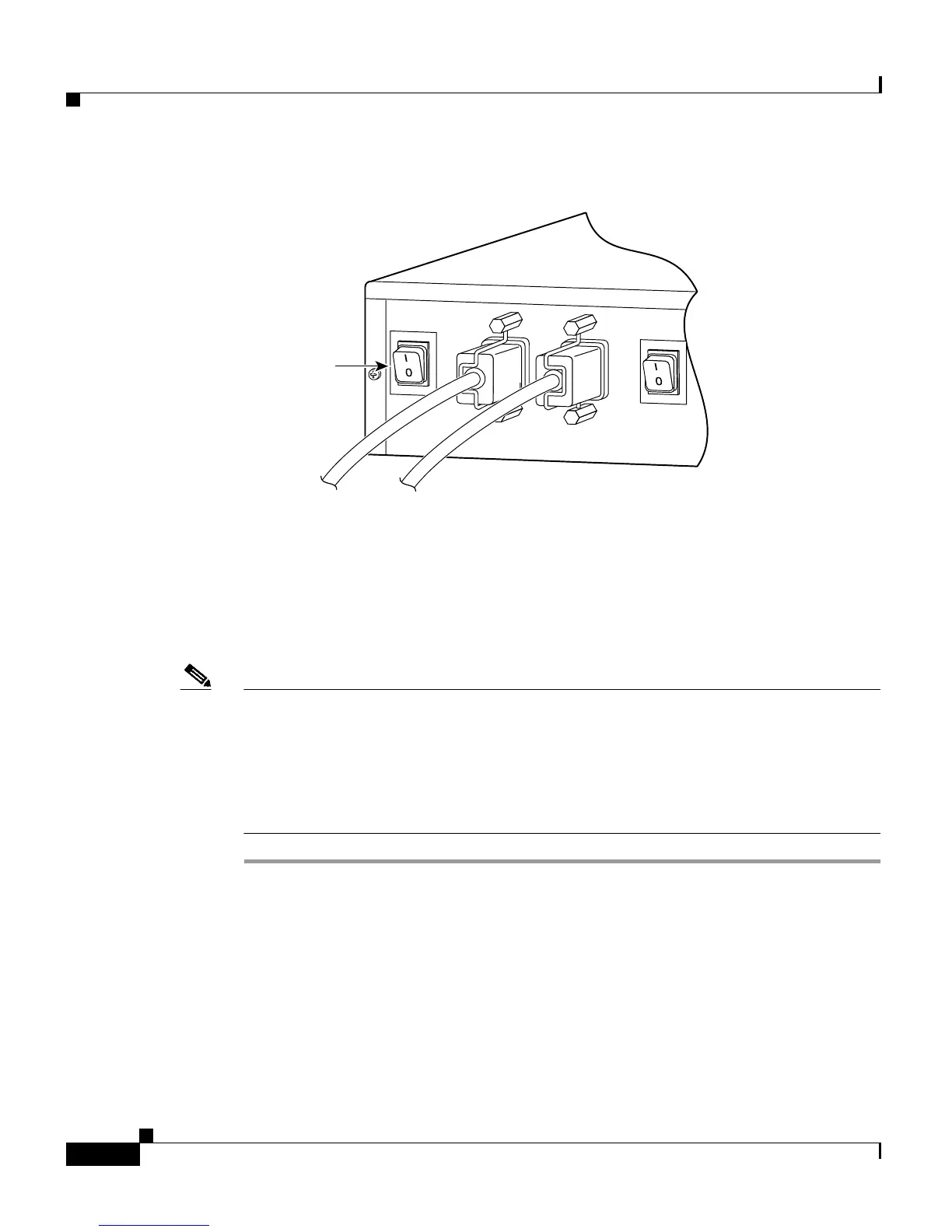

Figure 4-15 Powering Up the Cisco RPS
The Cisco RPS provides power in 10 to 15 seconds. The Cisco RPS is working
properly when all its front panel LEDs are solid green. If the external device does not
power up, refer to Chapter 5, “Troubleshooting the Cisco RPS.”
Note If you are using a Cisco RPS with a revision level lower than Z3 with a Catalyst
3508G or a Catalyst 3548 XL switch, the switch RPS LED and the RPS DC LED
might display amber (normally indicating Cisco RPS malfunction) even when the
Cisco RPS is functioning properly. The LEDs display correctly for Cisco RPS
revision level Z3 or later revision. The label on the bottom of the Cisco RPS
shows the revision level.
29091
Power switch
