Chapter 4 Connecting the Cisco RPS
Connecting Switches

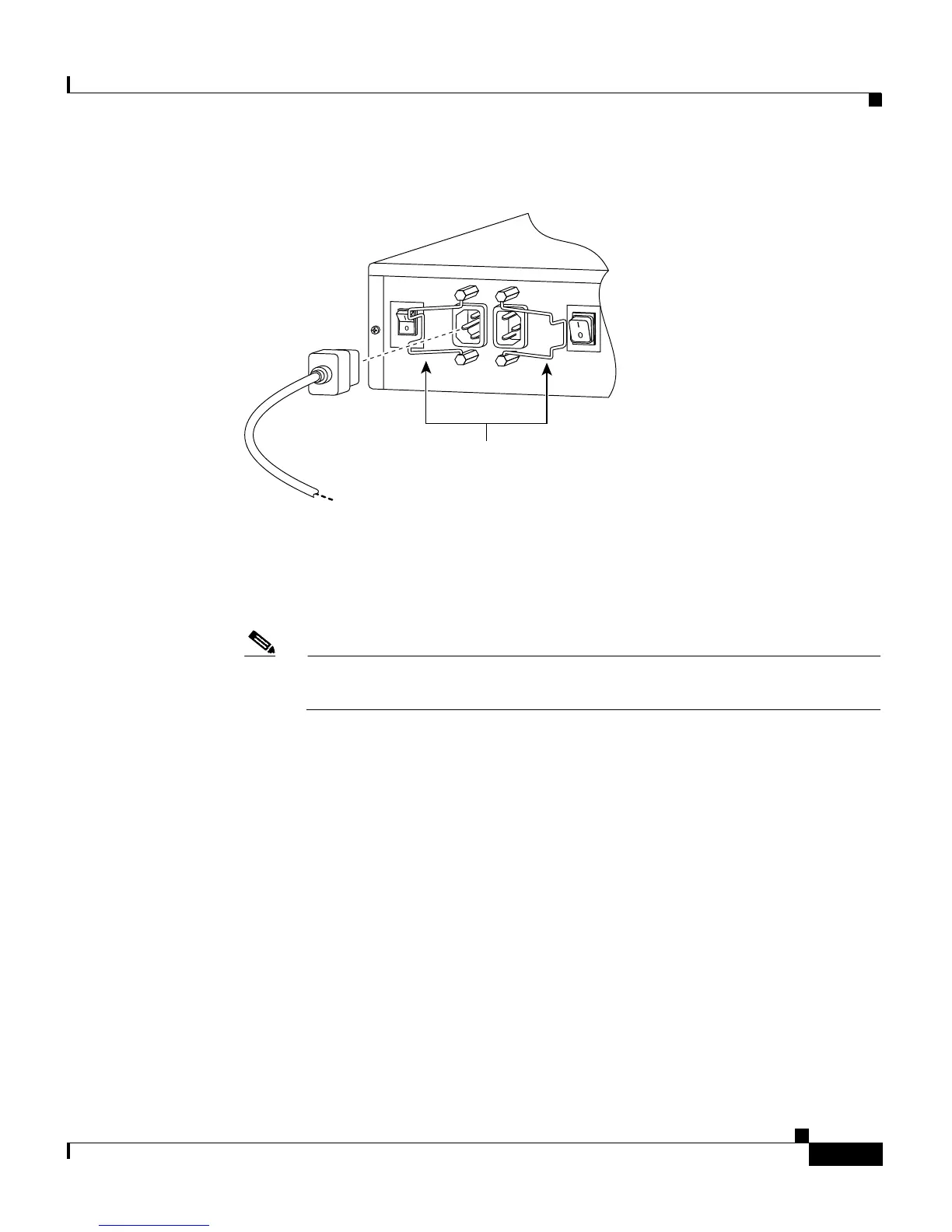

Figure 4-14 Connecting the AC Power Cables to the Cisco RPS
Step 5
Connect the other end of the Cisco RPS AC power cable into an AC power outlet.
Step 6 If you are using the redundant-with-reboot configuration (not recommended),
power up the switch by connecting the switch AC power cord into an AC power
outlet.
Note If you use the redundant-with-reboot configuration, always power up the
switch before you power up the Cisco RPS.
Step 7 Power up the Cisco RPS. There is one power switch for each of the AC input
power modules. Make sure that the power switch for each connected AC cable is
in the ON (|) position. (See Figure 4-15.)
29092
Cable locks
To Next Page
