Chapter 4 Connecting the Cisco RPS
Connecting Routers and the Cisco MC3810 Concentrator
4-18
Cisco Redundant Power System Hardware Installation Guide
OL-3654-01
Step 5 Connect the other end of the Cisco RPS AC power cable into a grounded AC
power outlet.
Step 6 Power up the Cisco RPS. There is one power switch for each of the AC input
power modules. Make sure that the power switch for each connected AC cable is
in the ON (|) position. (See Figure 4-25.)

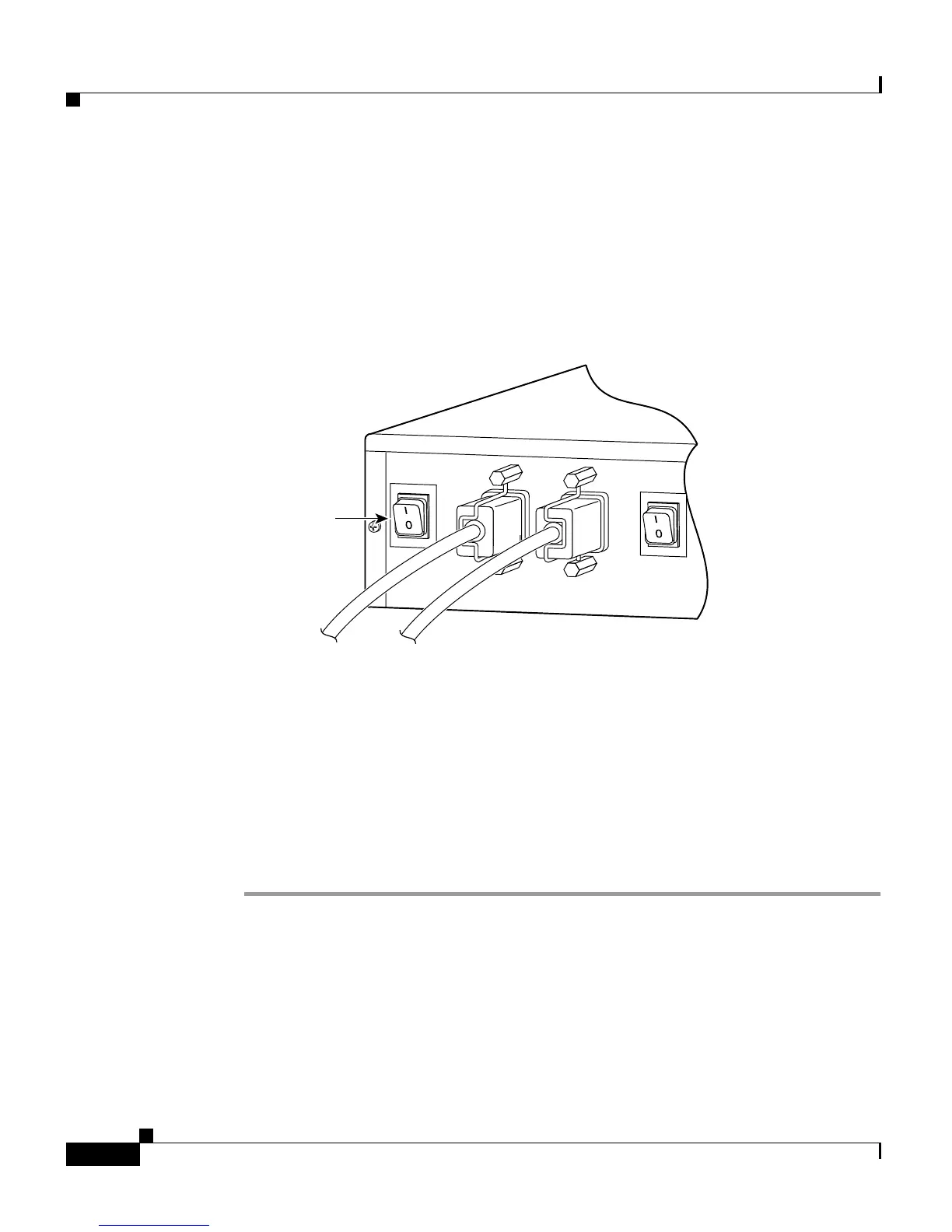

Figure 4-25 Powering Up the Cisco RPS
Step 7 Power on the router or concentrator by pressing the power switch to the ON (|)
position.
The Cisco RPS is on and provides power to the external device in 10 to 15 seconds.
The Cisco RPS is working properly when all its front-panel LEDs are solid green. If
the external device does not power up, see Chapter 5, “Troubleshooting the
Cisco RPS.”
29091
Power switch
