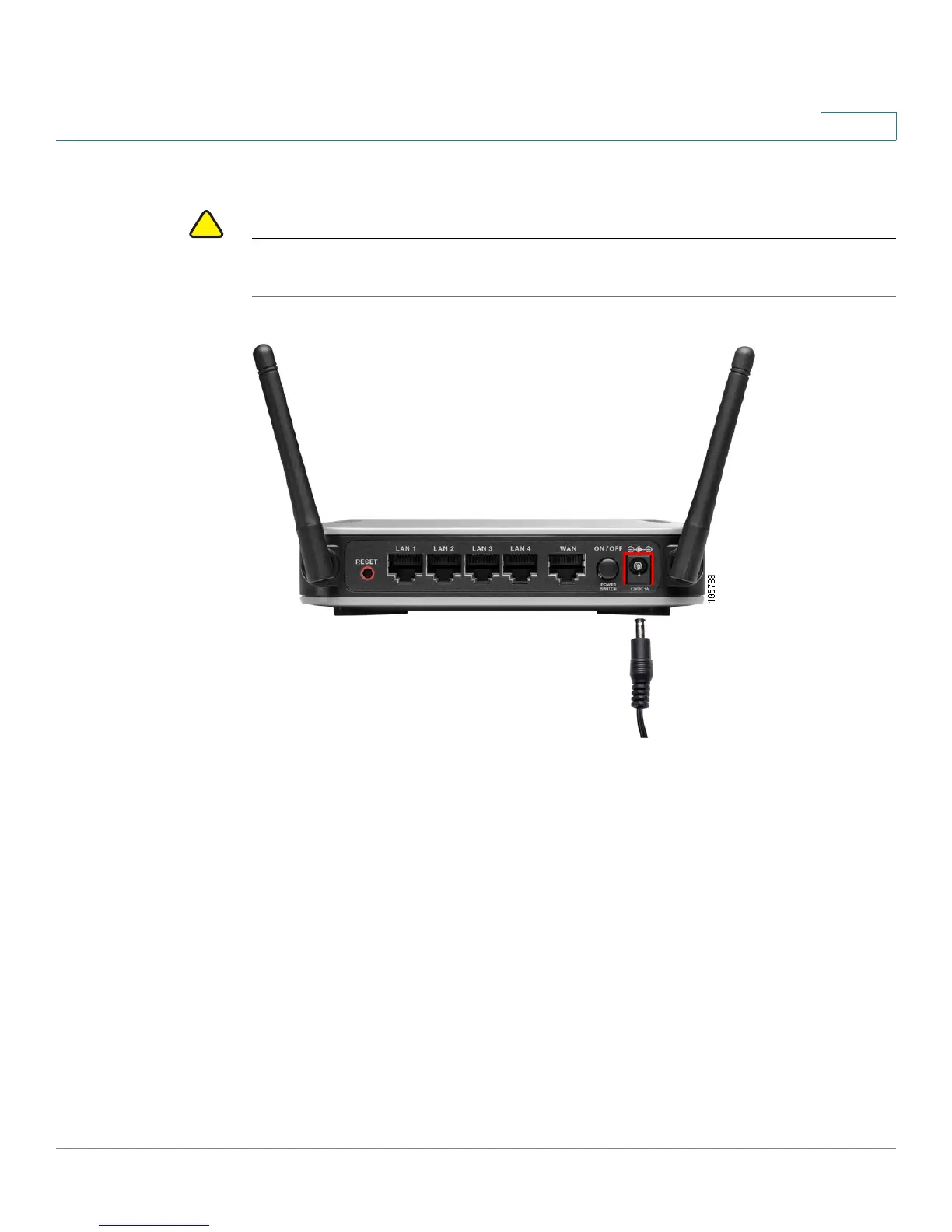

Cisco RV 120W Administration Guide
11
1
STEP
4
Connect the p
ower adapt
er to the Cisco RV 120W power p
ort
. Click
Next
.
!
CAU
TI
O
N
Use only the power adapter that is supplied with the device. Using a dif
f
erent
power adapter could damage the device.
STEP
5
Plug the other end of the adapt
er int
o an electrical outlet
.
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Introduction
9
Product Overview
9
Getting to Know the Cisco RV 120W
11
Front Panel
11
Back Panel
12
Mounting the Cisco RV 120W
13
Installation Guidelines
13
Wall Mounting
13
Connecting the Equipment
15
Using the Setup Wizard
16
Starting the Wizard
16
Connecting Your Hardware
17
Entering Login and Internet Connection Information
21
Configuring Security
22
Manually Connecting Your System
24
Verifying the Hardware Installation
25
Connecting to Your Wireless Network
25
Getting Started in the Cisco RV 120W Device Manager
26
Logging in
26
Using the Getting Started Page
27
Navigating through the Pages
28
Saving Your Changes
29
Viewing the Help Files
30
Viewing Device Statistics
30
Viewing the System Summary
30
Viewing the Wireless Status
33
Viewing the Ipsec Connection Status
34
Viewing the Quickvpn Connection Status
35
Viewing Logs
35
Viewing Available LAN Hosts
36
Viewing the Port Triggering Status
36
Viewing Port Statistics
36
Chapter 2: Configuring Networking
38
Configuring the Wide Area Network (WAN)
38
Configuring the WAN for an Ipv4 Network
38
Configuring the Internet Connection Type
38
Configuring Internet Address Information
40
Configuring Domain Name System (DNS) Server Information
41
Configuring Maximum Transmit Unit (MTU)
41
Configuring the Cisco RV 120W Media Access Control (MAC) Address
41
Configuring the WAN for an Ipv6 Network
42
Configuring a Static IP Address
42
Configuring Dhcpv6
43
Creating Pppoe Profiles
43
Configuring the Local Area Network (LAN)
44
Changing the Default Cisco RV 120W IP Address
45
Configuring DHCP
45
Configuring the LAN DNS Proxy
46
Configuring Virtual Lans (Vlans)
47
Enabling Vlans
47
Creating a VLAN
47
Configuring Port Vlans
48
Associating the Wireless Port to Vlans
49
Configuring Multiple VLAN Subnets
50
Configuring Ipv6 LAN Properties
51
Configuring Ipv6 Address Pools
52
Configuring LAN Groups
53
Adding a Static IP Address for a Device on the LAN
53
Viewing DHCP Leased Clients
54
Configuring a DMZ Host
54
Configuring Internet Group Management Protocol (IGMP)
55
Configuring Routing
56
Choosing the Routing Mode
56
Viewing Routing Information
56
Configuring Static Routing
57
Configuring Dynamic Routing
58
Configuring Port Management
60
Configuring Dynamic DNS (DDNS)
61
Configuring Ipv6
62
Configuring the Routing Mode
62
Configuring Ipv6 Static Routing
62
Configuring RIP Next Generation (Ripng)
63
Configuring Ipv6 to Ipv4 Tunneling
64
Configuring 6To4 Tunneling
64
Configuring Intra-Site Automatic Tunnel Addressing Protocol Tunnels
64
Viewing Ipv6 Tunnel Information
65
Configuring Router Advertisement
65
Chapter 3: Configuring the Wireless Network
68
A Note about Wireless Security
68
Wireless Security Tips
68
General Network Security Guidelines
70
Understanding the Cisco RV 120W's Wireless Networks
70
Configuring Wireless Profiles
71
Configuring the Group Key Refresh Interval
73
Configuring RADIUS Authentication Parameters
74
Configuring Access Points
74
Enabling or Disabling Aps
74
Editing an Ap's Properties
75
Using MAC Filtering
76
Viewing AP Status
76
Configuring the Wireless Radio Properties
78
Configuring Basic Wireless Radio Settings
78
Configuring Advanced Wireless Radio Settings
79
Configuring Wi-Fi Protected Setup
80
Configuring a Wireless Distribution System (WDS)
81
Chapter 4: Configuring the Firewall
82
Cisco RV 120W Firewall Features
82
Configuring Basic Firewall Settings
84
Protecting from Attacks
84
Configuring Universal Plug and Play (Upnp)
85
Viewing Upnp Information
86
Enabling Session Initiation Protocol Application-Level Gateway (SIP ALG)
86
Configuring the Default Outbound Policy
87
Configuring Firewall Rules
87
Creating a Firewall Rule
88
Managing Firewall Rules
92
Creating Custom Services
92
Creating Firewall Schedules
93
Blocking and Filtering Content and Applications
93
Blocking Web Applications and Components
94
Adding Trusted Domains
95
Adding Blocked Keywords
95
Configuring MAC Address Filtering
96
Configuring IP/MAC Address Binding
97
Firewall Rule Examples
98
Configuring Port Triggering
100
Configuring Port Forwarding
102
Restricting Sessions
105
Configuring Remote Management
106
Configuring One-To-One Network Address Translation (NAT)
107
Chapter 5: Configuring Virtual Private Networks (Vpns) and Security
109
Configuring Vpns
110
Creating Cisco Quickvpn Client Users
110
Using the VPN Wizard
110
Viewing the Default Values
112
Configuring IP Security Policies
113
Configuring IKE Policies
113
Configuring VPN Policies
116
Configuring VPN Clients
121
Monitoring VPN Tunnel Status
121
Configuring Ipsec Users
122
Configuring VPN Passthrough
123
Configuring Security
123
Using Certificates for Authentication
123
Uploading CA Certificates
125
Uploading Self Certificates
125
Generating a Self Certificate Request
125
Downloading the Router's Current Certificate
126
Using the Cisco RV 120W with a RADIUS Server
126
Configuring 802.1X Port-Based Authentication
127
Chapter 6: Configuring Quality of Service (Qos)
128
Configuring Bandwidth Profiles
128
Configuring Traffic Flows
129
Configuring Traffic Metering
130
Configuring 802.1P
132
Configuring 802.1P to Queue Mapping
133
Configuring 802.1P Cos to DSCP Remarking
133
Chapter 7: Administering Your Cisco RV 120W
134
Setting Password Complexity
134
Configuring User Accounts
135
Setting the Timeout Value
136
Configuring Simple Network Management (SNMP)
136
Editing Snmpv3 Users
136
Adding SNMP Traps
137
Configuring Access Control Rules
137
Configuring Additional SNMP Information
138
Using Diagnostic Tools
138
Using PING
139
Using Trace Route
139
Performing a DNS Lookup
139
Capturing and Tracing Packets
139
Configuring Logging
139
Configuring Local Logging
140
Configuring Remote Logging
141
Configuring the Logging Type and Notification
142
Configuring E-Mailing of Log Events
143
Configuring Discovery (Bonjour)
143
Configuring VLAN Associations
144
Configuring Date and Time Settings
144
Backing up and Restoring the System
145
Upgrading Firmware
146
Rebooting the Cisco RV 120W
146
Restoring the Factory Defaults
146
Appendix A: Using Cisco Quickvpn for Windows 2000, XP, or Vista
147
Overview
147
Before You Begin
147
Installing the Cisco Quickvpn Software
148
Installing from the CD-ROM
148
Downloading and Installing from the Internet
150
Using the Cisco Quickvpn Software
150
Appendix B: Where to Go from here
154
