Cisco SG350-10P Administration Guide

Dashboard
Resource Utilization
Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4 33
3
• Thermometer Status
- Temperature is OK—Green with a nearly empty thermometer.
- Temperature generates a warning—Yellow with a half full thermometer.
- Temperature is critical—Red with a full thermometer.
The following configuration options (pencil icon in upper right-hand corner) are available:
• Refresh Time—Select one of the options displayed.
• System Health—Click to open the Health and Power page.

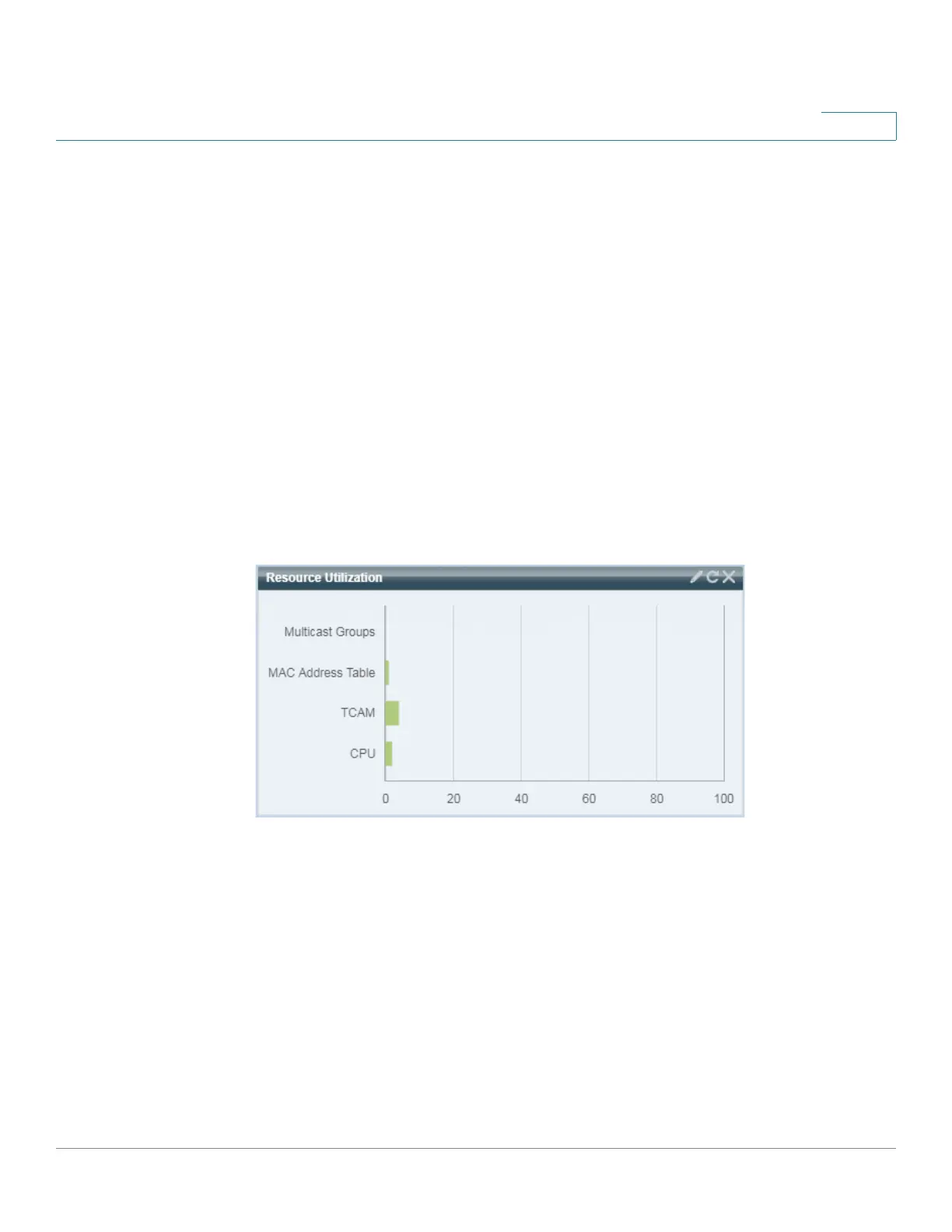

Resource Utilization
This module displays the utilization status in terms of a percentage of the various system
resources as a bar chart, as shown below:
The resources monitored are:
• Multicast Groups—Percentage of Multicast groups that exist out of the maximum
possible number that are permitted to be defined.
• MAC Address Table—Percentage of MAC Address table in use.
• TCAM—Percentage of TCAM used by QoS and ACL entries.
• CPU—Percentage of CPU being used.
Each bar becomes red if the resource utilization is higher than 80 percent.
Hovering over a bar displays a tooltip displaying the numeric utilization information (used
resources/max available).

Cisco SG350-10P Specifications

General

Product Name	Cisco SG350-10P
Category	Switch
Ports	10
PoE Ports	8
PoE Power Budget	62W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Layer	Layer 3
Power Supply	Internal
Relative Humidity	10% to 90% non-condensing
MAC Address Table Size	8K
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Operating Altitude	Up to 3, 000 meters
