Cisco SG350-10P Administration Guide

Dashboard
Identification
34 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
3
The following configuration options (right-hand corner) are available:
• Refresh Time—Select one of the options displayed.
• Multicast Groups—Click to open MAC Group Address
• MAC Address Table—Click to open Dynamic Addresses.
• TCAM Utilization Information—Click to open Hardware Resource Utilization.
• CPU Utilization Information—Click to open CPU Utilization.
Identification

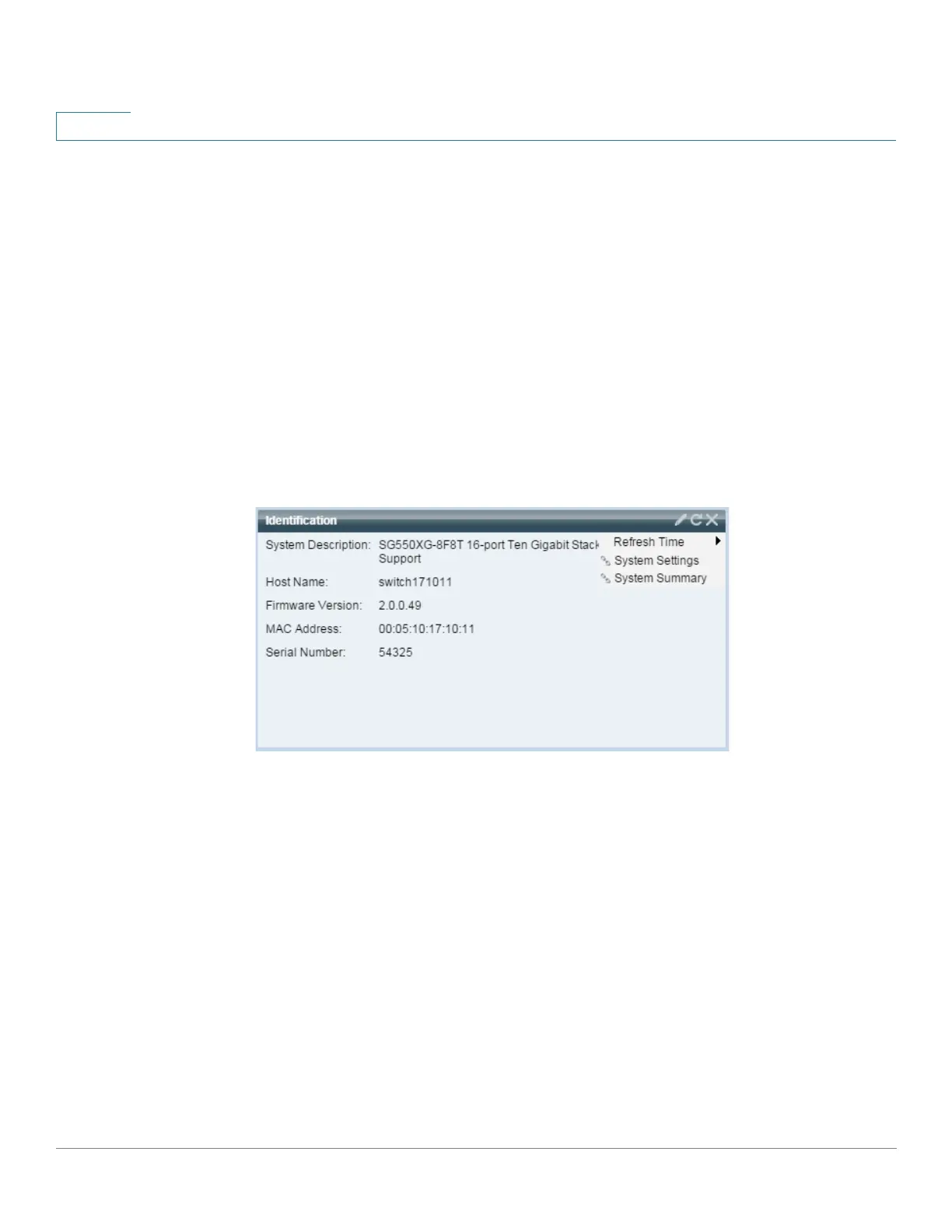

This module displays basic information regarding the device and stack, as shown below:
It displays the following fields:
• System Description—Displays description of the device.
• Host Name—Entered in the System Settings page or default is used. Also can be
added in the Getting Started Wizard.
• Firmware Version—Current firmware version running on device.
• MAC Address (master unit)—MAC address of the unit.
• Serial Number (master unit)—Serial number of the unit.
• System Location—Enter the physical location of the device.
• System Contact—Enter the name of a contact person.
• Total Available Power—Amount of power available to the device.

Cisco SG350-10P Specifications

General

Product Name	Cisco SG350-10P
Category	Switch
Ports	10
PoE Ports	8
PoE Power Budget	62W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Layer	Layer 3
Power Supply	Internal
Relative Humidity	10% to 90% non-condensing
MAC Address Table Size	8K
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Operating Altitude	Up to 3, 000 meters
