Cisco Small Business SPA502G

Installing Your Phone
Mounting the Phone to the Wall (Optional)
Cisco Small Business IP Phone SPA 50X User Guide (SPCP) 19
2

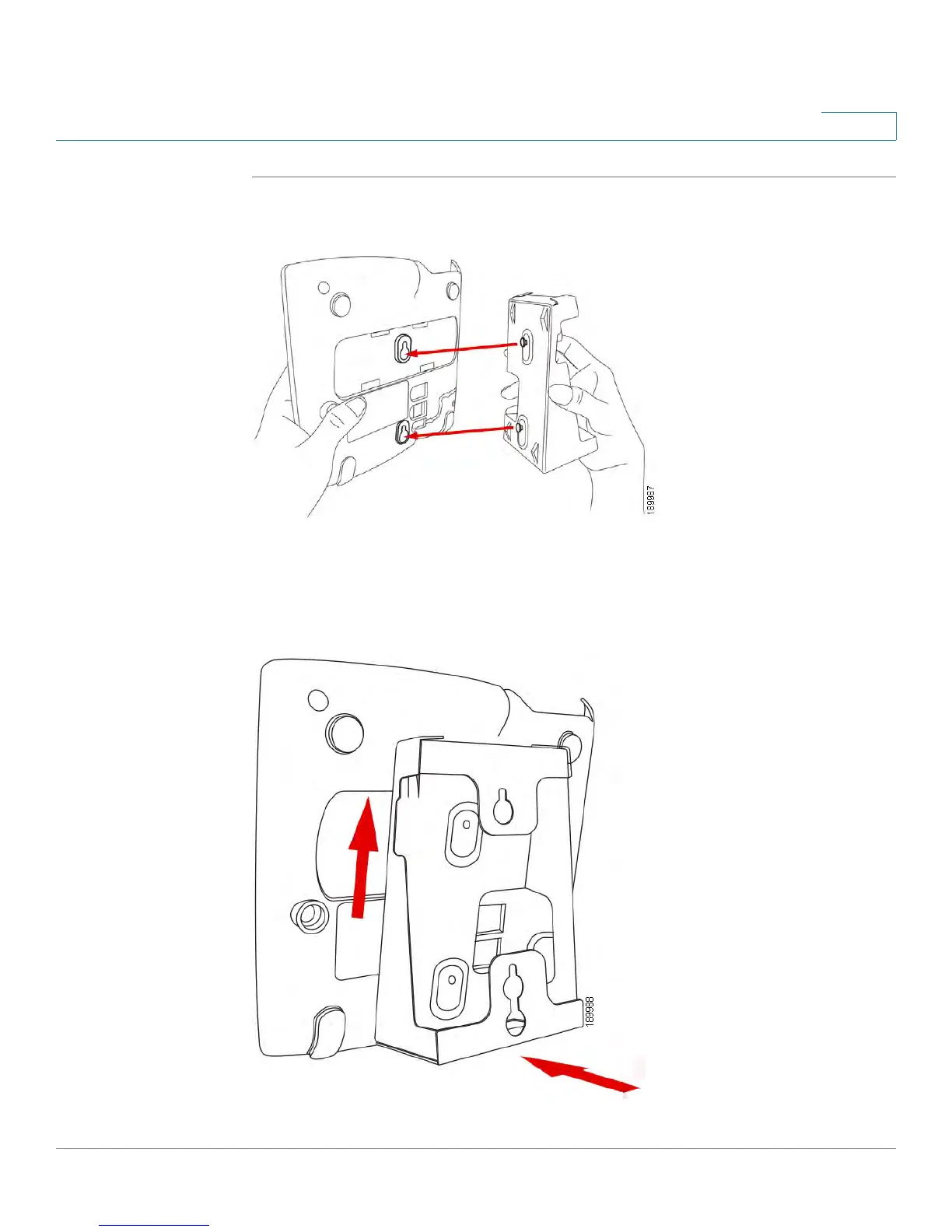

STEP 1 To attach the Mounting Bracket (MB), align the two cleats on the MB with the holes
in the phone’s base.
STEP 2 Orient the MB such that the phone’s Ethernet and handset ports are accessible
after installation.
STEP 3 Push the MB onto the phone’s base. Slide the MB upwards to lock it in place.
