Using the Cisco SPA 500S Attendant Console
Connecting the Cisco SPA 500S Attendant Console to the IP Phone
Cisco Small Business IP Phone SPA 50X User Guide (SPCP) 62
6
CAUTION Do not plug a telephone line cord into the AUX port. Use only the auxiliary cable
provided with the Cisco SPA 500S.

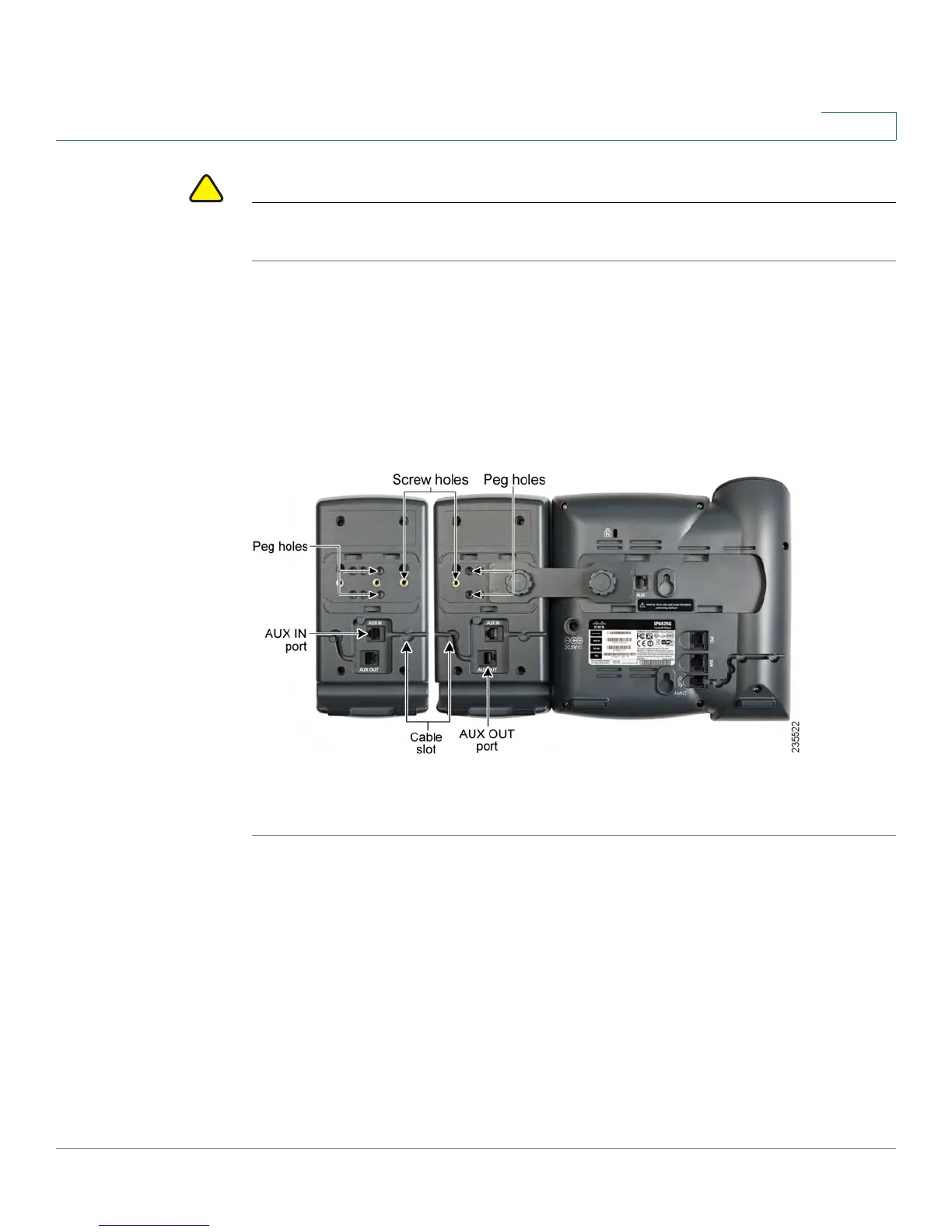

STEP 7 Locate the AUX OUT port on the back of the first Cisco SPA 500S. Connect one
end of the auxiliary cable to this port.
STEP 8 Locate the AUX IN port on the back of the second Cisco SPA 500S. Connect the
other end of the auxiliary cable to this port.
STEP 9 Route the auxiliary cable inside the cable slot. The Cisco SPA 500S is powered by
the auxiliary cable with the IP phone; no additional power source is required.
STEP 10 Attach the appropriate desktop stands to each unit.
