Cisco TelePresence MX700 and MX800 Administrator Guide
Connecting the Touch 10 user interface
The Touch 10 user interface must either be directly
connected to the MX700 or MX800 video system as
described on this page, or paired to the video system via the
network (LAN) as described on the next page. The latter is
referred to as remote pairing.
The procedures in this chapter apply to all MX700 and
MX800 video systems.
(page 1 of 2)

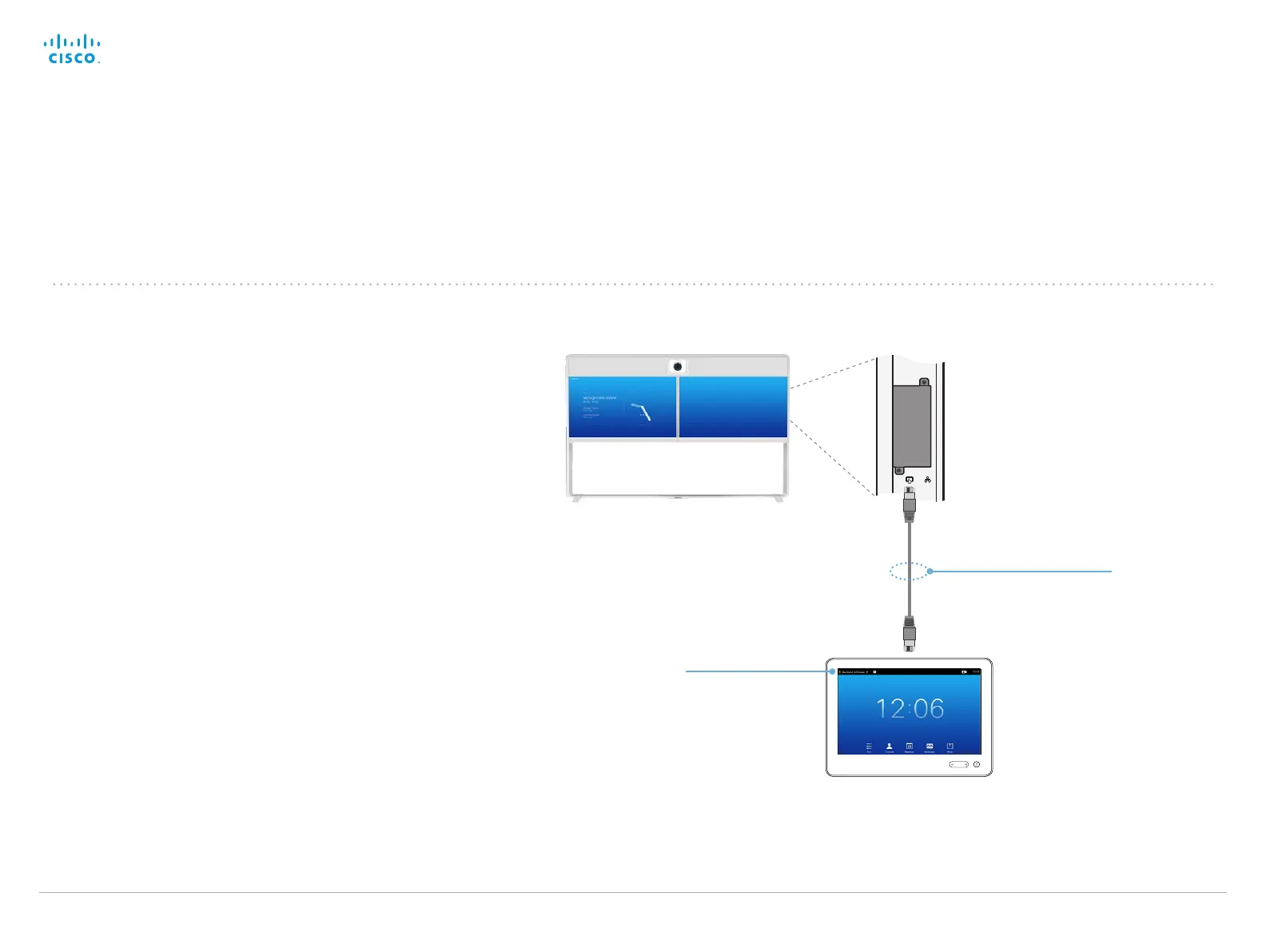

Connecting Touch 10 directly to the video
system
Connect Touch 10 to the video system’s PoE injector as
illustrated.
Touch 10 set-up
Once Touch 10 is connected, the set-up procedure begins.
Follow the instructions on screen.
If Touch 10 needs software upgrade, new software will be
downloaded from the video system and installed on the unit
automatically as part of the set-up procedure. Touch 10
restarts after the upgrade.
You can verify that Touch 10 is successfully connected to the
video system by checking that the video system's address is
displayed in the top banner.
Video system address
The Ethernet connector
is behind the lid at the
rear of Touch 10.
PoE rated Ethernet cable
Contents
Introduction
Web interface
System settings
Setting passwords
AppendicesAppendices

Cisco TelePresence MX700 Specifications

General

Product Type	Video conferencing system
Frame Rate	Up to 60 fps
Display	Dual 55-inch LCD
Audio	Integrated speakers and microphones
Video Standards	H.264
Network	Ethernet
Connectivity	HDMI, USB
Control	Touch 10 control unit
Video Resolution	1080p at 60 fps
Zoom	12x optical zoom
Codec	H.264
Network Protocols	SIP
Power Consumption	300W
Weight	90 kg
