Cisco Telepresence MX800 Installation Guide

7

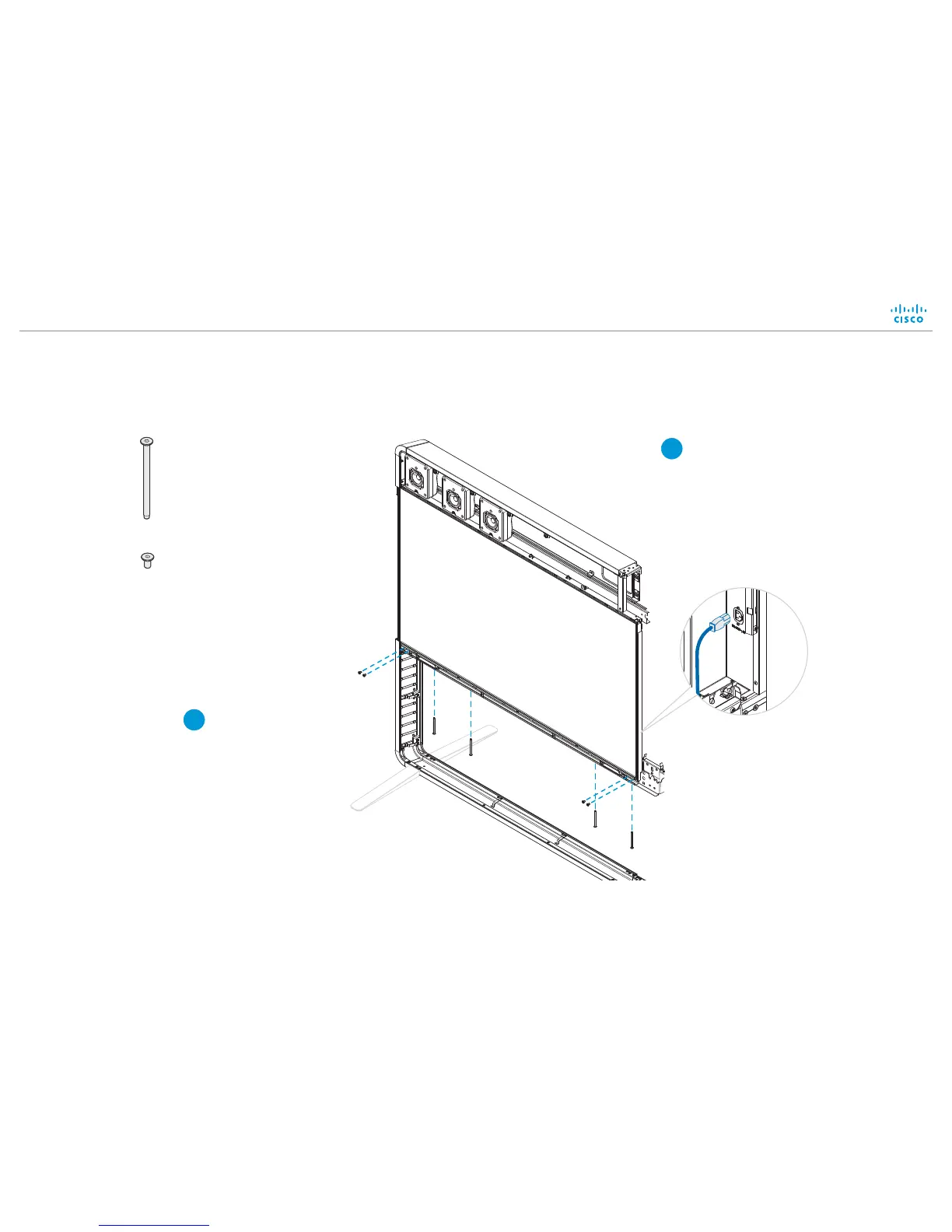

Fasten left monitor to floor stand and connect power cable
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 12
Enter four screws from
front and four screws from
underneath. Then, tighten
all screws.
1
Connect power cable
A power cable is
strapped at the rear of
the monitor. Connect it
to the close-by socket.
Let the other end
hang freely. It will be
connected to the right
monitor in step 9.
22
4 × M6x90, countersunk
4 ×
M6x12, countersunk
Rear view

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
