17

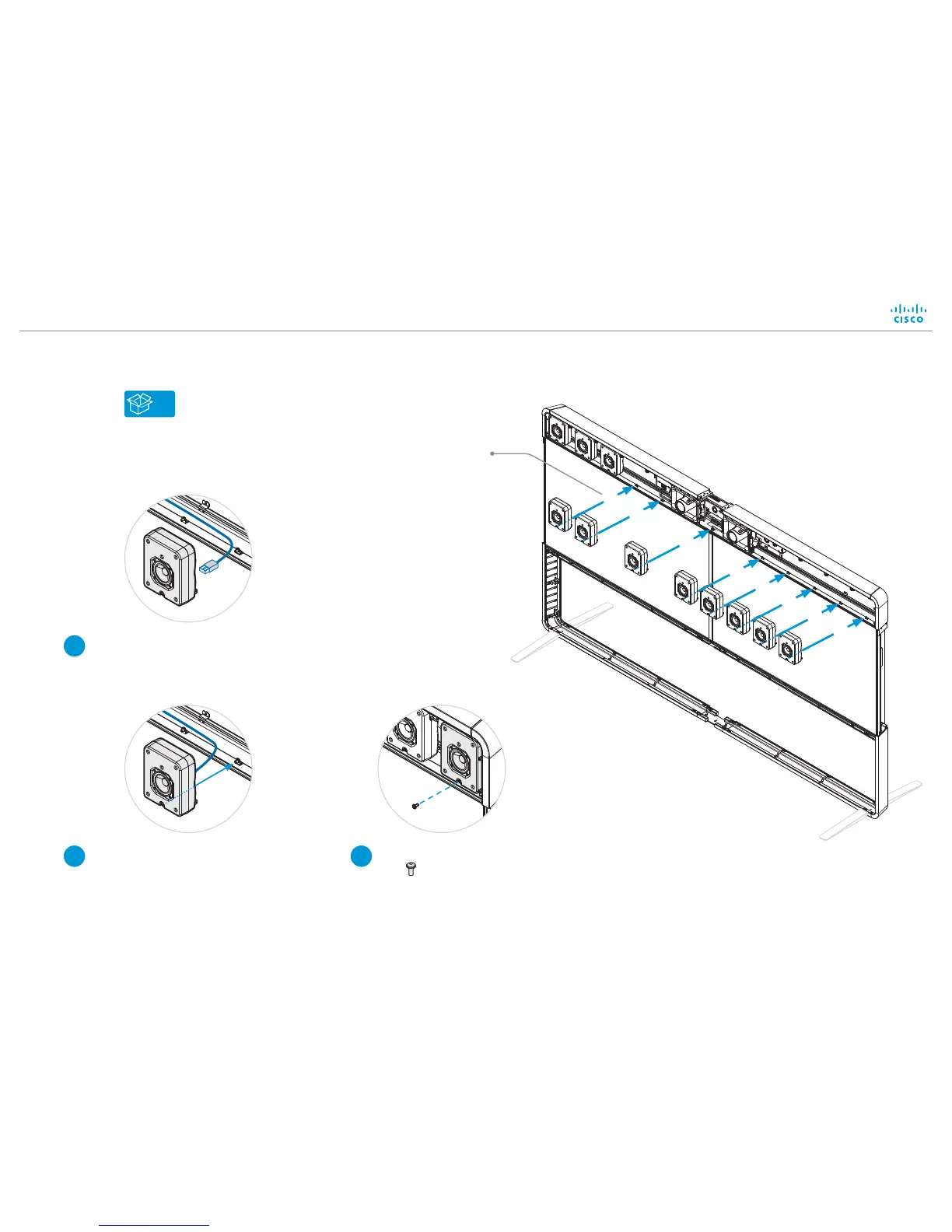

Mount loudspeakers
H
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 23
Three loudspeakers are pre-installed. Follow
steps 1-3 for the remaining eight loudspeakers.
The loudspeaker cables
are marked with a
number. These numbers
must match the position
of the loudspeakers, as
shown here.
Cable number 1, above
the right monitor, is not
used.
Connect the cable to the loudspeaker. Use
the cable that is marked with the correct
loudspeaker position. Loudspeaker cable 1
above the right monitor is not used.
1
Enter the loudspeaker onto the speaker clip.
Make sure that no cables are pinched.
2 3
Fasten with one screw.
8 ×
PT4x10 (one for each loudspeaker)
1
2
5
4
6
3
2
3
4
5
6
