Lift right monitor onto floor stand
D
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.

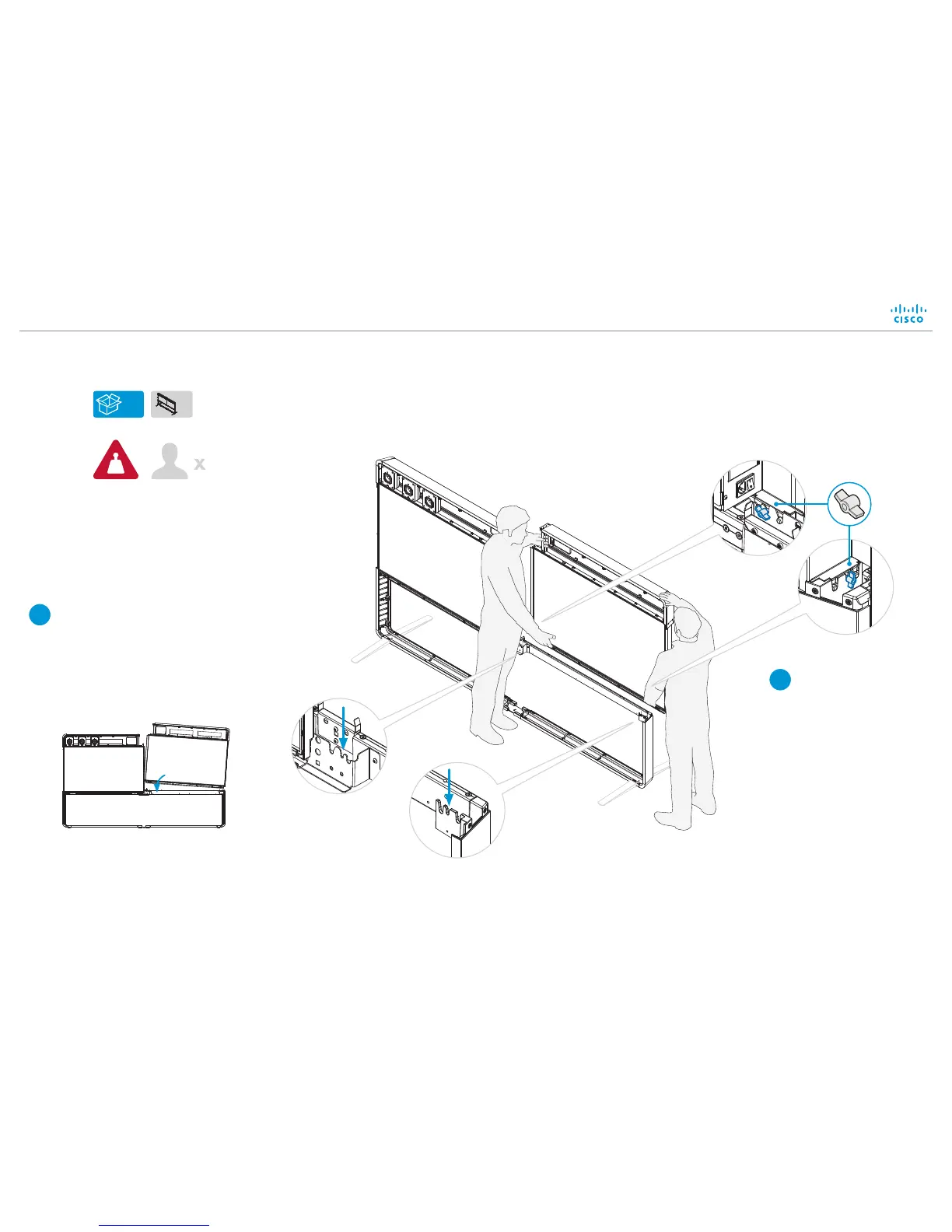

Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 13
Tighten the wing nuts
on both sides. They are
accessed from the sides
of the monitor.
2
Make sure that the screw with
wing nut enters the center slot on
both sides.
Keep the outer side a bit lower than
the side toward the other monitor
when lowering the monitor onto the
floor stand.
Do not let go of the monitor before it
is securely placed on the floor stand.
1
Rear view
Rear view
84 kg / 185 lb
4
2
