Mount joining bracket
E
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 16
5 × M6x12, pan

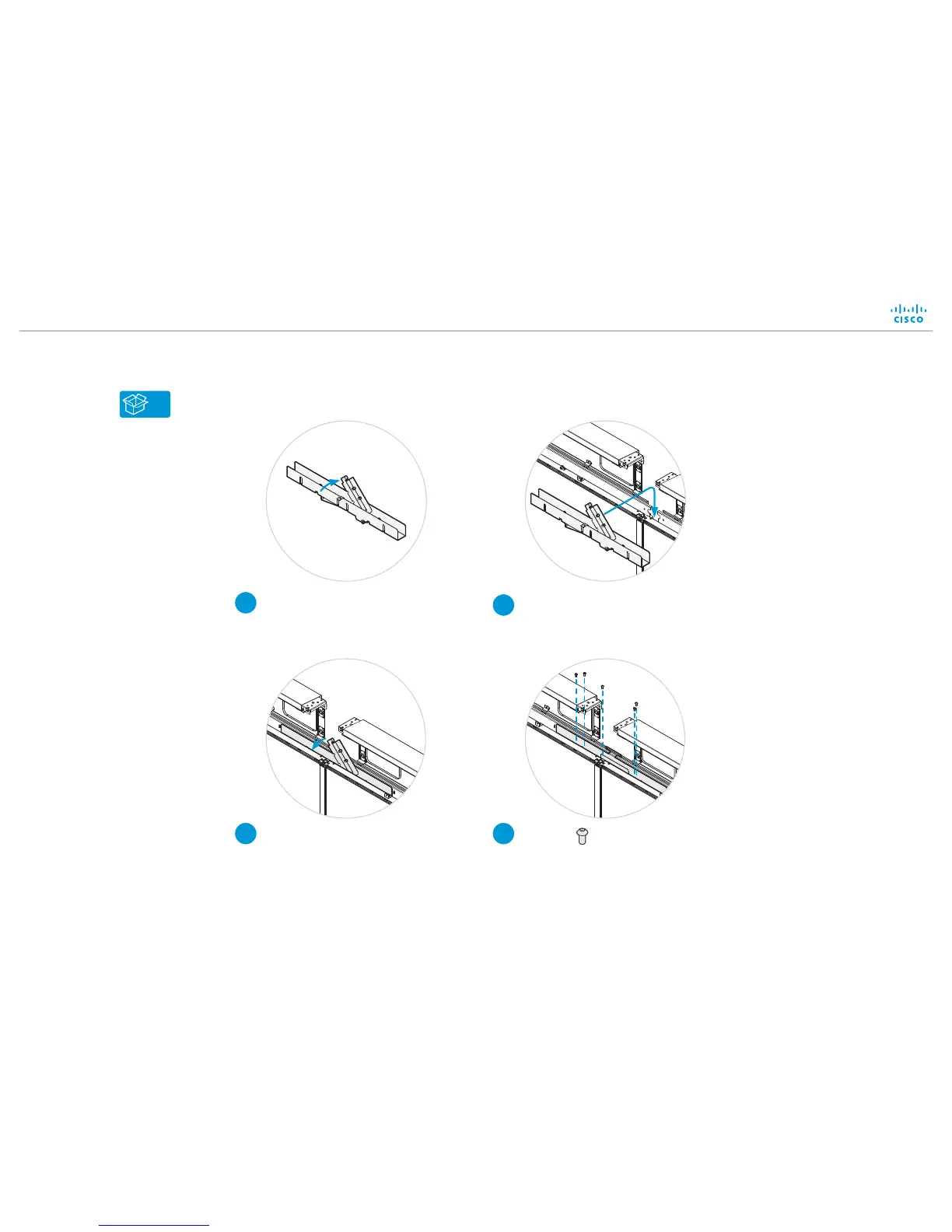

Place the joining bracket in the
channel. Make sure it aligns with
the channel at the top.
Open the lever.
Push down the lever to a
horizontal position.
1
2
3 4
