15
Mount camera module (page 1 of 2)
F, G
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Page 20
We recommend two people working
together to mount the camera. One
person to insert the camera module;
the other person making sure that no
cables are pinched.
Make sure that the HDMI cable for the
left camera and loudspeaker cable 6
can be accessed through the hole
in the bottom plate of the camera
module.
4 ×
M4x8, pan
1 2 3
6 × M4x8, pan

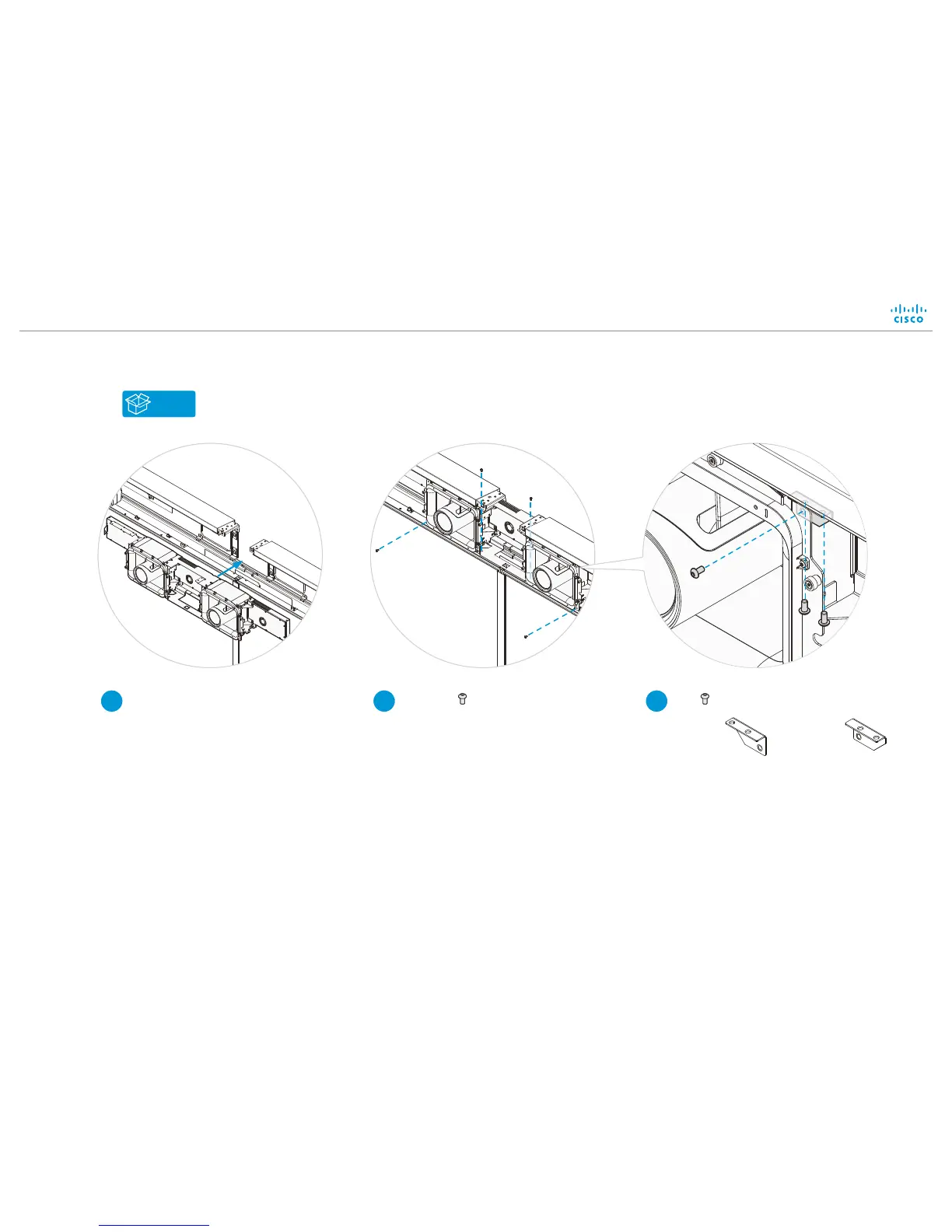

Fasten the right camera support bracket
to the upper right corner of the right
camera with one screw from the front,
and then to the top profile with two
screws from underneath.
Similarly, fasten the left camera support
bracket to the upper left corner of the
left camera and to the top profile.
Camera
support
bracket
left side
Camera
support
bracket
right side
To Next Page
