Lift left monitor onto floor stand
D
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Pa g e 11

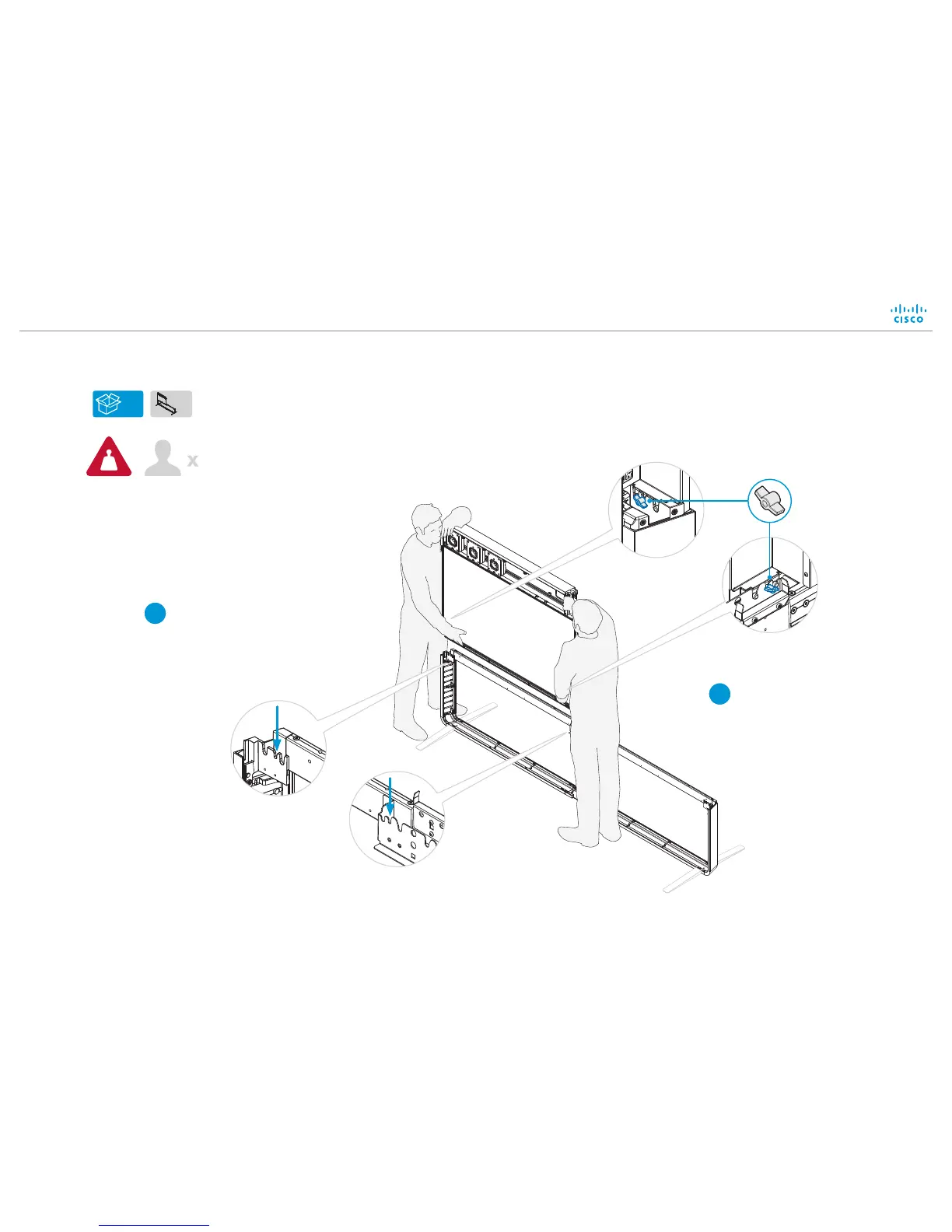

Make sure that the screw
with wing nut enters the
center slot on both sides.
Do not let go of the monitor
before it is securely placed
on the floor stand.
1
Rear view
Tighten the wing nuts
on both sides. They are
accessed from the sides
of the monitor.
2
Rear view
90 kg / 200 lb
