Cisco Telepresence MX800 Installation Guide

5

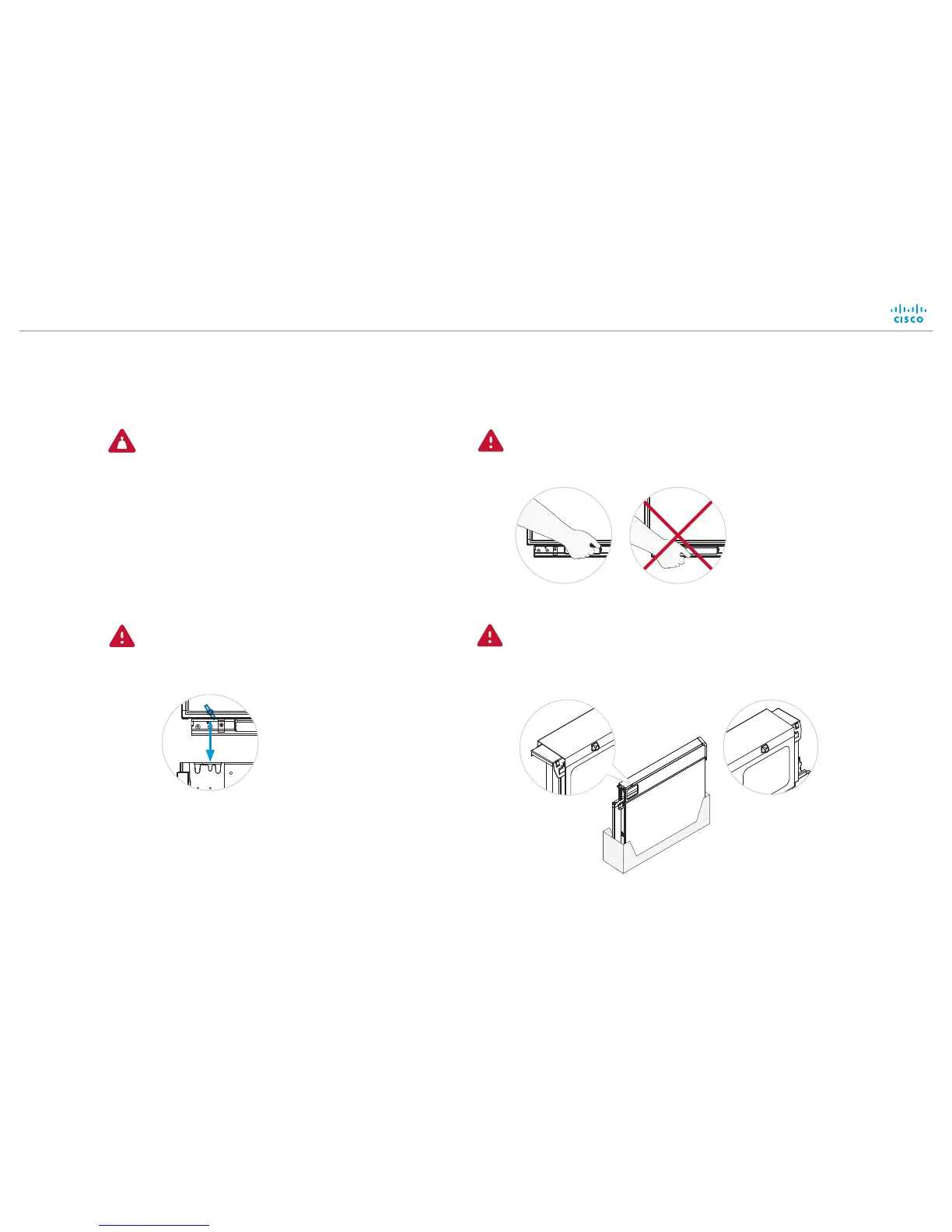

Read this before you mount the monitors
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 10
Right monitor, rearLeft monitor, rear
Use lifting handles
To avoid trapping your fingers, use the lifting
handles at the bottom of the monitor.
The screws with wing nut, which you
can see from the sides of the monitor,
must enter the center slot on each side
of the floor stand.
The monitors are heavy.
We recommend four people working
together to mount the monitors. Two
people should lift the monitor using the
handles as described below; the other
people must help stabilizing the monitor
and check that the monitor enters the
slots properly.
Applies to systems that are secured to the
wall: To assure that the camera can move
freely, fasten two bumpons on the rear of
the top profile, close to the camera.

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
