Mount camera module (page 2 of 2)
F, G
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 21

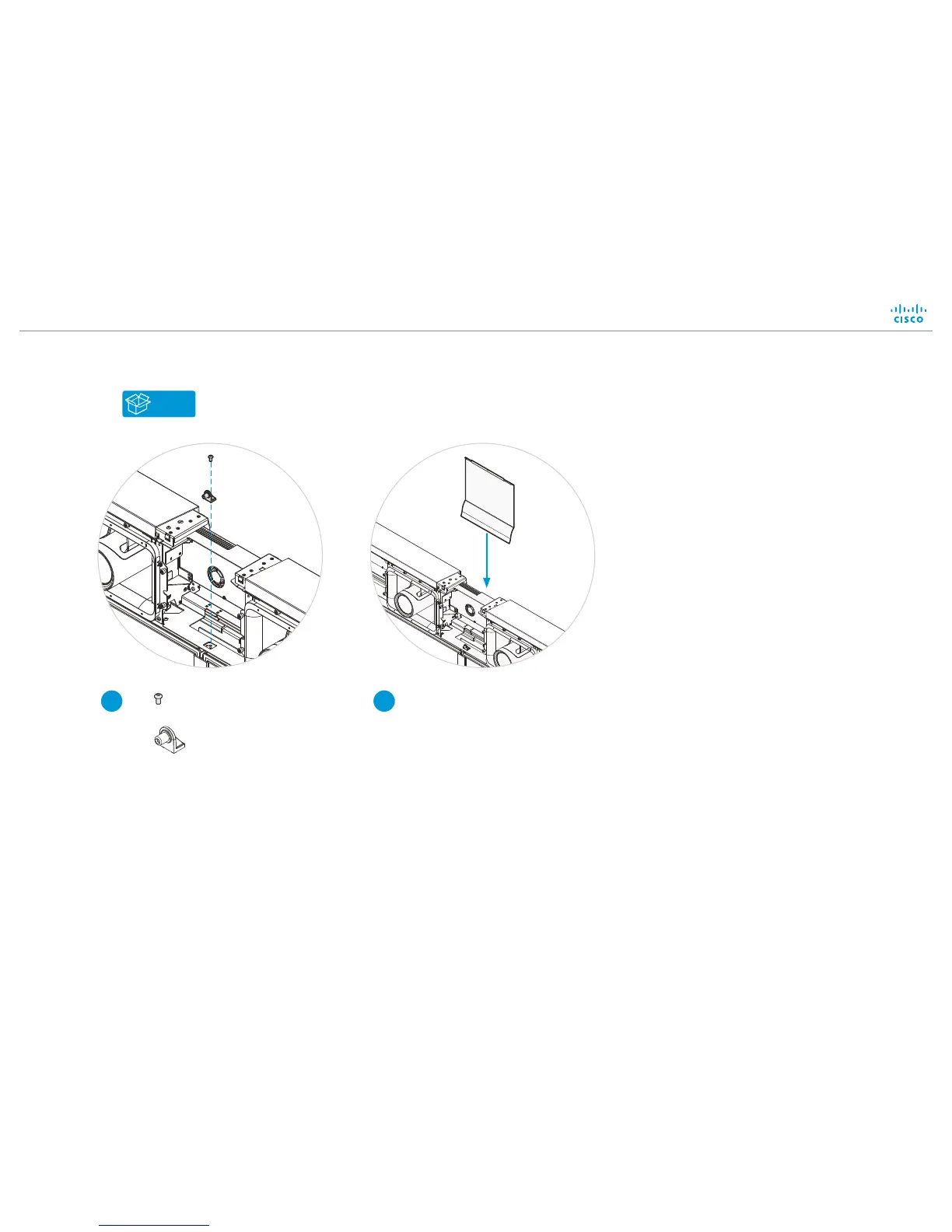

Enter the camera cover in the clips
at the bottom, and align it with the
back panels. The cover snaps to
magnets.
4 5
Fasten the speaker clip for the
center loudspeaker.
1 ×
Speaker clip
1 ×
M4x8, pan
