Part DescriptionQuantity
Rack-mount guides2
Slider rails2
Procedure
Step 1 Install the front rack-mount brackets as follows:
The port side of the FI is the rear and it faces the rear of the rack. The fan side of the FI is the front
and it faces the front of the rack. Cooling fans pull air front-to-rear. That is, air intake is on the fan
side and air exhaust is on the port side.
Note
a) Position a front rack-mount bracket against the chassis and align the screw holes as shown below. You
can attach the front rack-mount bracket at the front or the rear of the chassis, depending on which side
you want to locate on the cold aisle. Then attach the front rack-mount bracket to the chassis with four M4
screws.
You can align any four of the holes in the front rack-mount bracket to four of the six screw
holes on the side of the chassis. The holes that you use depend on the requirements of your rack
and the amount of clearance required for interface cables and power supply handles.
Note
b) Repeat Step 1 for the other front rack-mount bracket on the other side of the chassis.

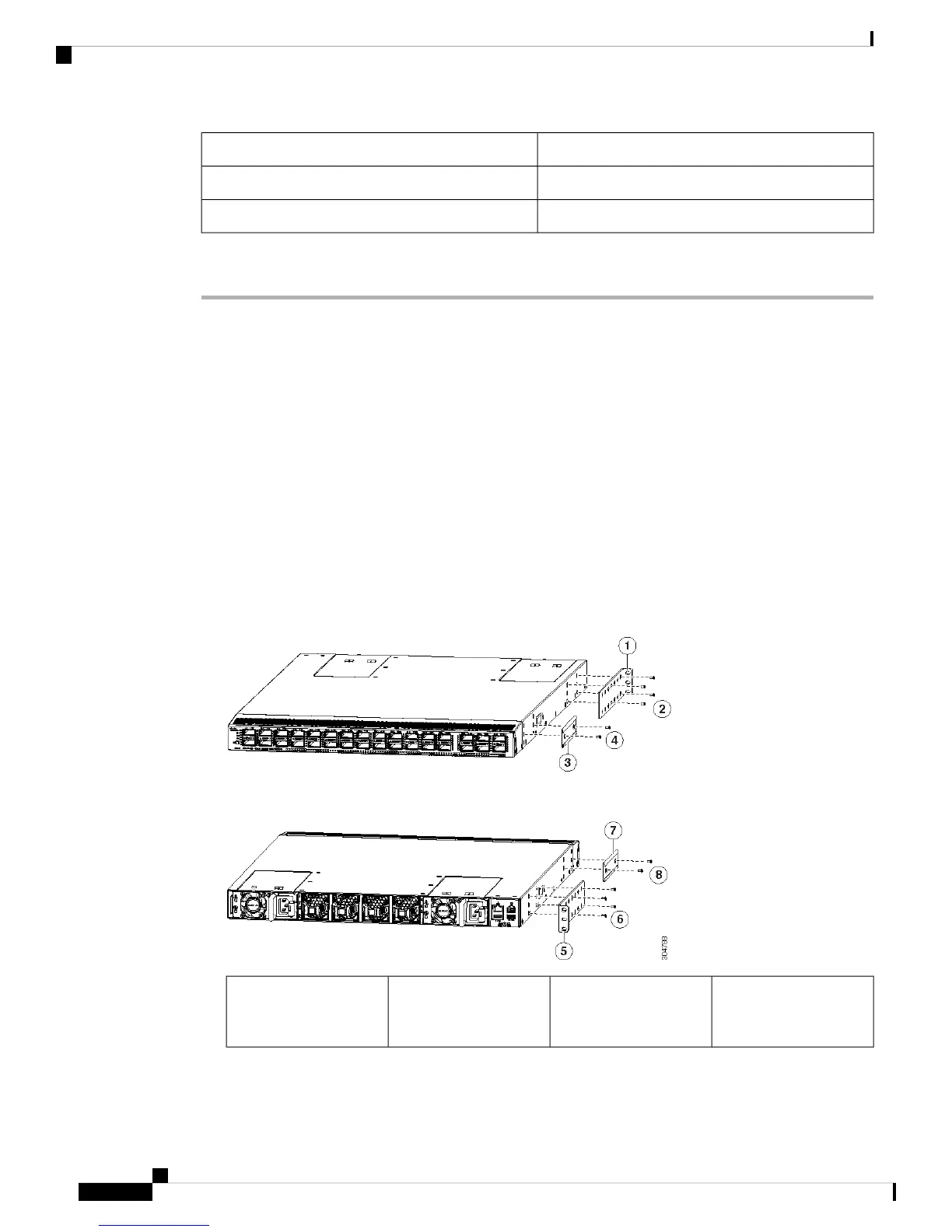

Figure 10: Attaching the Rack-Mount Brackets to the Chassis
Four M4 screws used to
attach the bracket to the
chassis
2Front rack-mount bracket
aligned to the rear of the
chassis
1
Cisco UCS 6300 Series Fabric Interconnect Hardware Installation Guide
24
Installing the Cisco UCS 6300 Series Fabric Interconnect
Installing the Cisco UCS Chassis or UCS Chassis in a Cabinet or Rack
