WattageSourceFabric InterconnectCisco PID
930 W-48 VDCCisco UCS 6332 and
Cisco UCS 6332-16UP
UCS-PSU-6332-DC
1230 W240 to 380 VDCCisco UCS 6332 and
Cisco UCS 6332-16UP
N9K-PUV-1200W

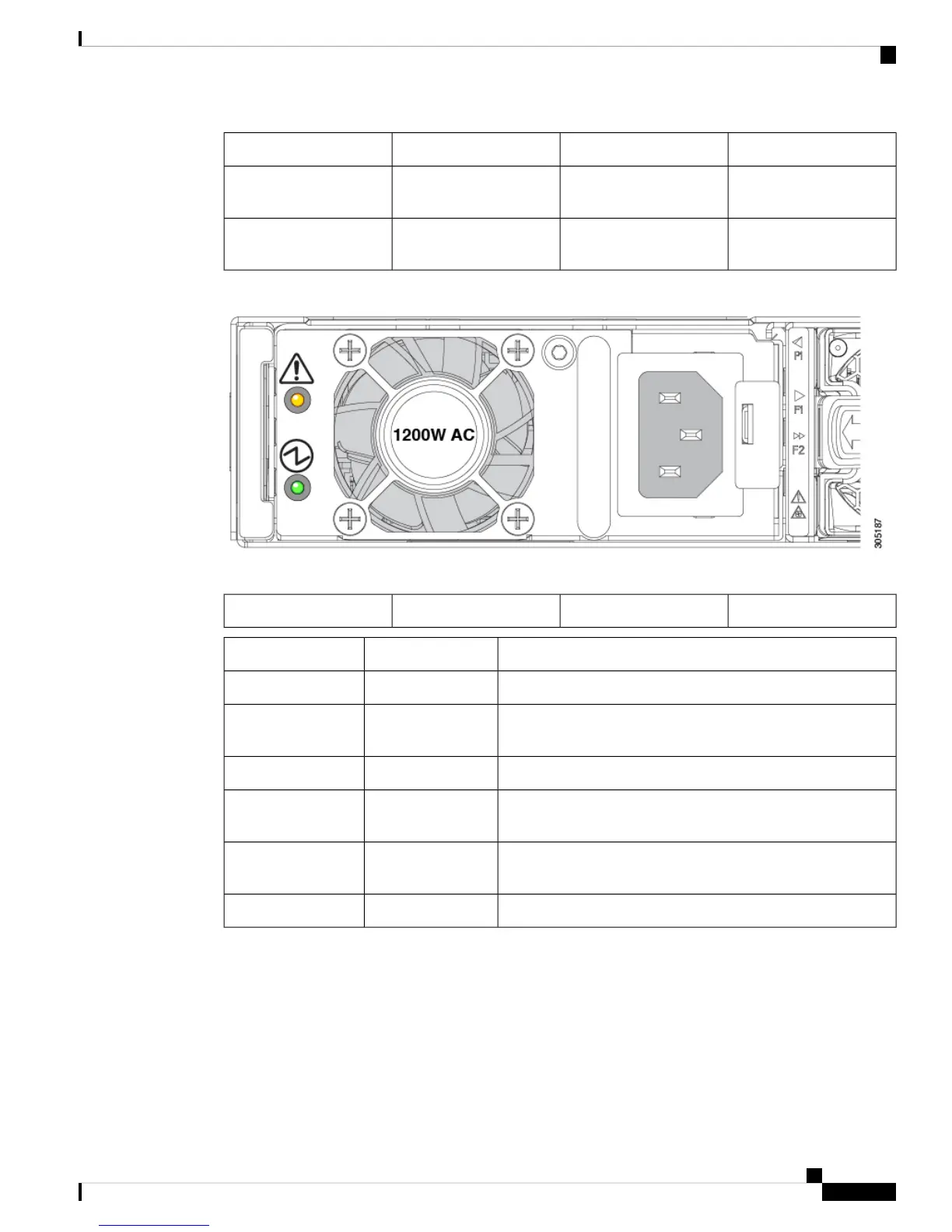

Figure 7: AC Power Supply for the Cisco UCS 6332 and UCS 6332-16UP Fabric Interconnect
Power supplies have two LEDs: one for power status and one for a failure condition.
Green power on LED2Amber fault/error LED1
DescriptionStateLED
Power supply is on and functioning properlySolid greenPower on LED
3.3 V voltage standby (VSB) is on but the power supply is not
powering the other units
Blinking greenPower on LED
There is no AC power to the power supplyOffPower on LED
Power supply failure that indicates an over voltage, over current,
or over temperature
Solid amberFault/error LED
AC power is present, 3.3 VSB is on, and the power supply is
off
Blinking amberFault/error LED
Normal operationOffFault/error LED
If one power supply is installed in the chassis, but the other power supply slot is empty, a blank filler panel
should be used to cover the empty slot.
Cisco UCS 6300 Series Fabric Interconnect Hardware Installation Guide
7
Product Overview
Power Supplies

Cisco UCS 6332 Specifications
