VGA connection for a monitor3Connector to blade server local console
connector
1
2-port USB connector for a mouse and keyboard4DB9 serial connector2
Secure Digital Cards
Secure Digital (SD) card slots are provided and one or two SD cards can be populated. If two SD cards are
populated, they can be used in a mirrored mode.
Do not mix different capacity cards in the same server.Note
The SD cards can be used to store operating system boot images or other information. Once the server has
been removed from the chassis, you can access the SD card slots by rotating the latch up so that it does not
cover the slots. Remove or insert the SD cards as needed. Either or both slots may be used. Rotate the latch
down to cover the slots before installing the server in the chassis.

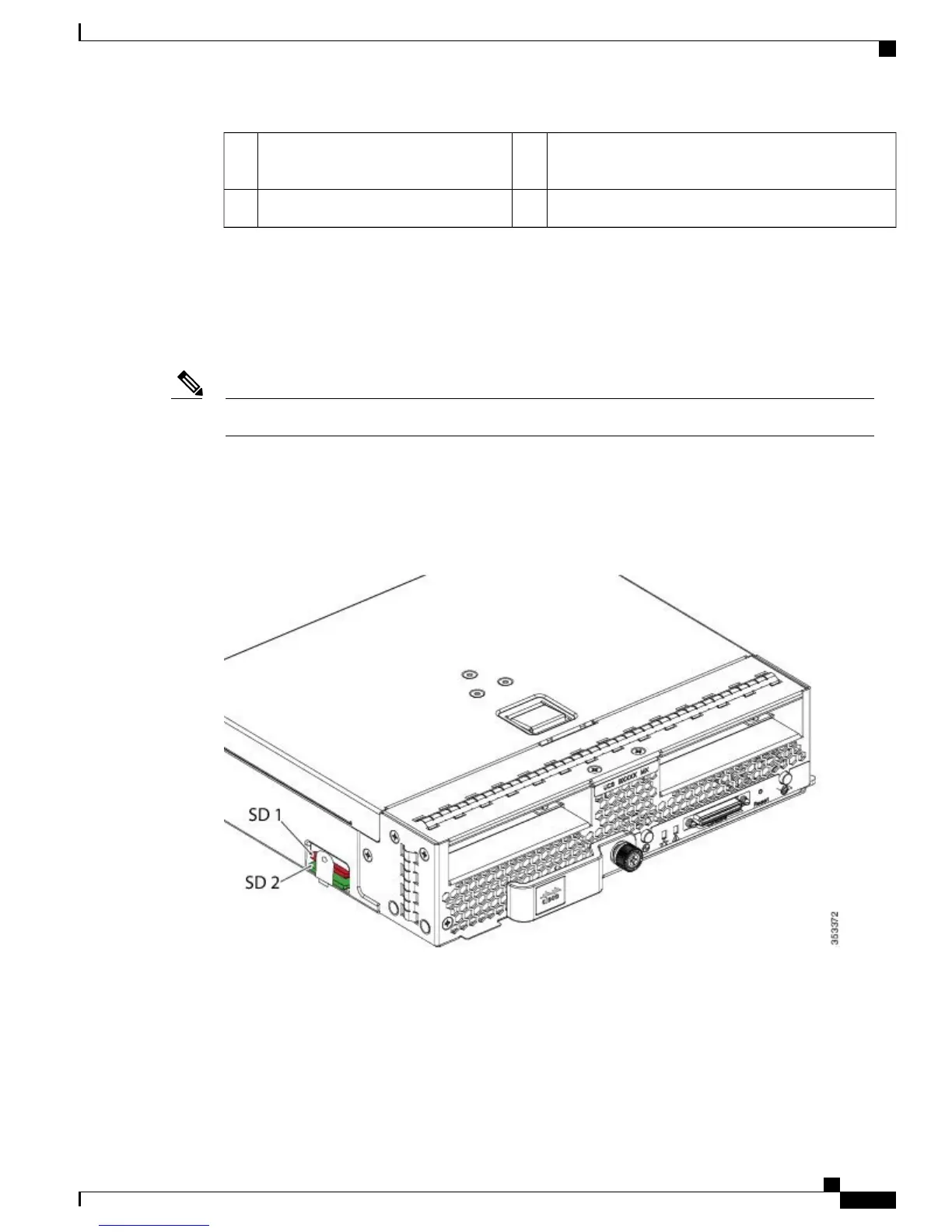

Figure 3: SD Card Slot Locations
Storage Module
The Cisco UCS B200 M4 blade server has an optional storage module that can be configured with SAS or
SATA hard drives or solid state disks (SSDs). Because the UCS B200 M4 can be used without disk drives,
Cisco UCS B200 M4 Blade Server Installation and Service Note
5
Overview
Secure Digital Cards

Cisco UCS B200 M4 Specifications

General

Tcase	72.1 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Scalability	2S
Processor code	SR206
Processor cache	20 MB
Processor cores	8
Processor model	E5-2630V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Haswell
Motherboard chipset	Intel C610
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Number of processors installed	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	24x DIMM
Internal memory	- GB
Memory clock speed	2400 MHz
Number of DIMM slots	24
Supported DIMM module capacities	64GB
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	-
Power supply	- W
Safety	UL 60950-1 No. 21CFR1040 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 2001
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 93 %
Ethernet interface type	40 Gigabit Ethernet
RAID levels	0, 1
HDD interface	SATA
Storage controller	LSI SAS3108
Total storage capacity	0 GB
Compatible memory cards	SD
Maximum storage capacity	3.2 TB
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express, Serial ATA
PCI Express slots version	3.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Heat sink	UCSB-HS-EP-M4-F=, UCSB-HS-EP-M4-R=, UCSX-HSCK=
Chassis type	Rack
Cooling type	Active
Product color	Gray
LED indicators	Network, Power
Number of fans	8 fan(s)
Processor ARK ID	83356
Intel Secure Key Technology version	1.00
PC health monitoring	LED
Sustainability certificates	Network Equipment Building Standards (NEBS)

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
