Air Baffles
The air baffles direct and improve air flow for the server components. Two identical baffles ship with each
B200 M4 server. No tools are necessary to install them, just place them over the DIMMs as shown, with the
holes in the center of the baffles aligned with the corresponding motherboard standoffs.

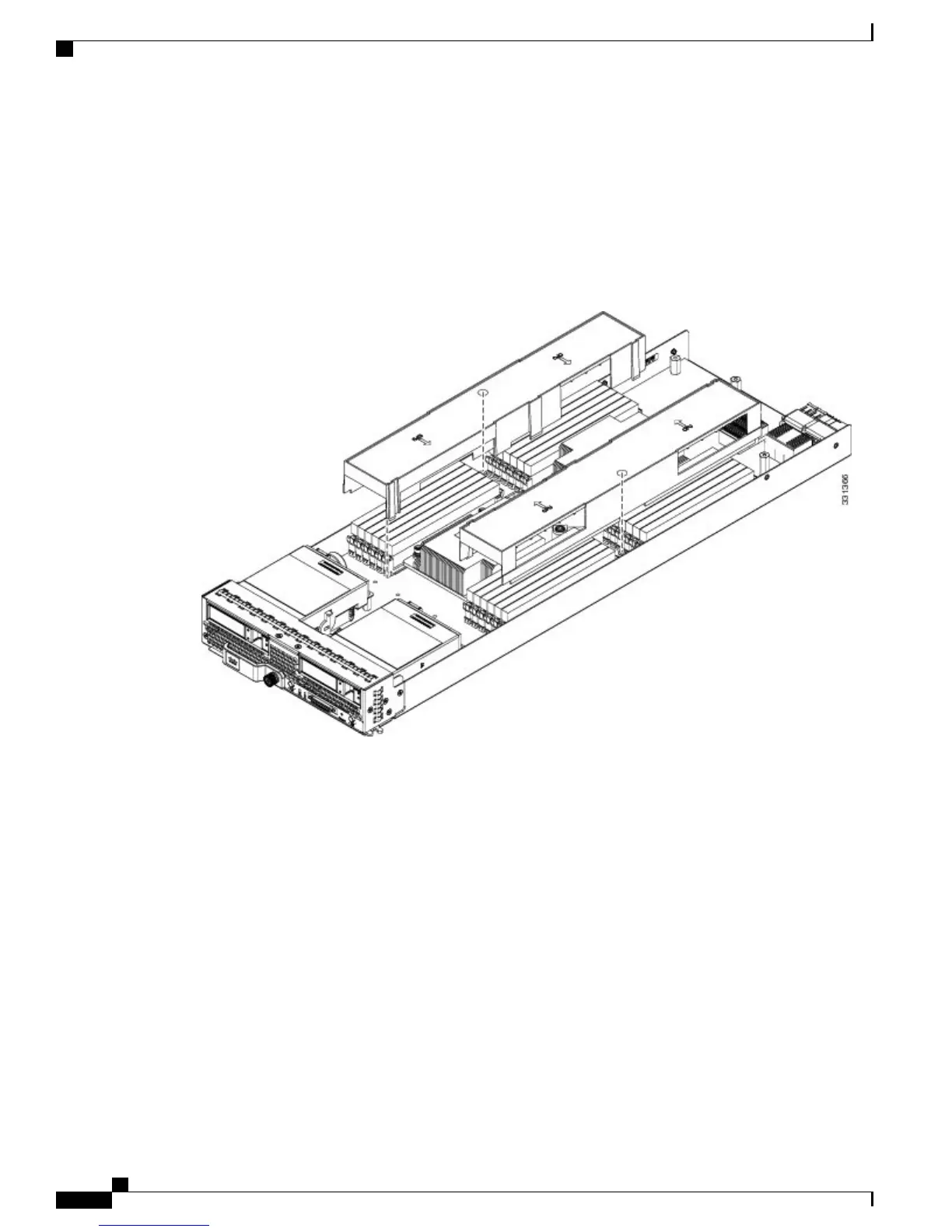

Figure 7: Cisco UCS B200 M4 Air Baffles
Cisco UCS B200 M4 Blade Server Installation and Service Note
14
Servicing a Blade Server
Air Baffles
