CHASSIS

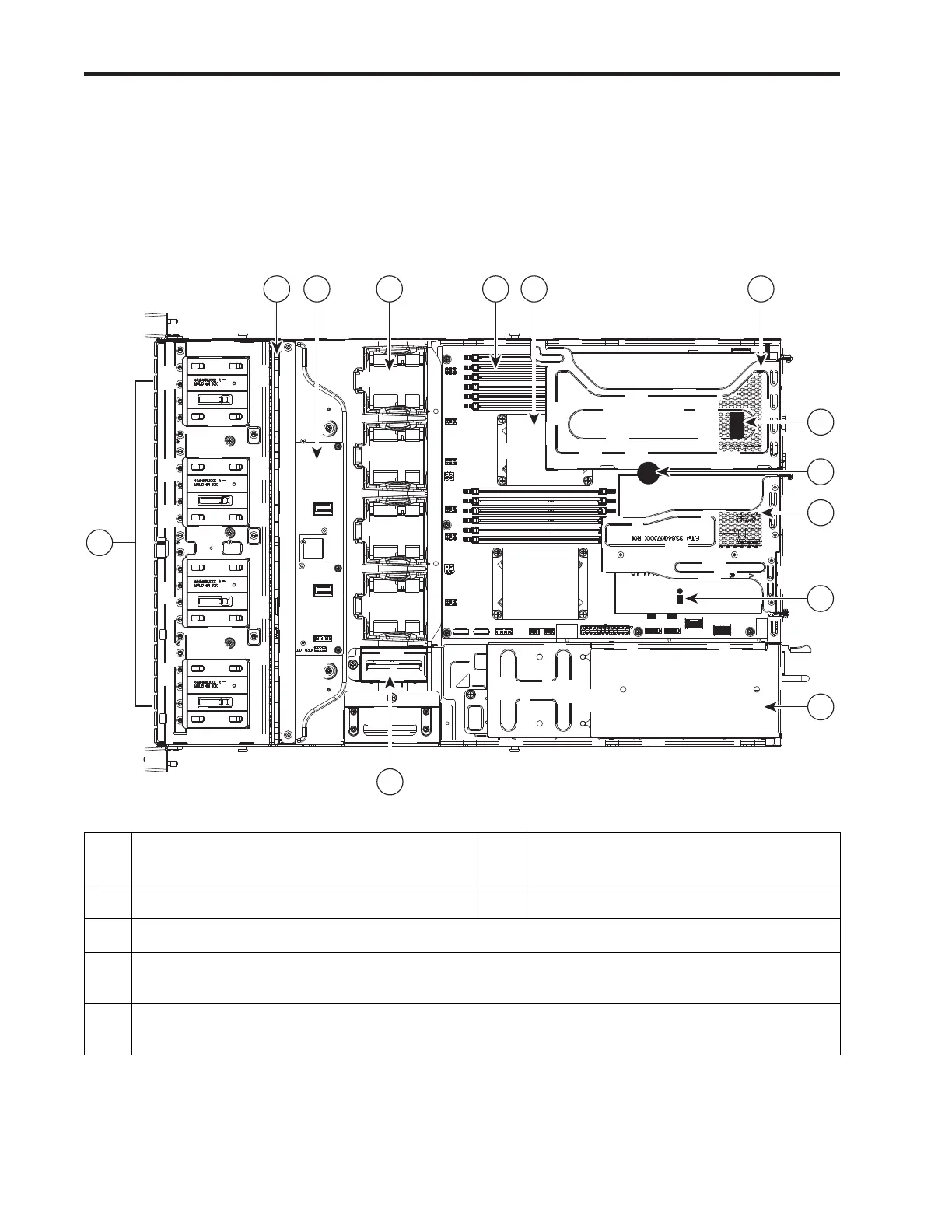

An internal view of the C24 M3 chassis with the top cover removed is shown in Figure 6.
Figure 6 C24 M3 SFF With Top Cover Off
1 Drives
(hot-swappable, accessed through front panel)
8 Internal USB 2.0 port on motherboard
2 Drive backplane 9 RTC battery on motherboard
3 SAS expander 10 PCIe riser 2 (three half-height slots)
4 Fan modules (4) 11 Trusted platform module socket on
motherboard
5 DIMM slots on motherboard (12) 12 Power supplies (two, hot-swappable
access through rear panel)
285245
Port 1
Port 0
SYS FAN1
SYS FAN2
SYS FAN3
SYS FAN4
CPU 1
CPU 2
PCIe riser 1
PCIe riser 2
PSU 1 (bottom)
PSU 2 (top)
1
2 3 5 74 6
8
12
10
9
11
13
