Cisco UCS C24 M3 High-Density SFF Rack-Mount Server
DETAILED VIEWS
5
Chassis Rear View
Figure 3 shows the external features of the rear panel.

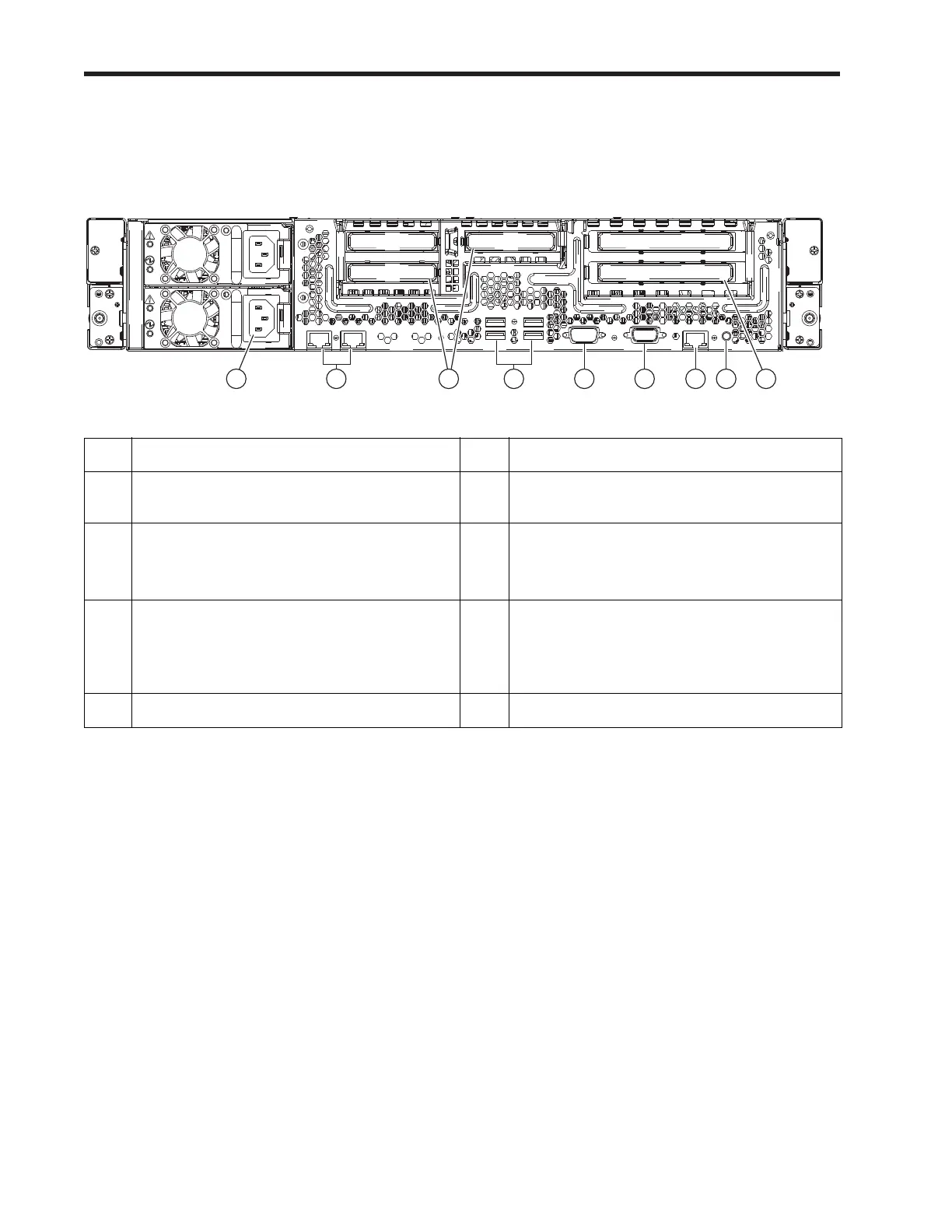

Figure 3 Chassis Rear View
1 Power supplies (two) 6 VGA video port (DB-15 connector)
2 Dual 1 Gb Ethernet ports (LAN1, LAN2) 7 10/100/1000 Ethernet dedicated
management port
3 PCIe half-height slots 3, 4, and 5 on riser 2
(x16 PCIe Gen 3 slot, x16 connector,
half-length, half-height)
8 Rear Identification button/LED
4 USB ports (4) 9 PCIe full-height slots 1 and 2 on riser 1
(x16 PCIe Gen 3 slot, x16 extended
connector (Cisco CNIC), half-length,
full-height)
5 Serial port (DB-9 connector) - -
PSU 2PSU 2PSU 2
PCIe 4
PCIe 4PCIe 4
PCIe 3PCIe 3PCIe 3 PCIe 1PCIe 1PCIe 1
PCIe 2
PCIe 2PCIe 2
PCIe 5
PCIe 5PCIe 5
PSU 1
PSU 1PSU 1
1 32 4 5 6 7 8 9
343735
