Chapter 3 Maintaining the Server
Status LEDs and Buttons
Rear Panel LEDs and Buttons
Figure 3-2 shows the rear panel LEDs and buttons. Table 3-2 defines the LED states.

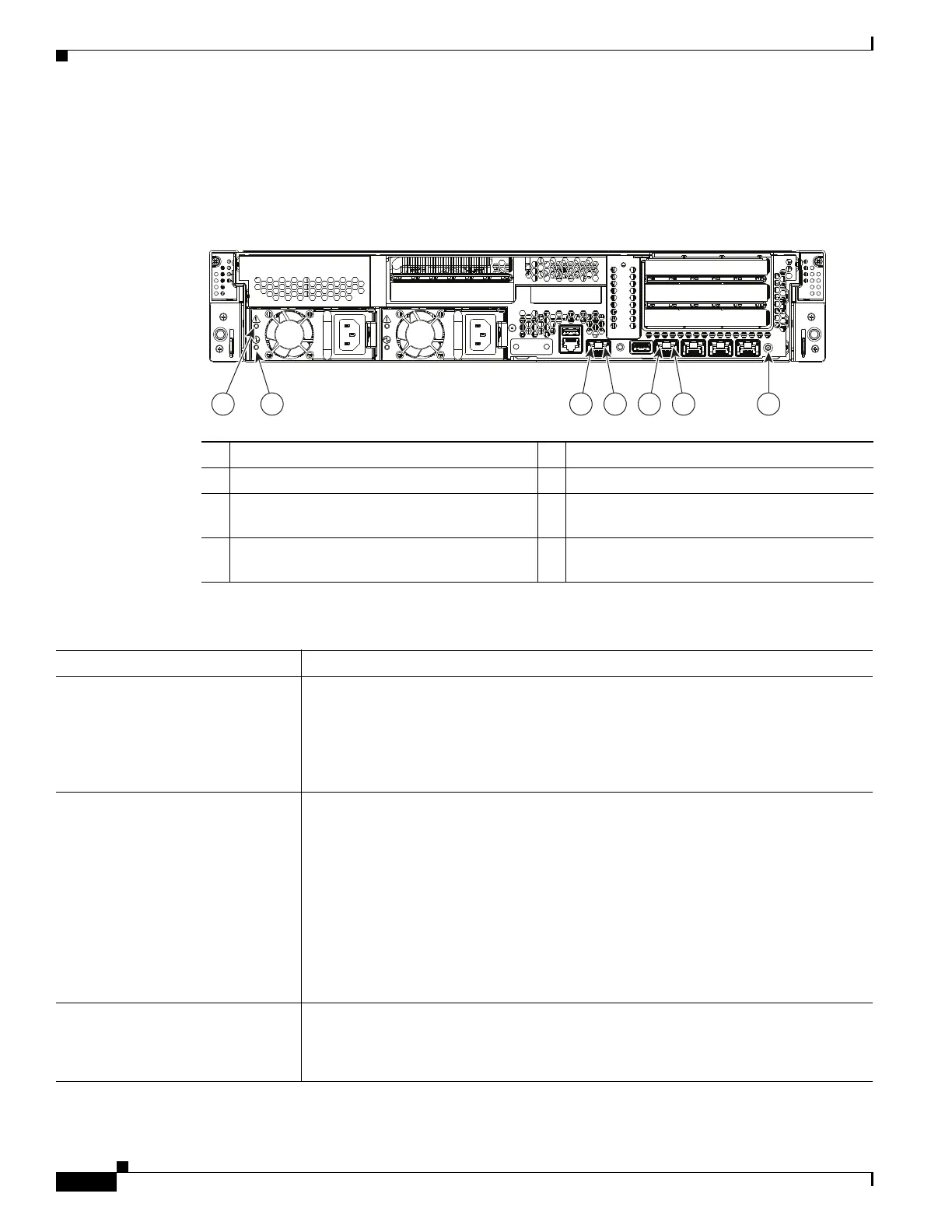

Figure 3-2 Rear Panel LEDs and Buttons
1 Power supply fault LED 5 1-Gb Ethernet link speed LED
2 Power supply AC OK LED 6 1-Gb Ethernet link status LED
3 1-Gb Ethernet dedicated management link
status LED
7 Identification button/LED
4 1-Gb Ethernet dedicated management link
speed LED
–
Table 3-2 Rear Panel LEDs, Definitions of States
LED Name State
Power supply fault
• Off—The power supply is operating normally.
• Amber, blinking—An event warning threshold has been reached, but the power
supply continues to operate.
• Amber, solid—A critical fault threshold has been reached, causing the power
supply to shut down (for example, a fan failure or an over-temperature condition).
Power supply AC OK AC power supplies:
• Off—There is no AC power to the power supply.
• Green, blinking—AC power OK, DC output not enabled.
• Green, solid—AC power OK, DC outputs OK.
DC power supplies:
• Off—There is no DC power to the power supply.
• Green, blinking—DC power OK, DC output not enabled.
• Green, solid—DC power OK, DC outputs OK.
1-Gb Ethernet dedicated
management link speed
• Off—link speed is 10 Mbps.
• Amber—link speed is 100 Mbps.
• Green—link speed is 1 Gbps.
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
3 4 5 61 2
7
331829

Cisco UCS C240 Specifications

General

Management	Cisco Integrated Management Controller (CIMC)
Form Factor	2U Rack
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch or 12 x 3.5-inch SAS/SATA HDDs or SSDs
Power Supply	Redundant hot-swappable power supplies (various wattage options)
