Cisco UCS C240 User Manual

3-38
Cisco UCS C240 Server Installation and Service Guide
OL-25761-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Replacing a PCIe Riser
Note The older PCIe risers UCSC-PCIE-RL-C240= and UCSC-PCIE-RR-C240= are compatible only with the
older version V01 chassis, and have been obsoleted. These parts have been replaced by a new single item
(UCSC-GPUKIT1-C240=), which contains left and right risers along with additional hardware to
facilitate installation of NVIDIA GPU cards. Order the new UCSC-GPUKIT1-C240= if riser
replacement is required on any version of the C240 chassis, or if a version V01 chassis must be upgraded
to support an NVIDIA GPU card. See also How to Determine Your Server Version, page 3-50.
The server contains two toolless PCIe risers for horizontal installation of PCIe cards. PCIe riser 2 also
includes two internal sockets for SD cards. See Replacing a PCIe Card, page 3-40 for specifications of
the PCIe slots on the risers.

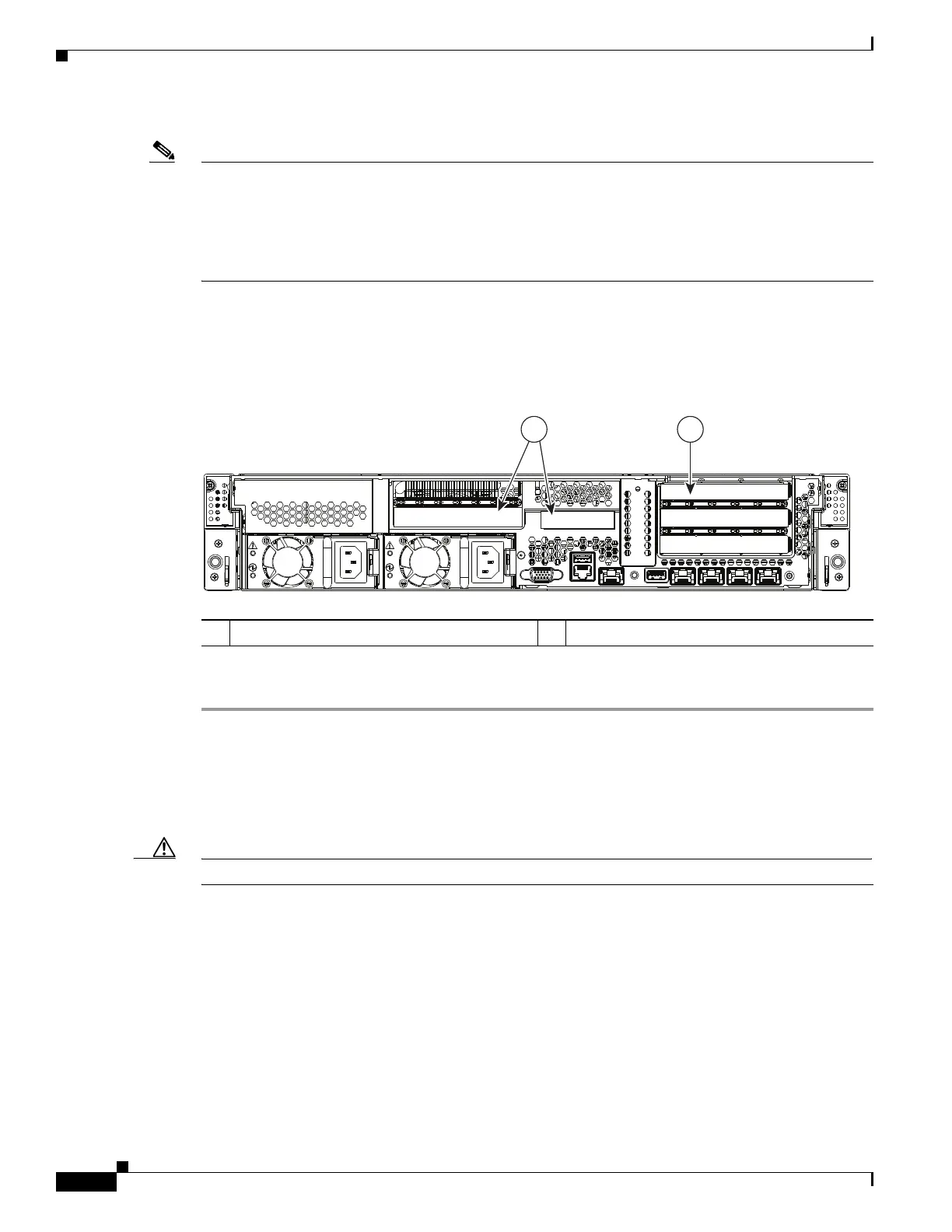

Figure 3-21 Rear Panel, Showing PCIe Slots
To install or replace a PCIe riser, follow these steps:
Step 1 Remove the PCIe riser that you are replacing (see Figure 3-20):
a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on
page 3-7.
b. Slide the server out the front of the rack far enough so that you can remove the top cover. You might
have to detach cables from the rear panel to provide clearance.
Caution If you cannot safely view and access the component, remove the server from the rack.
c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on
page 3-8.
d. Disconnect external cables from any PCIe cards that are installed in the PCIe riser.
e. Use the finger holes to lift straight up on both ends of the riser to disengage its circuit board from
the socket on the motherboard. Set the riser on an antistatic mat.
f. If the riser has a card installed, remove the card from the riser.
To remove a card, push down on the retaining clip on the hinged card retainer and then swing open
the retainer to free the rear-panel tab of the card (see Replacing a PCIe Card, page 3-40).
1 PCIe riser 1 slots (three) 2 PCIe riser 2 slots (two)
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
1
2
331841

Cisco UCS C240 Specifications

General

Management	Cisco Integrated Management Controller (CIMC)
Form Factor	2U Rack
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch or 12 x 3.5-inch SAS/SATA HDDs or SSDs
Power Supply	Redundant hot-swappable power supplies (various wattage options)
