Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Step 2 Install a new PCIe riser:
a. If you removed a card from the old PCIe riser, install the card to the new riser (see Replacing a PCIe
Card, page 3-40).
b. Position the PCIe riser over its socket on the motherboard and over its alignment slots in the chassis
(see Figure 3-22).
c. Carefully push down on both ends of the PCIe riser to fully engage its circuit board connector with
the socket on the motherboard.
d. Connect external cables to any PCIe cards installed in the riser.
e. Replace the top cover.
f. Replace the server in the rack, replace cables, and then power on the server by pressing the Power
button.

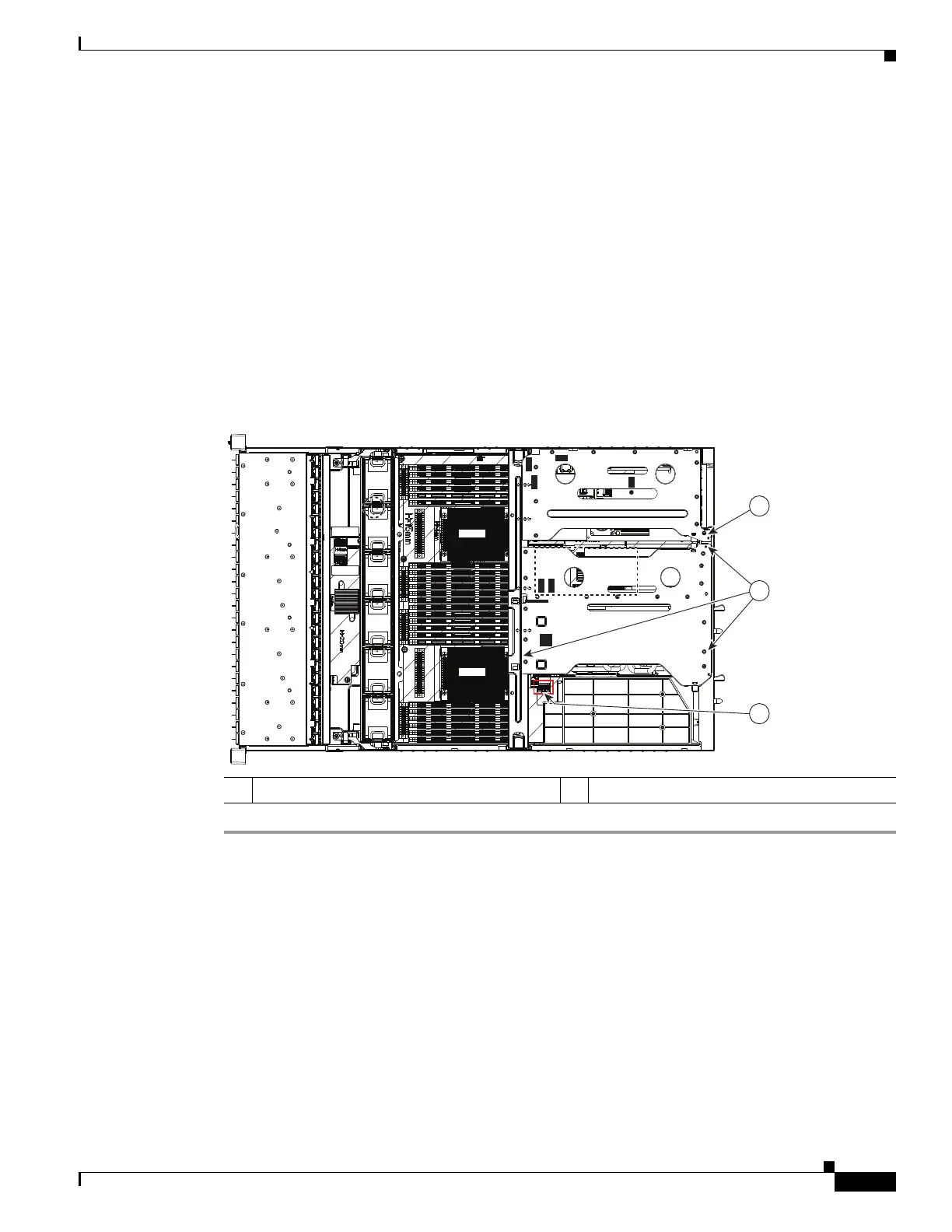

Figure 3-22 Replacing the PCIe Riser
1 PCIe riser 1 alignment slot location 2 PCIe riser 2 alignment slot locations (three)
SAS2
SAS1
FAN1
FAN2
FAN3
FAN4
FAN5
FAN6
CPU1
CPU2
SAS1
SAS2
Riser 1
Riser 2
SAS1 SAS2
1
2
331842
3

Cisco UCS C240 Specifications

General

Management	Cisco Integrated Management Controller (CIMC)
Form Factor	2U Rack
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch or 12 x 3.5-inch SAS/SATA HDDs or SSDs
Power Supply	Redundant hot-swappable power supplies (various wattage options)
