Chapter 3 Maintaining the Server
Preparing for Server Component Installation
Removing and Replacing the Server Top Cover
To remove or replace the top cover of the server, follow these steps:
Tip You do not have to remove the cover to replace hard drives or power supplies.
Step 1 Remove the top cover (see Figure 3-4).
a. Loosen the captive thumbscrew that secures the rear edge of the cover to the chassis.
b. Press the release button.
c. Using the rubber finger pads, push the top cover toward the server rear about one-half inch
(1.27 cm), until it stops.
d. Lift the top cover straight up from the server and set it aside.
Step 2 Replace the top cover:
a. Place the cover on top of the server about one-half inch (1.27 cm) behind the lip of the chassis front
cover panel. The cover should sit flat.
Note The rear of the cover has a wrap-around flanged edge that must be correctly aligned with the
chassis rear edge when sliding the cover forward.
b. Slide the top cover toward the front cover panel until it stops and the release button locks.
c. Tighten the captive thumbscrew that secures the rear edge of the cover to the chassis.

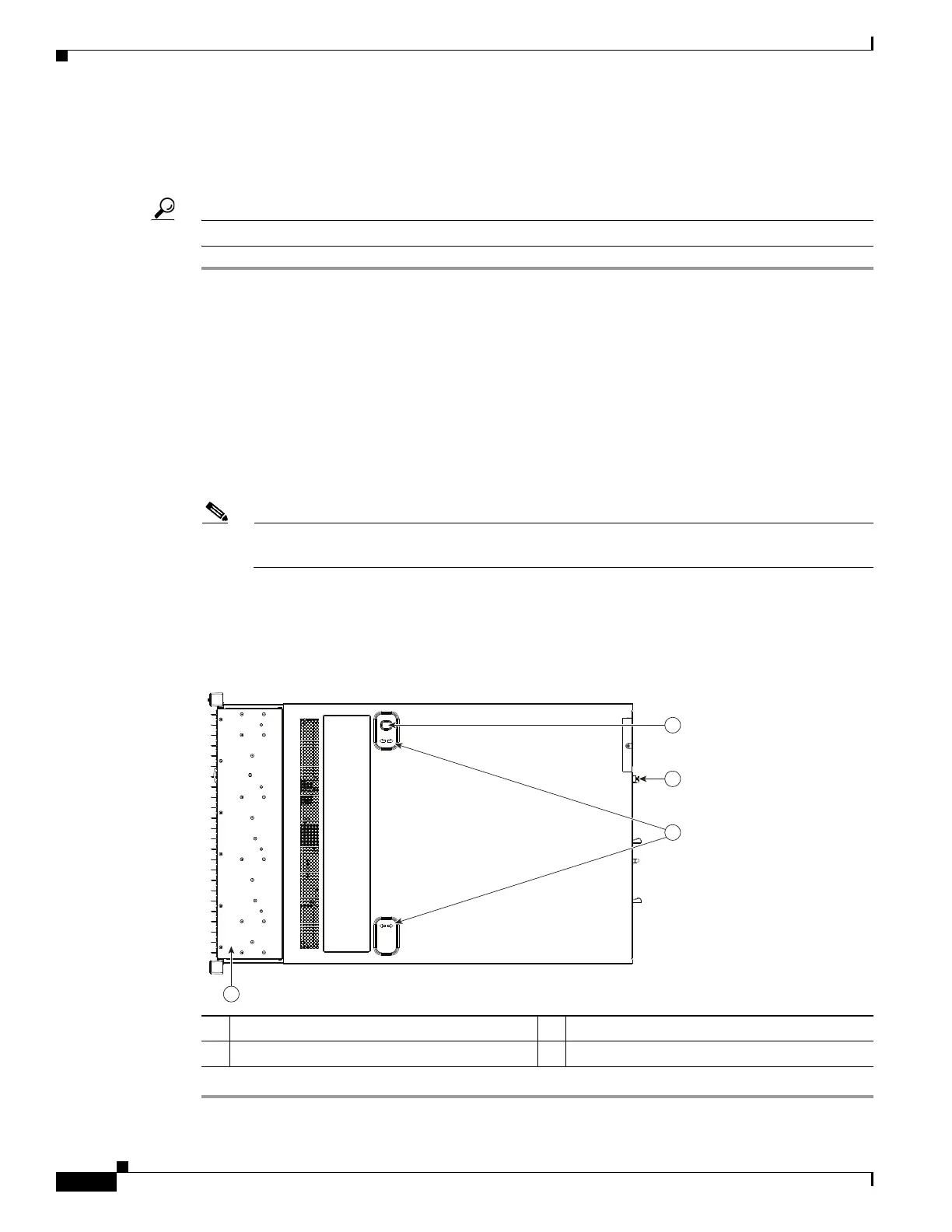

Figure 3-4 Removing the Top Cover
1 Front cover panel 3 Rubber finger pads (two)
2 Release button 4 Captive thumbscrew
1
2
4
3
331832

Cisco UCS C240 Specifications

General

Management	Cisco Integrated Management Controller (CIMC)
Form Factor	2U Rack
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch or 12 x 3.5-inch SAS/SATA HDDs or SSDs
Power Supply	Redundant hot-swappable power supplies (various wattage options)
