Connecting the VEN401 Access Point to a
Residential Gateway or Router

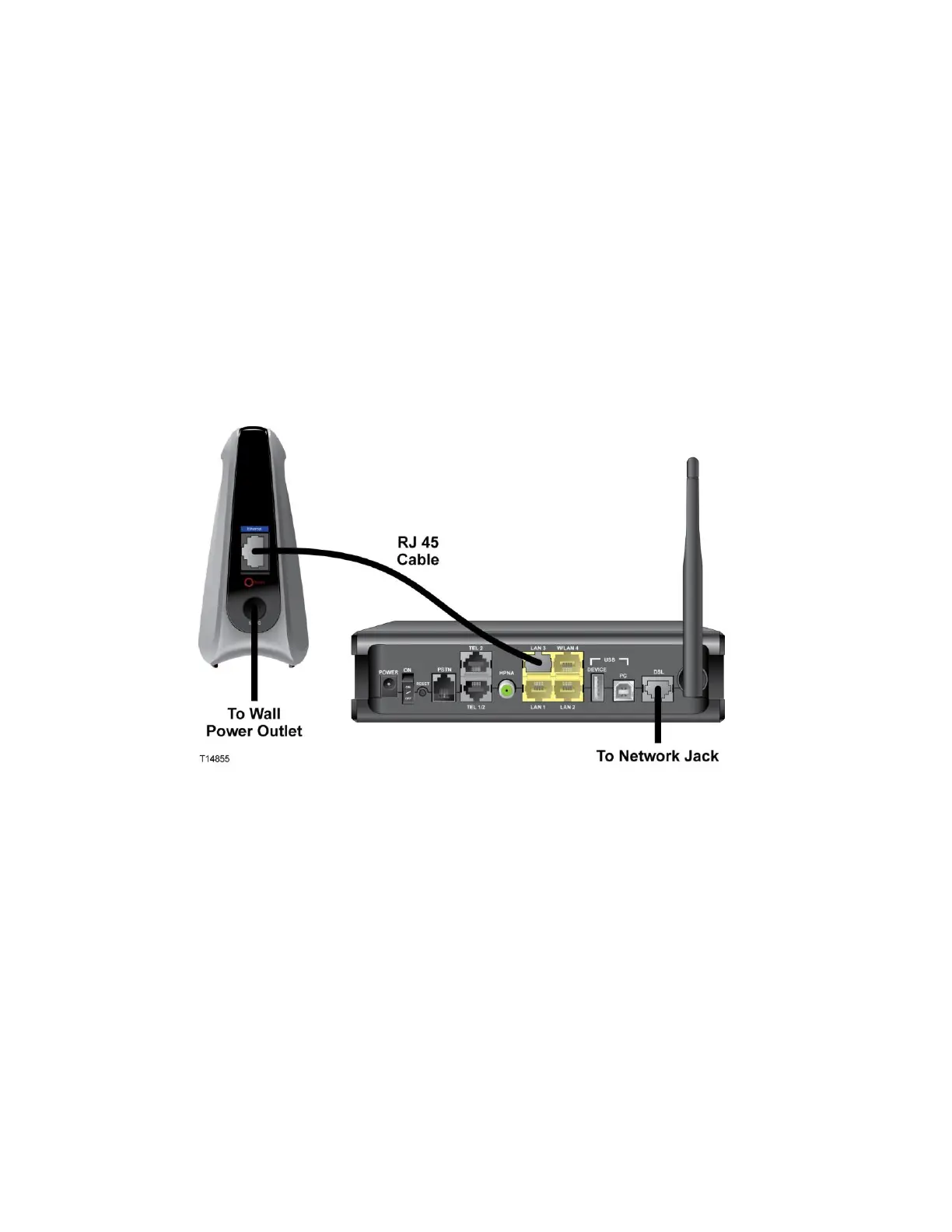

Complete the following steps to connect the VEN401 Access Point to a residential
gateway or router.
1 Connect the 12 VDC Power Supply plug to the wall power outlet. Use only the
power adapter provided with this product.
2 Connect the power jack to the power port on the VEN401.
3 Connect one end of the RJ-45 Ethernet cable to the Ethernet port on the VEN401.
4 Connect the other end of the RJ-45 Ethernet cable to an available Ethernet port on
your residential gateway or router.
