Chapter 2 Web-Based User Interface
Trace Route Parameters
Complete the following steps to execute a trace route request.
1 Enter the desired IP address or Fully Qualified Domain Name (FQDN) in the
Target IP/FQDN field. This can be either a local (LAN) or Internet (WAN) IP
address.
2 Click the Start Trace Route button. The results are displayed.

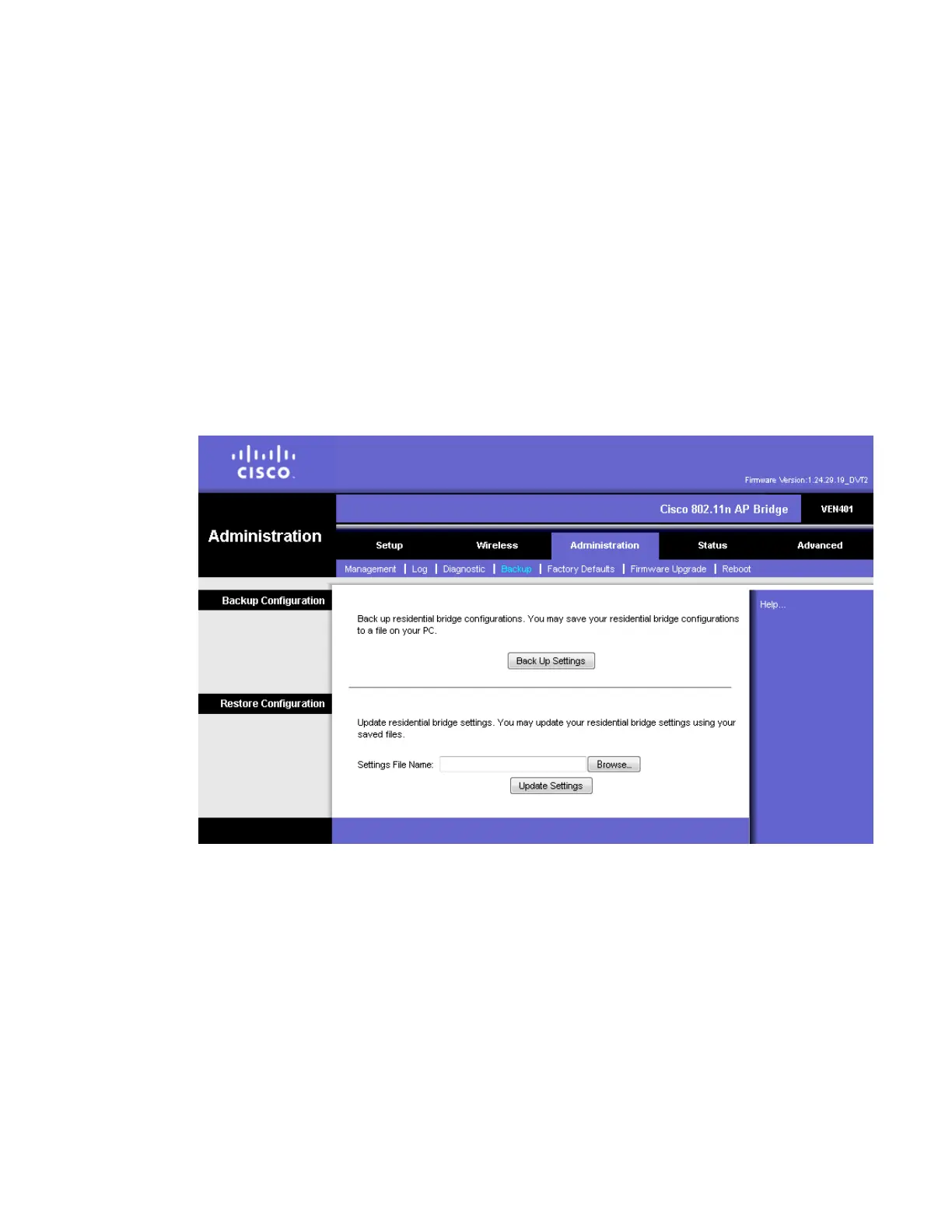

Backup Settings
The Backup screen allows you to back up or restore the device’s settings using a
configuration file.
Path: Administration > Backup
Backup Configuration
Back Up Settings—To save the device's settings in a configuration file, click this
button and follow the on-screen instructions.
Restore Configuration
To use this option, you must have previously backed up its configuration settings.
Settings File Name—Click Browse and select the device’s configuration file.
Update Settings—To restore the device’s configuration settings, click this button
and follow the on-screen instructions.
