3-17
Cisco 2900 and 3900 Series Hardware Installation
OL-18712-01
Chapter 3 Installing and Connecting the Router
Chassis Grounding

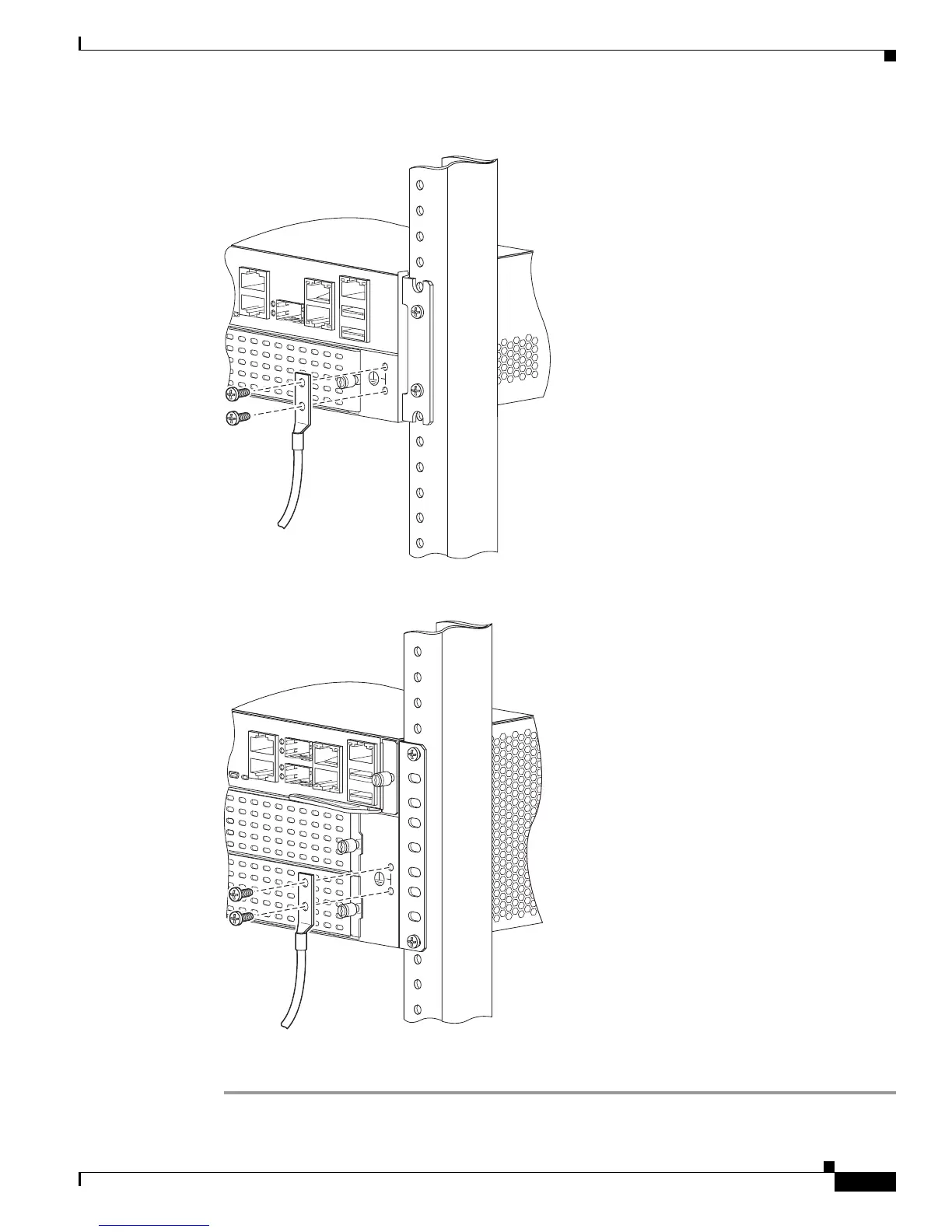

Figure 3-18 NEBS-Compliant Chassis Ground Connection on Cisco 2921 or Cisco 2951 Chassis
Figure 3-19 Chassis Ground Connection on Cisco 3900 Series Chassis
Step 4 Connect the other end of the ground wire to a known reliable earth ground point at your site.
250915
L
250929
