Citizen CLP-621 User Manual

1
Setup
12
3
2
5
4
1

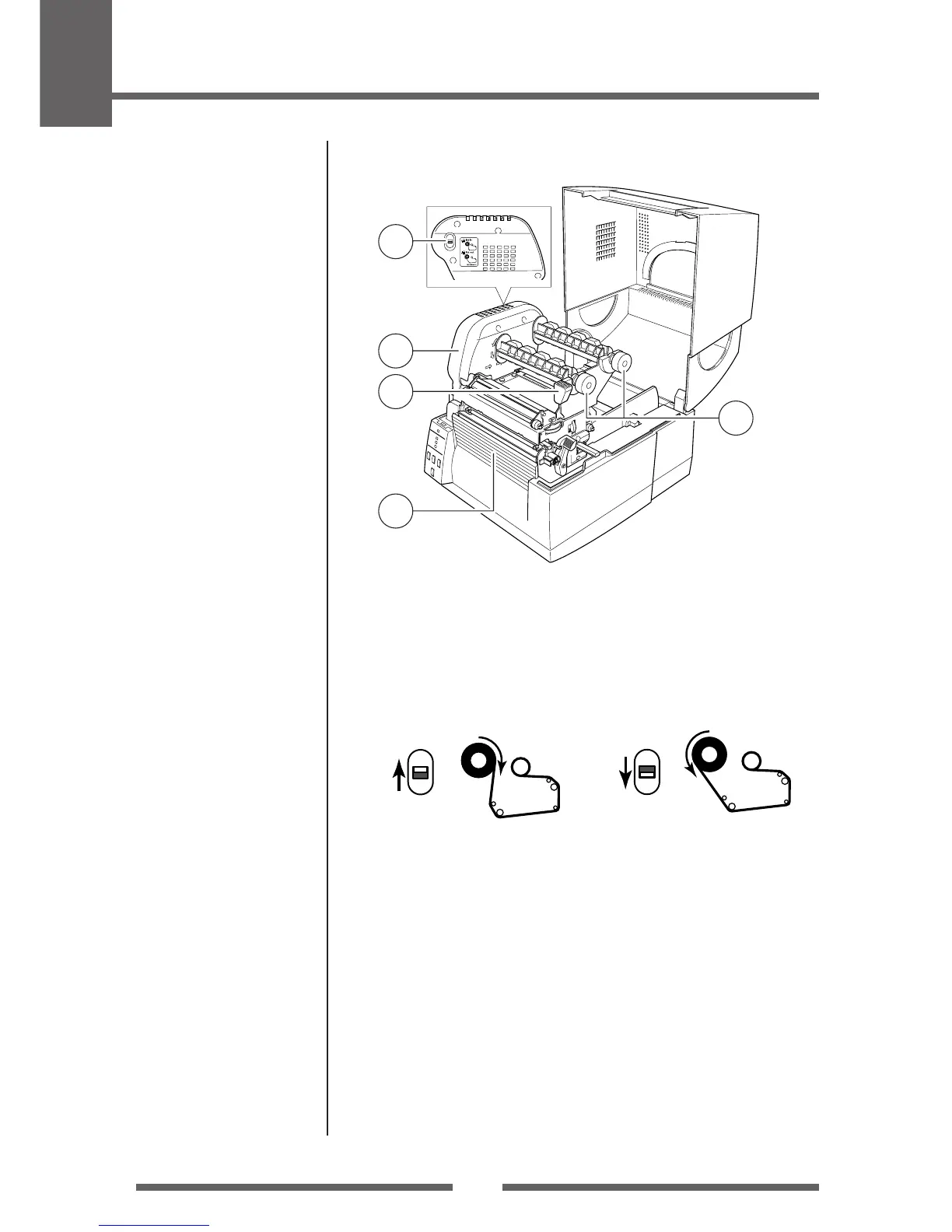

Part Names and Functions
1 Ribbon winding selection switch
This switch allows selection of inside-wound ribbons (also known as "ink
in") and outside wound ribbons ("ink out"). Remember, the inked surface
should be facing AWAY from the printhead surface!
Citizen Hint: To test which surface of the ribbon has ink on it, gently
stick a small piece of adhesive label to the surface of the ribbon.
When you remove the label, you should see ink on the adhesive label - if the
label was touching the inked surface.
2 Ribbon drive unit
3 Head close knob
Push the head close knob to lock the mechanism closed. If you push on
another part of the mechanism, the printer may not lock closed correctly.
4 Ribbon holder
It is used to attach the ribbon and paper core.
5 Front cover
It is removed to install optional units such as the peeler or cutter.
Inside the printer
• To use an inside wound ribbon,
push the switch up.
Setting the Ribbon (p.26)
• To use an outside wound ribbon,
push the switch down.

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
