Citizen CLP-621 User Manual

13
Setup
3
2
5
6
7
4
1

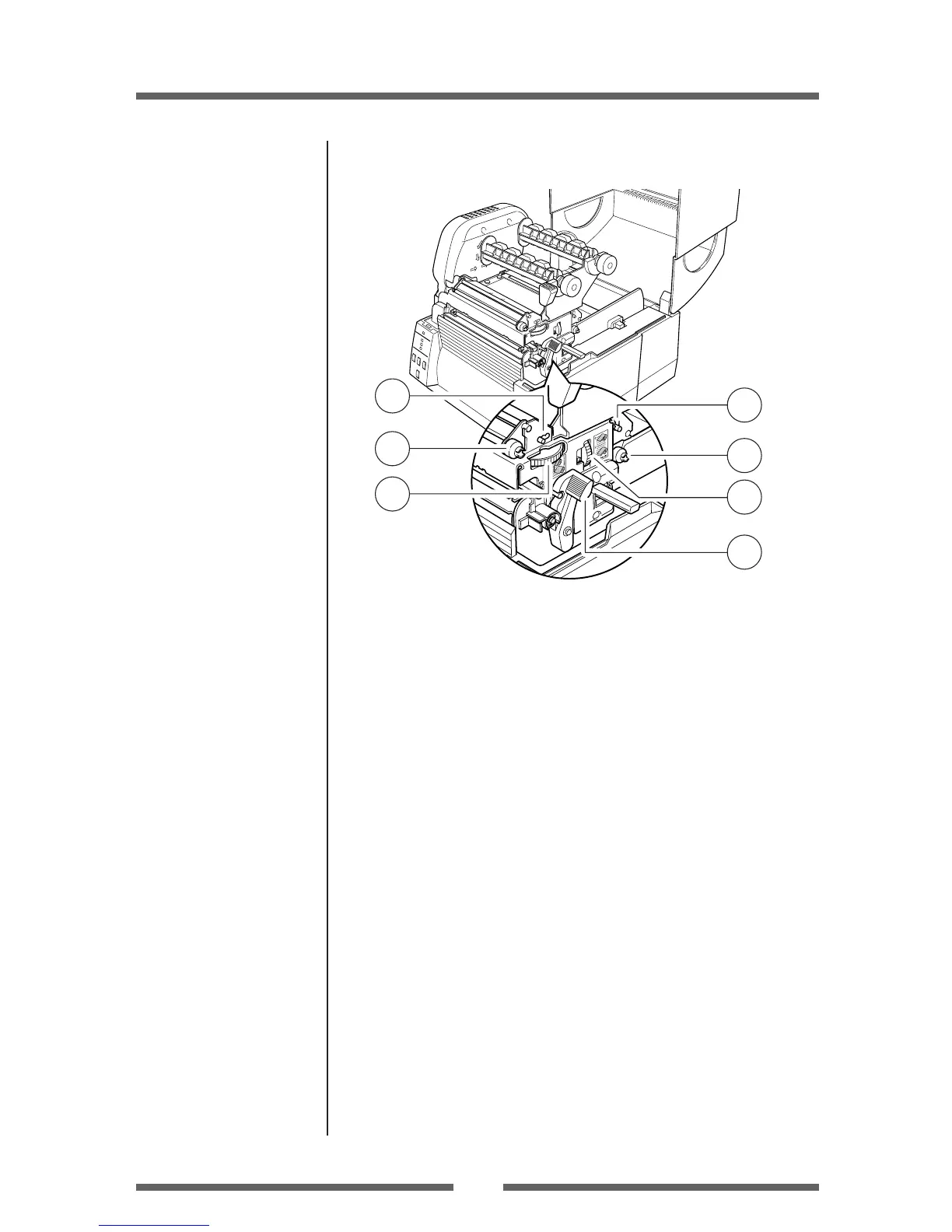

Part Names and Functions
1 Front (winding side) ribbon tension adjustment knob
This is adjusted according to the width of the ribbon that is used. It is
also used when the ribbon is wrinkled or slips.
2 Front (winding side) ribbon left-right balance adjustment knob
It is used to perform an adjustment when the ribbon is wrinkled. Normally
set it to the center position.
3 Media width adjustment dial
It is adjusted to match the width of the media.
4 Back (feeding side) ribbon tension adjustment knob
This is adjusted according to the width of the ribbon that is used. Use it
basically in the same way as the front adjustment knob.
5 Back (feeding side) ribbon left-right balance adjustment knob
It is used to perform an adjustment when the ribbon is wrinkled. Normally
set it to the center position.
6 Media thickness adjustment dial
It is adjusted to match the thickness of the media.
7 Large blue-head open lever
The head unit can be raised to install media by pushing this lever.
It locks the head unit during printing.
Media Width Adjustment
(p.43)
Media Thickness Adjustment
(p.42)
Ribbon Tension Adjustment
(p.44)
Ribbon Balance Adjustment
(p.45)
Ribbon Tension Adjustment
(p.44)
Ribbon Balance Adjustment
(p.45)

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
