CITROEN C2 2004 - Page 217

213
ENGINE

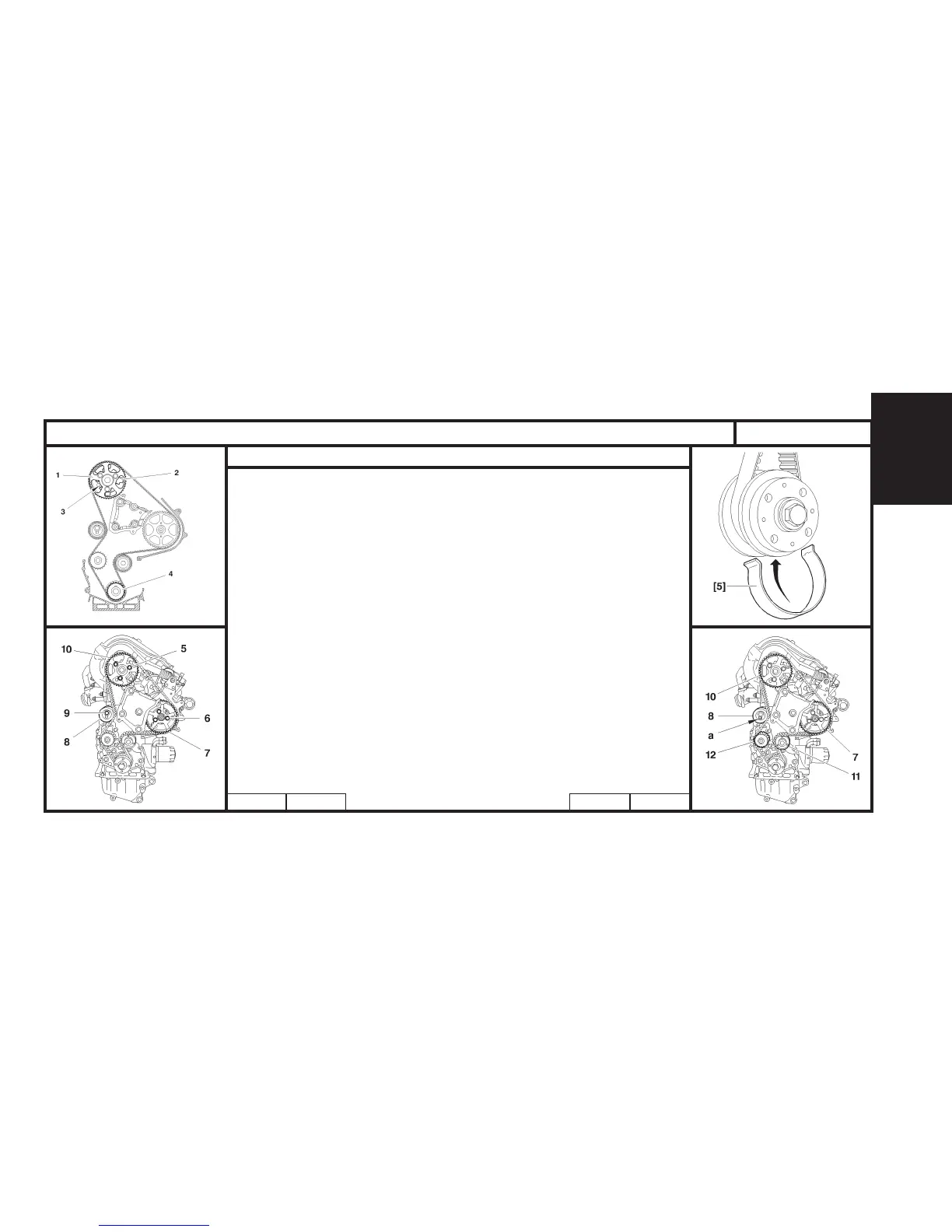

CHECKING AND SETTING THE VALVE TIMING
Engine: WJY
Setting the timing (continued).
- Peg the camshaft hub, using tool [4].
- Peg the injection pump hub, using tool [3].
- Slacken screws (5) and (6).
- Slacken screw (9) of the tensioner roller (8).
- Remove the timing belt.
Refitting.
- Retighten screws (5) and (6) by hand.
- Turn the pinions (10) and (7) clockwise in order to place them at end of slots.
- Fit the timing belt on the crankshaft.
- Hold the belt, using tool [5].
Position the timing belt in the following sequence:
- Guide roller
(11).
- Injection pump pinion (7).
- Camshaft pinion (10).
- Coolant pump pinion (12).
- Tensioner roller (8).
B1EP16PD
B1EP1EDC
B1EP132C
XSARA
B1EP1EEC
