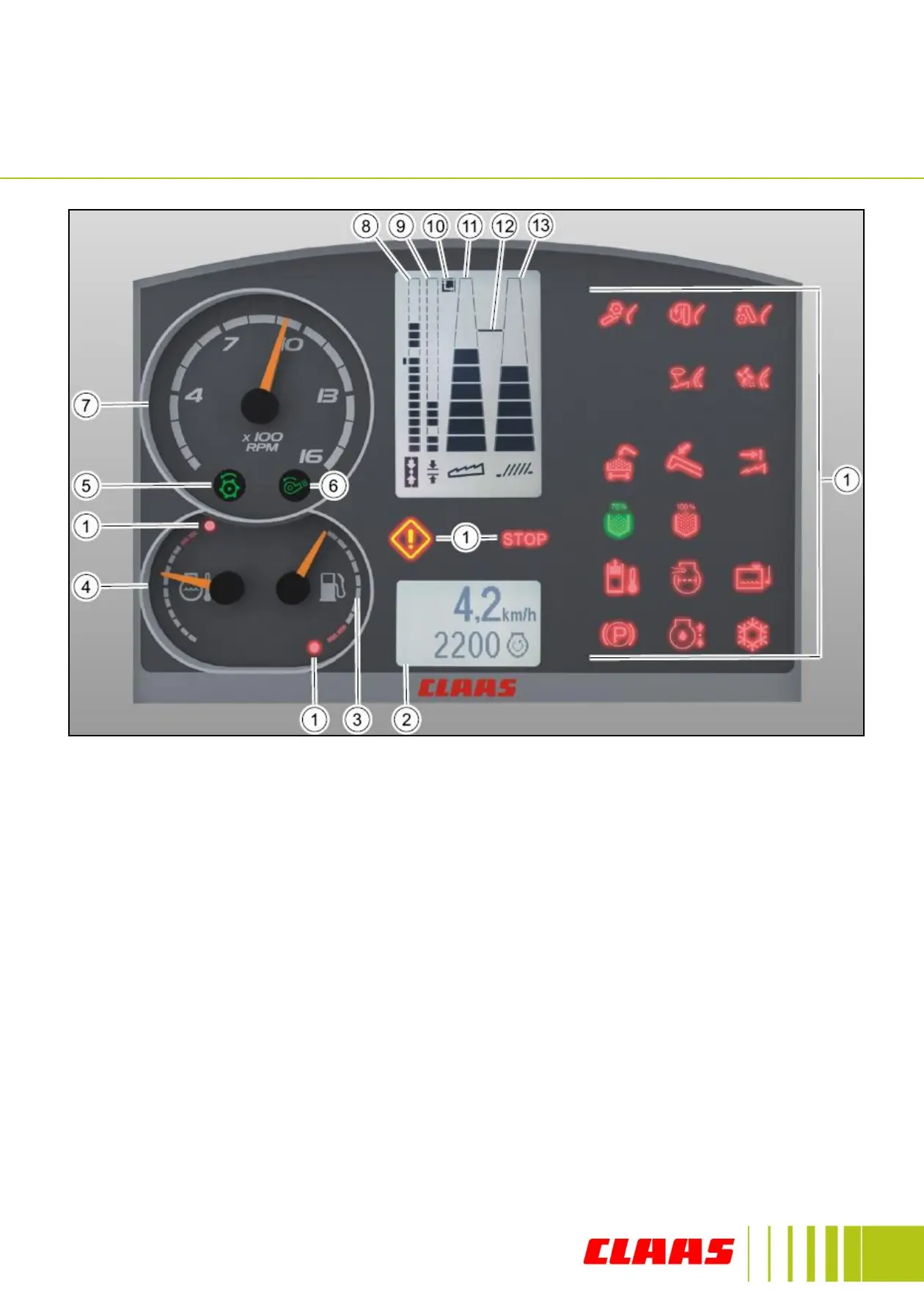

CIS – Display Screen
1 Fault or warning messages
2. Display window (forward speed, operating hours, faults)
3. Fuel level
4. Engine coolant temperature
5. Drum speed is displayed
6. Fan speed is displayed
7. Speed gauge for drum/fan
8. Cutterbar ground pressure
9. Cutting height
10. Area counter
11. Straw walker losses
12. Performance monitor 70% mark
13. Sieve losses
