WS1CI & WS1.25CI Manual Page 15
STEP 1CS
OEM Cycle Sequence
OEM Cycle Sequence instructions allows the OEM to set the order
of the cycle. The OEM Softener System Setup or the OEM Filter
System Setup allow the OEM to set how long cycles will last. The
OEM may choose up to 9 cycles in any order.
END must be used as the last cycle option. The SERVICE cycle
should only be used in brine prefi ll applications. See tables 3 and 4 for examples of typical softener or fi lter cycle sequences.
Prior to selecting dn brine or uP brine or not selecting a regenerant cycle direction, verify the correct valve body, main piston,
regenerant piston, and stack are being used, and that the injector or injector plug(s) are in the correct locations. See Compliance
Table in Service Instructions under Injector Cap, Screen, Injector Plug and Injector section and Figure 6.
The following is an example of how to set a valve so that when regeneration is initiated BACKWASH occurs fi rst, dn BRINE occurs
second, RINSE occurs third, and FILL occurs fourth.
➟ ➟
STEP 3CS
➟
STEP 4CS
➟
STEP 5CS
➟
STEP 2CS
Cycle Options
BACKWASH DN BRINE FILL
END
RINSE UP BRINE
(WS1CI ONLY)
SOFTENING
OR FILTERING

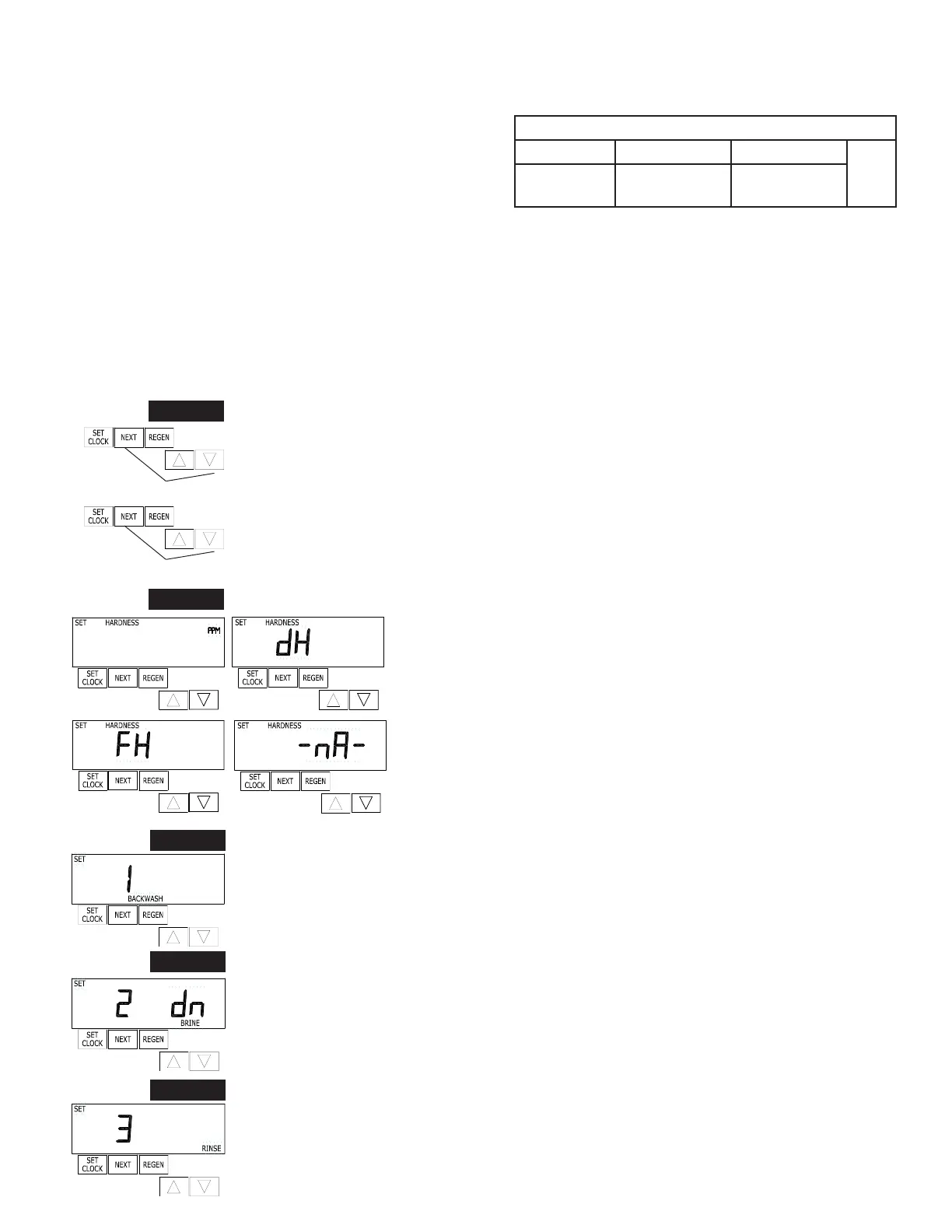

Step 1CS – Press NEXT and ▼ simultaneously for 3 seconds and release. Then press NEXT and ▼
simultaneously for 3 seconds and release. If screen in Step 2CS does not appear in 5 seconds the lock on
the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in sequence, then press NEXT and
▼ simultaneously for 3 seconds and release. Then press NEXT and ▼ simultaneously for 3 seconds and
release.
Step 2CS – Determine the measurement to calculate volumetric capacity.
The choices are:
ppm parts per million
FH French degrees
dH German degrees
-nA- Using -nA- will allow the OEM to directly place the volume of
water treated in place of system capacity in the OEM Softener
System Setup level.
NOTE: If control is going to be used in a fi lter application any of these
settings can be used.
Press NEXT to go to Step 3CS.
Step 3CS – Press the ▼ or ▲ buttons until BACKWASH appears. Press NEXT to go to Step 4CS.
Press REGEN to exit OEM Cycle Sequence.
Step 4CS - Press the ▼ or ▲ buttons until dn BRINE appears. Prior to selecting dn brine or uP brine
or not selecting a regenerant cycle direction, verify the correct valve body, main piston, regenerant
piston, and stack are being used, and that the injector or injector plug(s) are in the correct locations. See
Compliance Table in Service Instructions under Injector Cap, Screen, Injector Plug and Injector section
and Figure 6. Press NEXT to go to Step 5CS. Press REGEN to return to previous step.
Step 5CS - Press the ▼ or ▲ buttons until RINSE appears. Press NEXT to go to Step 6CS.
Press REGEN to return to previous step.
