Page 40 WS1CI & WS1.25CI Manual

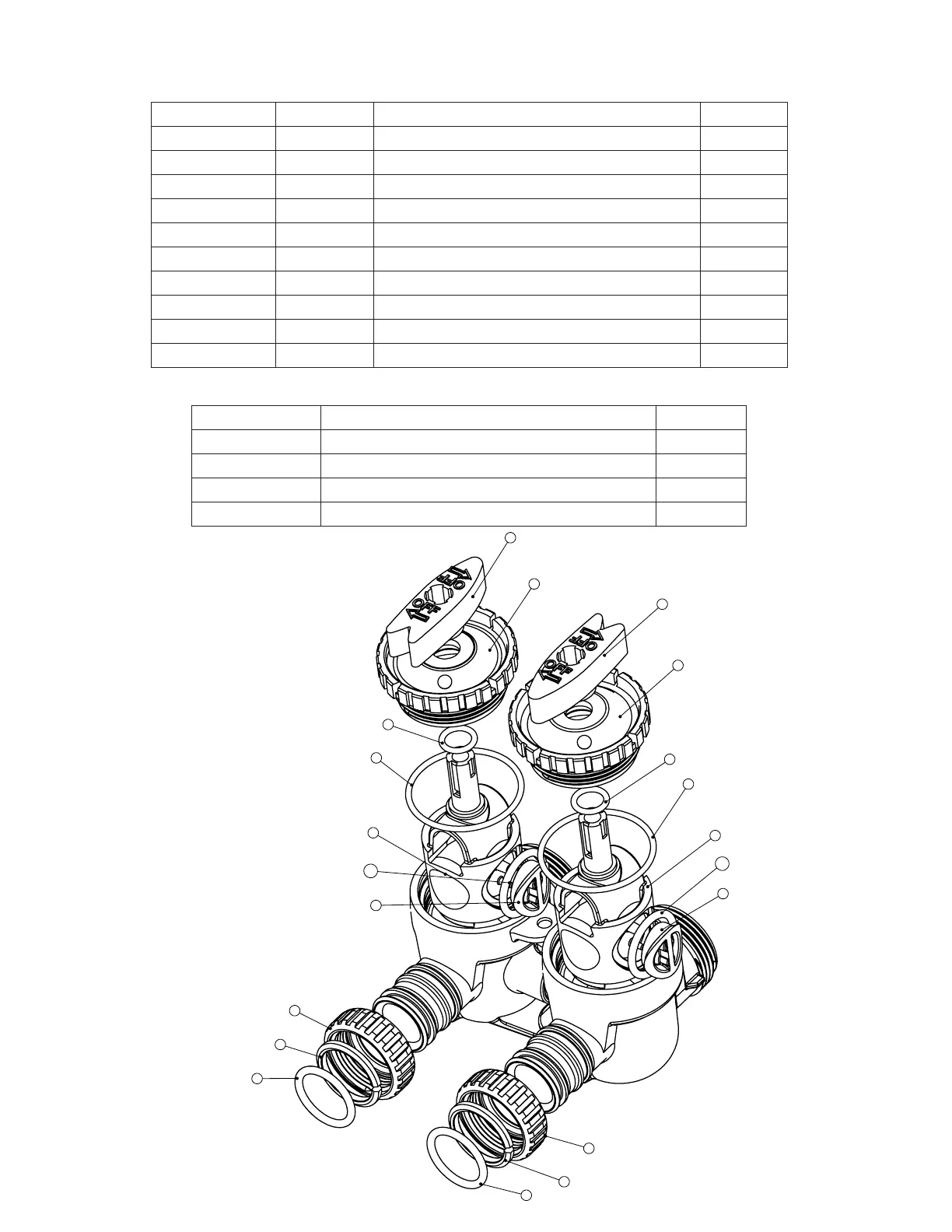

Bypass Valve
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3145 WS1 Bypass 1” Rotor 2
5 V3146 WS1 Bypass Cap 2
6 V3147 WS1 Bypass Handle 2
7 V3148 WS1 Bypass Rotor Seal Retainer 2
8 V3152 O-ring 135 2
9 V3155 O-ring 112 2
10 V3156 O-ring 214 2
(Not Shown) Order No. V3191-01, Description: WS1 Bypass Vertical Adapter Assembly
Order No. Description Quantity
V3151 WS1 Nut 1” Quick Connect 2
V3150 WS1 Split Ring 2
V3105 O-Ring 215 2
V3191 WS1 Bypass Vertical Adapter 2
